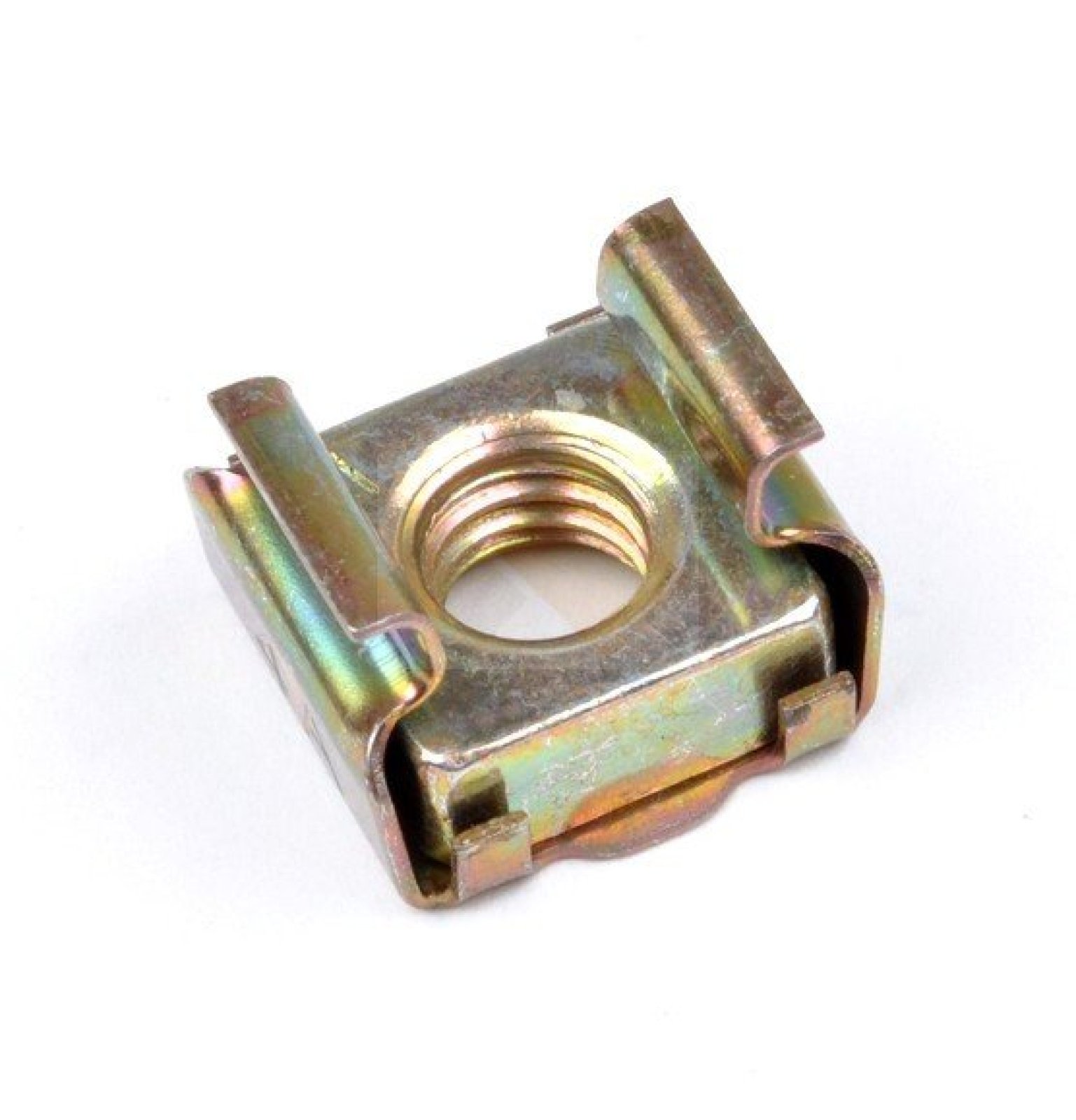

What is a cage nut?

A cage nut is a special type of nut placed in a square housing. This housing ensures that the nut does not rotate when tightening the bolt, which makes assembly considerably easier. Cage nuts are known for their strength and ability to withstand heavy loads.

Applications of the Cage Nut SMG A M10

This specific cage nut is designed for use with M10 bolts and is suitable for sheet thicknesses from 1.8 to 2.6 mm. This makes it a versatile choice for various applications, including:

• Fastening components in server cabinets and electrical equipment.
• Mounting parts in the automotive sector.
• General construction applications where reliable fastening is required.

Specifications of the Cage Nut SMG A M10

• Thread diameter: M10
• Suitable sheet thickness: 1.8 - 2.6 mm
• Material: Spring steel
• Surface treatment: Electrolytically galvanized
• Dimensions:
• a: 16.6 mm
• b: 16 mm
• c: 7.8 mm
• g: 12.1 mm
• s: 0.6 mm

Advantages of the Cage Nut SMG A M10

• Easy installation: Thanks to the square housing and the spring tabs, the cage nut can be easily clamped into square holes of the rails, without the need for special tools.
• High load capacity: The construction ensures a strong fastening that can withstand heavy weight loads.
• Corrosion resistant: The electroplated finish provides protection against corrosion, which extends the lifespan of the nut.

Why choose the Cage Nut SMG A M10?

When choosing fastening materials, reliability is essential. The Cage Nut SMG A M10 not only offers a strong and durable fastening, but is also easy to install and suitable for various applications. Whether you are working on a server cabinet, a car, or another project, this cage nut ensures a reliable connection that can withstand heavy loads.
