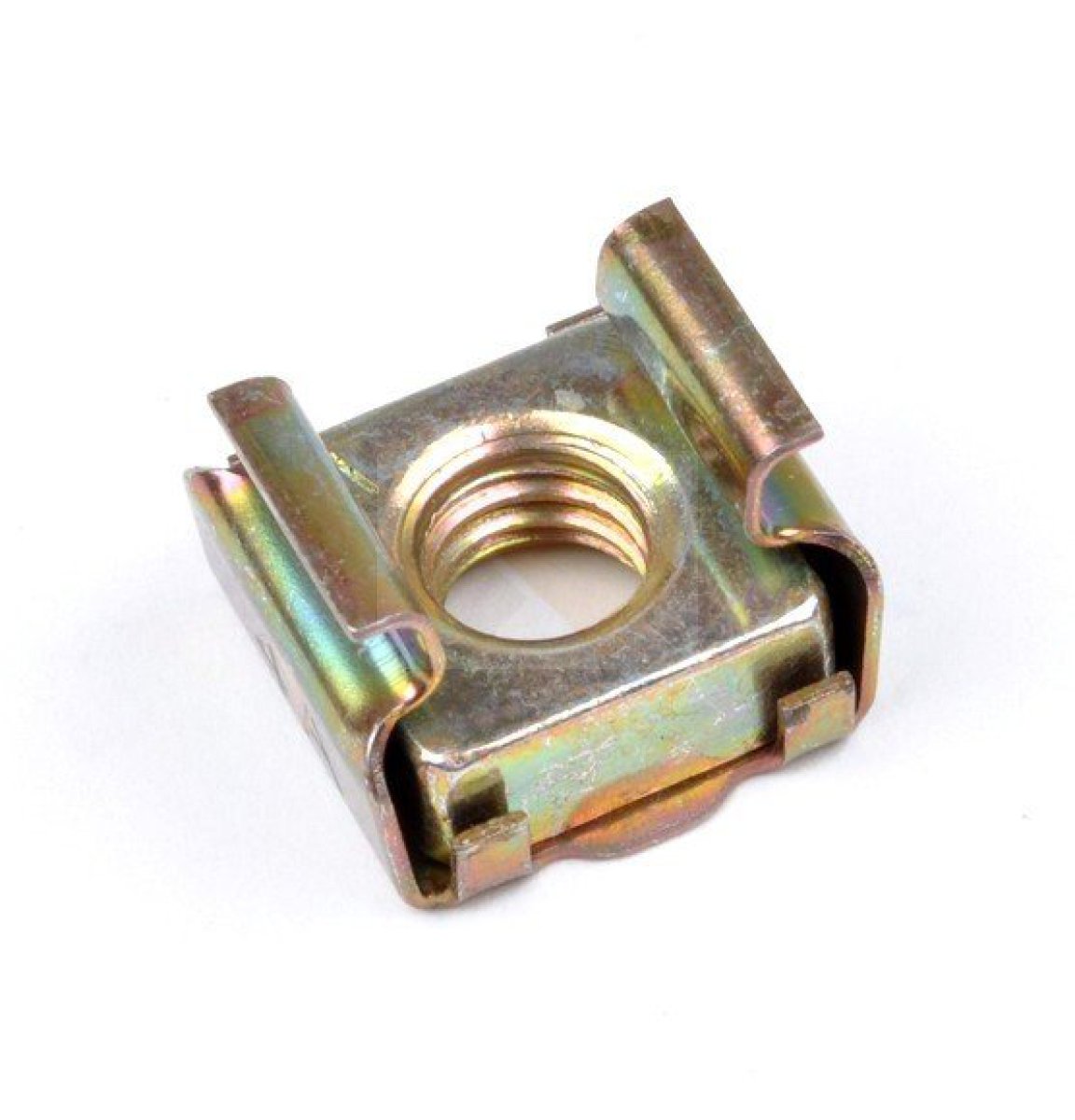

What is a cage nut?

A cage nut is a nut housed in a square casing. This casing ensures that the nut does not rotate during bolt installation. This makes installation easier and more efficient.

Applications of the cage nut SMG A M10

This cage nut is ideal for use in various applications, including:

• Fastening panels and components in cars
• Mounting racks and cabinets in server rooms
• General construction applications where a strong fastening is required

Specifications

• Thread diameter: M10
• Suitable for plate thicknesses: 1.8 to 2.6 mm
• Material: Spring steel
• Surface treatment: Electrolytically galvanized
• Dimensions:
• a: 16.6 mm
• b: 16 mm
• c: 7.8 mm
• g: 12.1 mm
• r: 0.5 mm
• s: 0.6 mm

Advantages of this cage nut

• Easy installation: Thanks to the square housing, the nut does not rotate when tightening the bolt.
• Strong fastening: The cage nut can withstand heavy loads, ensuring a reliable connection.
• Corrosion resistant: The electro-galvanized finish provides protection against rust and corrosion.

Packaging

These cage nuts are supplied in a pack of 20 pieces, which is convenient for both small and larger projects.

Compatibility

The cage nut SMG A M10 is compatible with M10 bolts and suitable for plate thicknesses ranging from 1.8 to 2.6 mm. This makes it a versatile choice for various applications.

Installation instructions

1. Place the cage nut in the square hole of the plate.
2. Ensure the nut is properly aligned.
3. Insert the bolt through the part to be fastened and screw it into the cage nut.
4. Tighten the bolt until the desired tension is reached.

With these cage nuts, you are assured of a reliable and durable fastening in various applications.
