Robust and reliable fastening

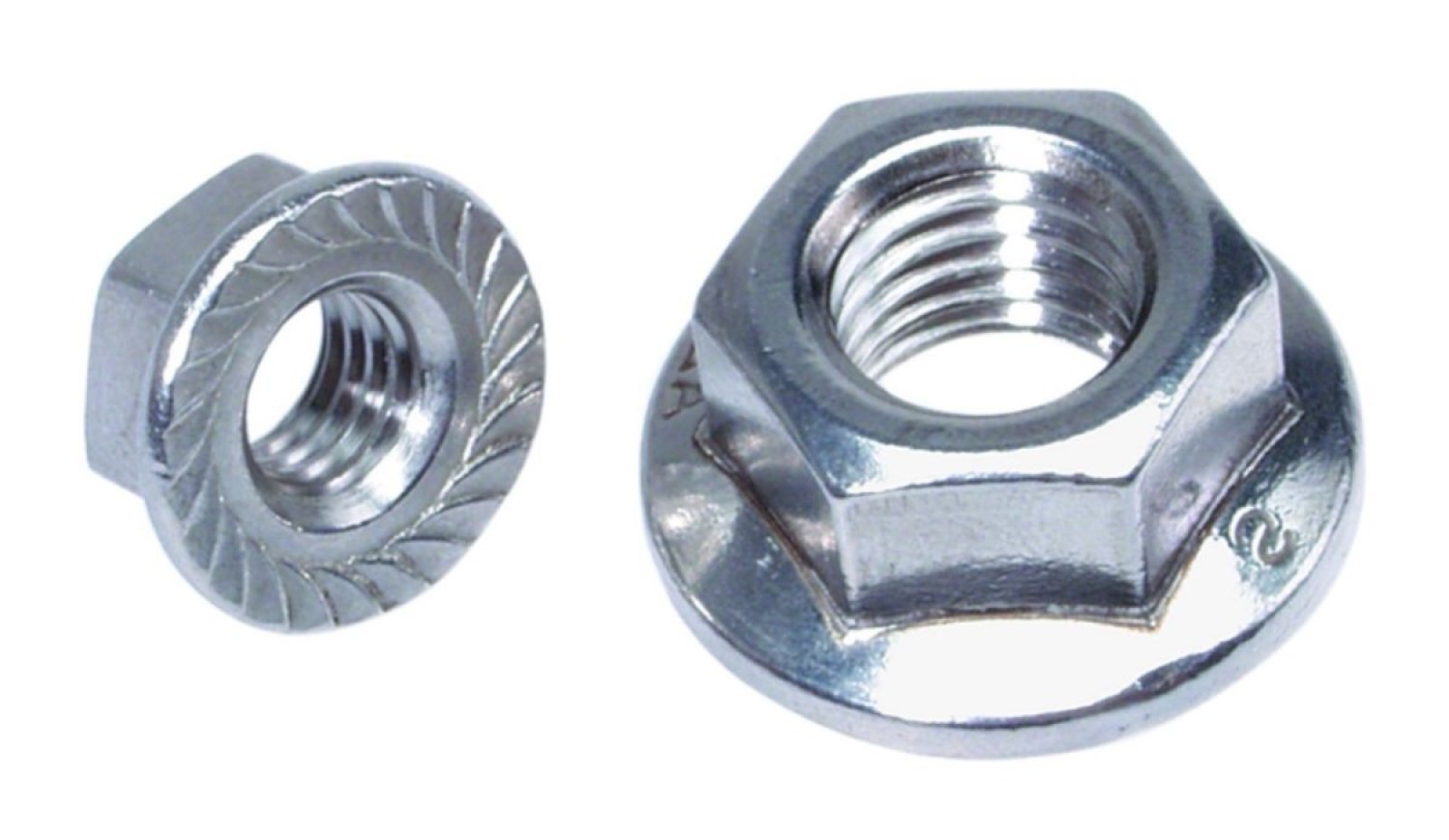

The hex flange nut with serration M8 according to DIN 6923 is designed for strong and reliable fastenings. Thanks to the integrated flange, the generated preload force is distributed over a larger surface area, resulting in lower surface pressure and a more stable connection.

Advantages of the serration

The serration in the flange provides excellent locking. This means the nut is less likely to loosen due to vibrations or dynamic loads, which is essential in applications where safety and reliability are paramount.

Specifications

• Diameter: M8
• Wrench size: 13 mm
• Flange diameter: 17.9 mm
• Height: 8 mm
• Thread direction: Right
• Thread type: Metric thread

Material and finish

This flange nut is made of steel and electrolytically galvanized. This finish offers good protection against corrosion and is suitable for various applications in both indoor and outdoor environments.

Applications

The hex flange nut with serration M8 is versatile and can be used in various sectors, including the automotive industry, mechanical engineering, and construction. The integrated flange eliminates the need for additional washers and allows you to cover oversized or slotted holes in the workpiece.

Packaging

This set contains 50 pieces, ideal for both small and larger projects. With this quantity, you have enough nuts for various applications while being assured of consistent quality and performance.

Standards

This flange nut complies with the DIN 6923 standard, ensuring standardized dimensions and quality. This ensures the nut is compatible with other DIN-standardized components and meets industrial requirements.

Installation

For optimal installation, it is important to use the correct wrench size of 13 mm. Make sure the nut is tightened firmly to fully utilize the locking effect of the serration. It is recommended to use the nut in combination with bolts of the same material quality and finish for a uniform and reliable connection.
