Robust construction and material selection

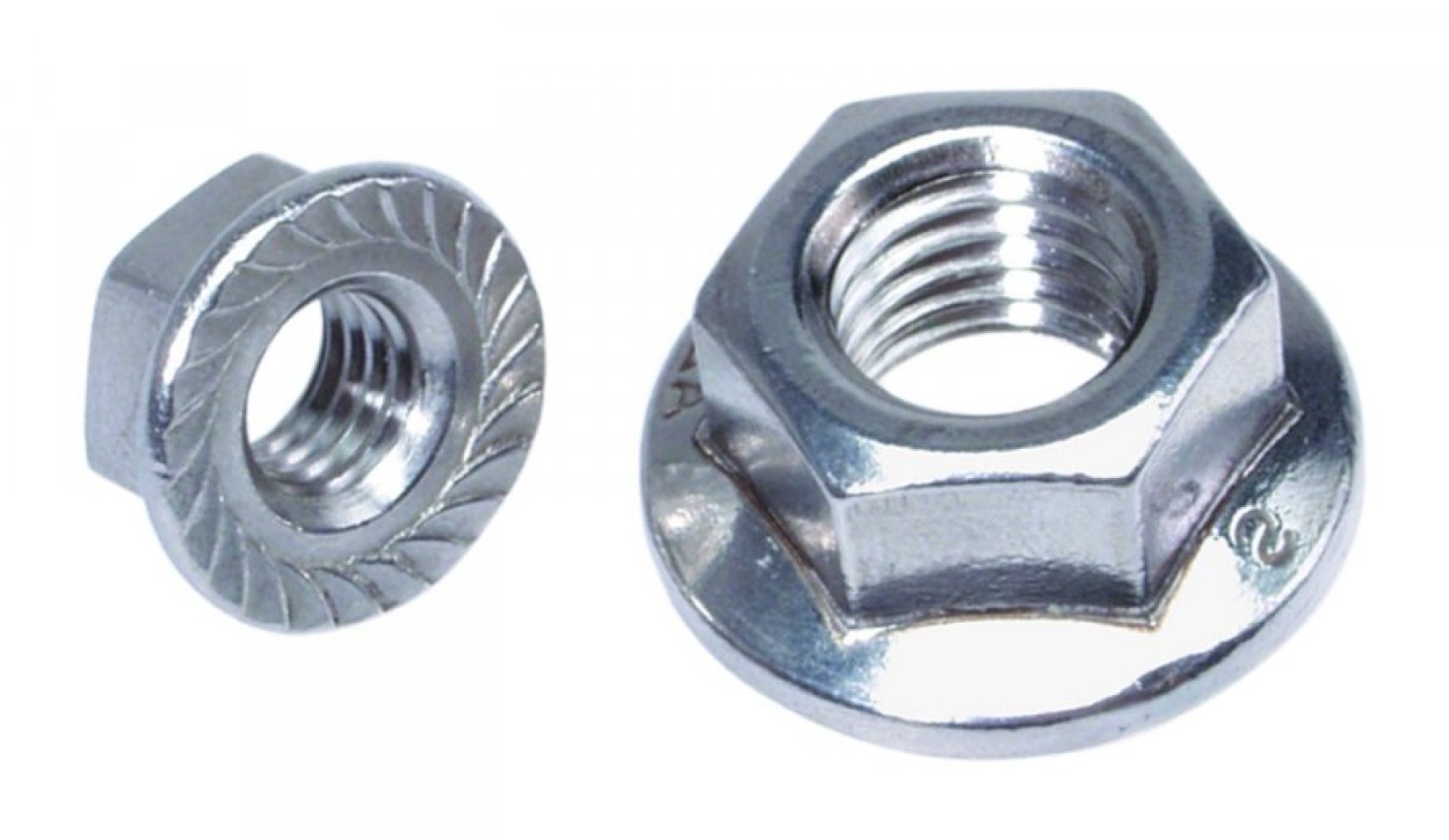

This hex flange nut M4 is made from high-quality steel and complies with the DIN 6923 standard. Thanks to the electrolytic zinc plating, the nut offers excellent protection against corrosion, significantly extending its lifespan.

Efficient fastening with integrated flange

The integrated flange distributes the generated preload force over a larger surface area, resulting in lower surface pressure. This makes it possible to cover oversized or slotted holes in the workpiece without the need for additional washers.

Reliable locking due to serration

The serration on the underside of the flange provides effective locking. This prevents the nut from loosening due to vibrations or dynamic loads, which is essential in applications where reliability is paramount.

Technical specifications

• Thread size: M4
• Wrench size: 7 mm
• Flange diameter: 9.6 mm
• Height: 4.5 mm
• Thread direction: Right
• Surface treatment: Electrolytically zinc-plated

Application possibilities

This hex flange nut is ideal for various fastening applications in the automotive sector, mechanical engineering, and other industries where a strong and reliable connection is required. The combination of flange and serration makes it a versatile choice for professionals who value quality and efficiency.

Packaging and availability

The nuts are supplied in a set of 200 pieces, ensuring sufficient stock for both small and larger projects. Thanks to the standard M4 size, they are compatible with a wide range of bolts and screws, further increasing their versatility.
