Robust construction and material choice

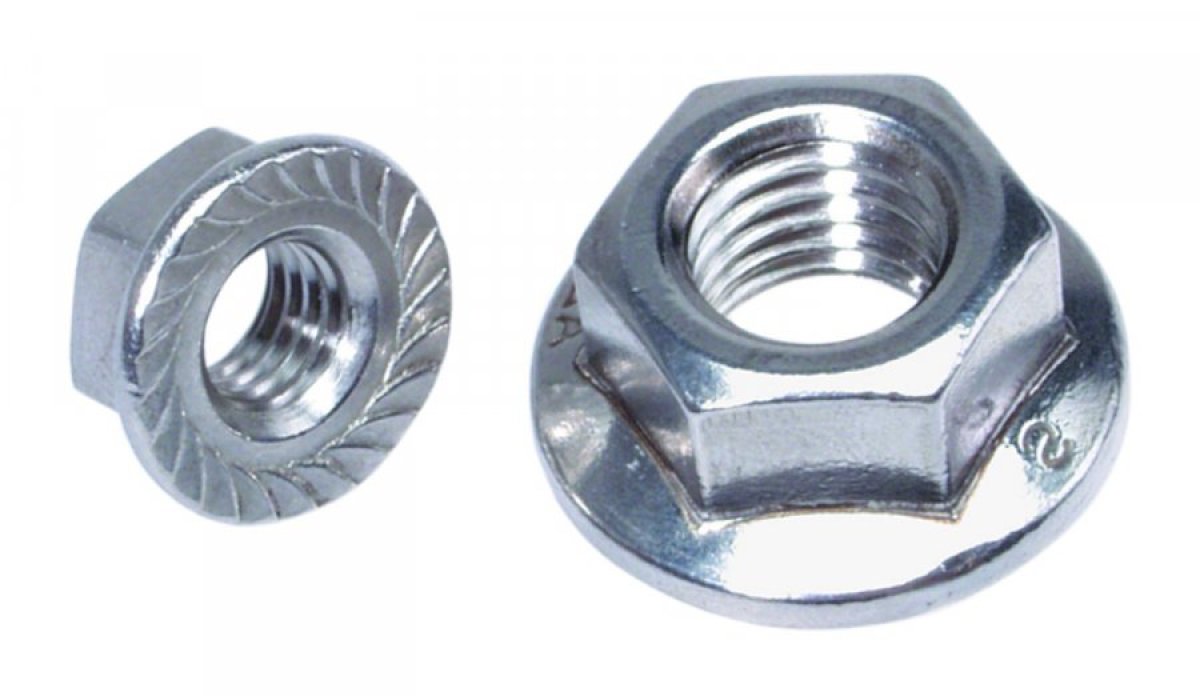

This hex flange nut M10 is made from high-quality steel and features an electroplated zinc finish. This provides excellent corrosion resistance and a long service life, even under harsh conditions.

Efficient design with integrated flange

The integrated flange distributes the generated clamping force over a larger surface area, resulting in lower surface pressure. This eliminates the need for additional washers and effectively covers oversized or slotted holes.

Reliable locking due to serration

Thanks to the serration on the underside, this nut offers excellent locking. This prevents loosening due to vibrations and ensures a stable and secure connection in various applications.

Technical specifications

• Thread size: M10
• Wrench size: 17 mm
• Flange diameter: 21.8 mm
• Height: 9.64 mm
• Material: Steel, electroplated zinc
• Standard: DIN 6923

Application possibilities

This hex flange nut is ideal for various fastening applications in the automotive sector, mechanical engineering, and construction. The combination of the flange and serration ensures a reliable and durable connection, even in demanding conditions.

Packaging and availability

The nuts are supplied in a set of 250 pieces, making them suitable for both small and large projects. Thanks to the electroplated zinc finish, they are ready for immediate use without additional treatment.
