Robust construction and material selection

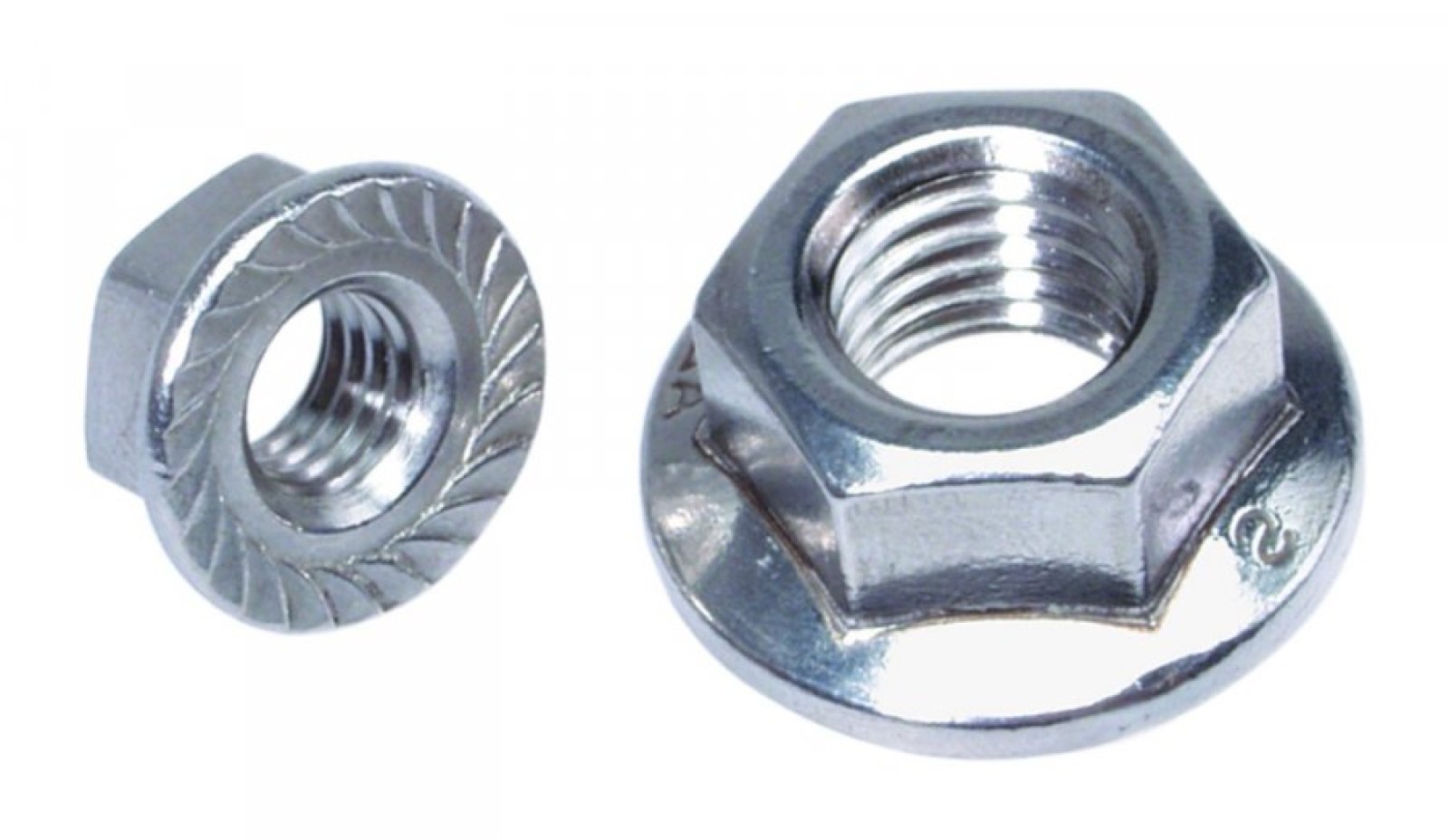

This hex flange nut M10 is made from high-quality steel and complies with the DIN 6923 standard. The electrolytic zinc plating provides excellent protection against corrosion, significantly extending the nut's lifespan. The strength class 8 guarantees high tensile strength, suitable for various applications in the automotive sector.

Efficient design with integrated flange

The integrated flange distributes the clamping force evenly over a larger surface area, reducing surface pressure. This design eliminates the need for additional washers and ensures a secure fastening, even with oversized or slotted holes in the workpiece.

Serration for extra grip

The serration on the flange increases friction between the nut and the fastened material. This prevents unintentional loosening due to vibrations or dynamic loads, which is essential for the safety and reliability of the connection.

Technical specifications

• Thread size: M10
• Wrench size: 15 mm
• Flange diameter: 21.8 mm
• Height: 9.2 mm
• Thread direction: Right
• Surface treatment: Electrolytic zinc plated
• Material: Steel, strength class 8

Application possibilities

This flange nut is ideal for use in the automotive industry, especially for mounting body parts, engine mounts, and suspension systems. The combination of the flange and serration ensures a reliable and durable connection, even under harsh conditions.

Key advantages

• Corrosion resistant: Thanks to the electrolytic zinc plating, the nut is resistant to rust.
• Increased grip: The serration prevents loosening due to vibrations.
• Easy installation: The integrated flange eliminates the need for extra washers.
• Durable: Made from high-quality steel with strength class 8 for long-term use.

Compatibility and standards

This flange nut is compatible with metric threads and complies with the following standards:

• DIN: 6923
• ISO: 4161
• NF: E25-406

This guarantees a high degree of reliability and standardization in various applications.
