Robust construction for reliable fastening

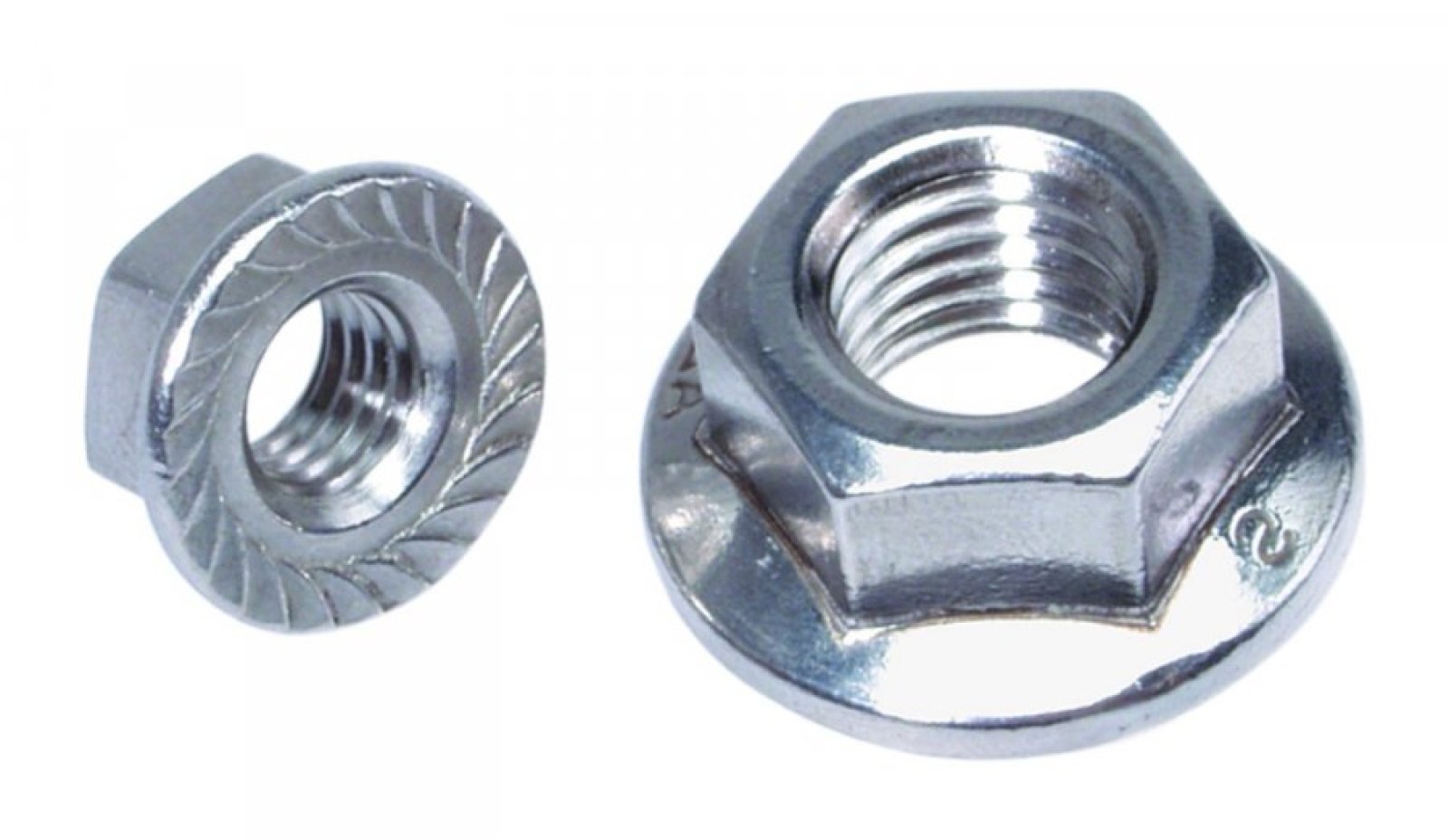

This hex flange nut M12 is made from grade 8.8 steel, providing high tensile strength and durability. The electroplated finish offers excellent protection against corrosion, making the nut suitable for various applications in the automotive sector and other industries.

Integrated flange for optimal pressure distribution

The integrated flange at the bottom of the nut ensures better pressure distribution over the fastened surface. This reduces the risk of material damage and eliminates the need for extra washers, simplifying assembly.

Serration for extra locking

The serration under the flange provides additional grip on the fastened material, making the nut less likely to loosen due to vibrations. This is especially important in applications where reliability and safety are paramount.

Standardization according to DIN 6923

This flange nut complies with the DIN 6923 standard, ensuring consistent quality and compatibility with other standardized components. The metric M12 thread with a pitch of 1.75 mm makes the nut suitable for a wide range of applications.

Specifications

• Thread size: M12
• Wrench size: 18 mm
• Flange diameter: 26 mm
• Height: 12 mm
• Material: Steel grade 8.8
• Surface treatment: Electroplated
• Standard: DIN 6923

Packaging

This set contains 20 pieces of hex flange nuts M12, ideal for both small and larger projects. The nuts are carefully packed to keep them in optimal condition until use.

Applications

These flange nuts are suitable for various applications, including:

• Fastening parts in cars
• Assembly of machines and equipment
• Construction work

Thanks to the combination of strength, corrosion resistance, and extra locking from the serration, these nuts offer a reliable solution for your fastening needs.
