Robust and reliable fastening

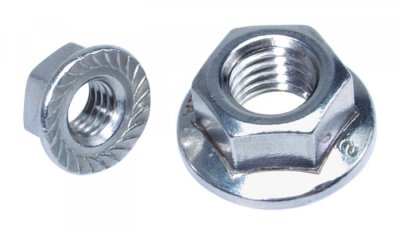

The stainless steel A2 flange nut with serration DIN 6923 M6 is designed for applications where a strong and vibration-resistant connection is required. Thanks to the integrated flange, the pressure is evenly distributed over a larger surface area, increasing the stability of the connection.

High-quality materials

This flange nut is made from A2 grade stainless steel (AISI 304), providing excellent corrosion resistance. This makes the nut suitable for use in humid environments and applications where durability is essential.

Technical specifications

• Thread size: M6
• Flange diameter: 14.2 mm
• Height: 6 mm
• Wrench size: 10 mm
• Material: Stainless steel A2 (AISI 304)
• Standard: DIN 6923

Advantages of the serration

The serration on the underside of the flange nut grips into the underlying material, preventing the nut from loosening due to vibrations. As a result, the use of additional locking devices is often unnecessary.

Areas of application

This flange nut is ideal for various applications in the automotive sector, mechanical engineering, and other industries where reliable and durable fastenings are necessary.

Packaging

The nuts are supplied in sets of 50 pieces, which is convenient for both small and larger projects.

Assembly advice

For optimal performance, it is recommended to mount the flange nut directly onto the material without using additional washers. This ensures that the serration can grip effectively and the connection remains secure.

Quality guarantee

These flange nuts comply with the DIN 6923 standard, ensuring consistency in dimensions and quality.
