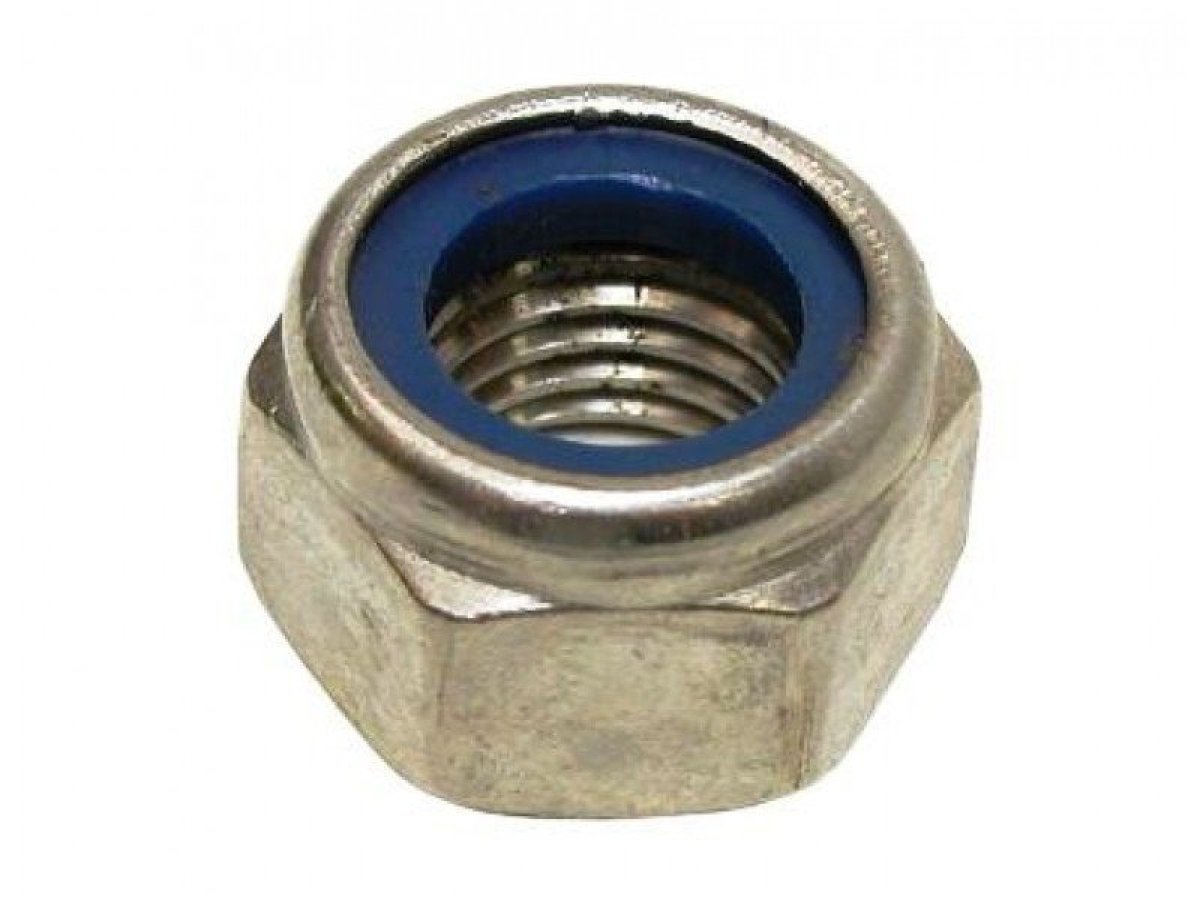

Reliable fastening with stainless steel A2 locknut DIN 985 M5

The stainless steel A2 locknut DIN 985 M5 is a self-locking hex nut that ensures a strong and secure fastening. Thanks to the built-in nylon insert, the nut stays firmly in place, even under vibrations and dynamic loads.

High-quality materials for optimal performance

This locknut is made from A2 grade (AISI 304) stainless steel, offering excellent corrosion resistance. This makes the nut suitable for use in humid environments and outdoor applications.

Technical specifications

• Diameter (d): M5
• Pitch (p): 0.8 mm
• Wrench size (s): 8 mm
• Height (h): 5 mm
• Material: Stainless steel A2 (AISI 304)
• Standard: DIN 985
• Thread direction: Right

Applications in various sectors

The stainless steel A2 locknut DIN 985 M5 is widely used in the automotive sector, mechanical engineering, and construction. The self-locking feature prevents loosening due to vibrations, which is essential for the safety and reliability of structures.

Advantages of the nylon locking ring

• Vibration resistance: The nylon insert prevents loosening due to vibrations.
• Easy installation: No additional locking agents required.
• Reusability: Can be used multiple times without losing its locking function.

Maintenance and usage tips

For optimal performance, it is important to tighten the nut correctly with the appropriate tool. Ensure that the bolt protrudes a few threads for a firm grip. Avoid excessive heat during tightening to prevent damage to the nylon insert.

Available packaging

The stainless steel A2 locknut DIN 985 M5 is available in various packages, including sets of 200 pieces, suitable for both small and large projects.

Compliance and quality

This locknut complies with the DIN 985 standard, ensuring consistent quality and dimensions. Production according to this standard provides a reliable and durable fastening solution.
