Easy assembly without tools

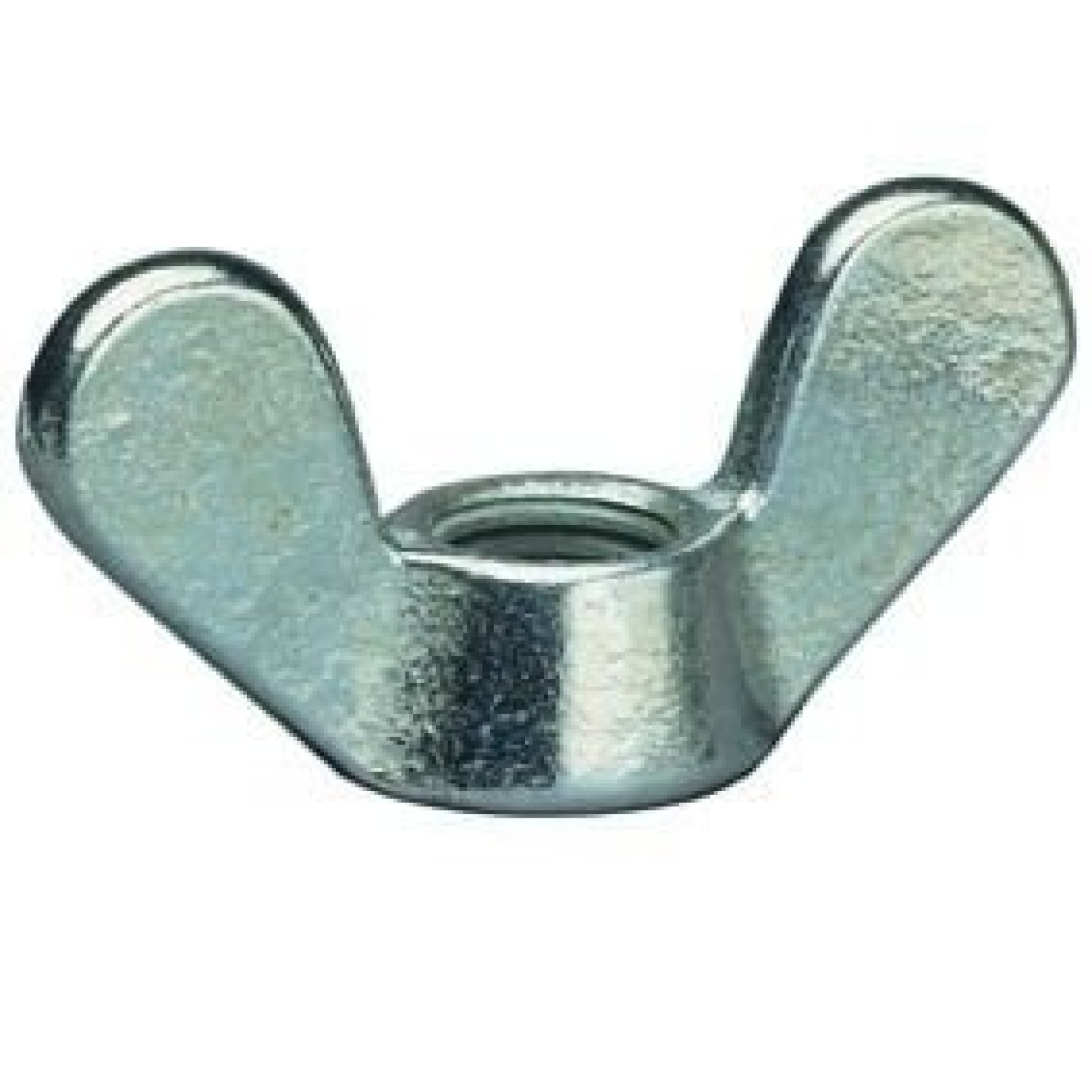

The stainless steel A2 wing nut DIN315 USA M8 is designed for situations where you want to quickly and securely make a connection without tools. Thanks to the two wings, you can easily tighten or loosen the nut by hand, which is ideal for applications where frequent adjustments are needed.

High-quality materials for reliable performance

This wing nut is made from A2 stainless steel, also known as 304 stainless steel. This material is known for its excellent corrosion resistance under normal atmospheric conditions and in wet environments. This makes the nut suitable for both indoor and outdoor applications.

Technical specifications

• Thread size: M8
• Standard: DIN 315, American model
• Material: Stainless steel A2 (304)
• Strength class: 50
• Dimensions:
• Total height: 14.8 mm
• Nut height: 5.4 mm
• Width: 30.3 mm
• Nut diameter: 13.8 mm
• Wing thickness: 2.8 mm
• Pitch: 1.25 mm

Versatile for various applications

This wing nut is ideal for use in situations where quick assembly and disassembly are required, such as in mechanical engineering, electrical engineering, and various construction projects. The manual operation allows you to make adjustments without extra tools, saving time and effort.

Corrosion resistance for long-term use

The use of A2 stainless steel ensures excellent resistance to corrosion and wear, giving these wing nuts a long service life. They are resistant to various weather conditions and can be used both indoors and outdoors.

Packaging and availability

These wing nuts are supplied in sets of 20 pieces, which is convenient for both small and larger projects. They are available directly from stock, so you can quickly get started with your fastening work.

Areas of application

• Mechanical engineering: For quickly fastening and loosening components.
• Electrical engineering: Fastening panels and enclosures.
• Construction sector: Assembly of temporary structures and scaffolding.
• DIY projects: Ideal for jobs in and around the house where flexibility is desired.

With the stainless steel A2 wing nut DIN315 USA M8, you choose a reliable and user-friendly solution for all your fastening needs.
