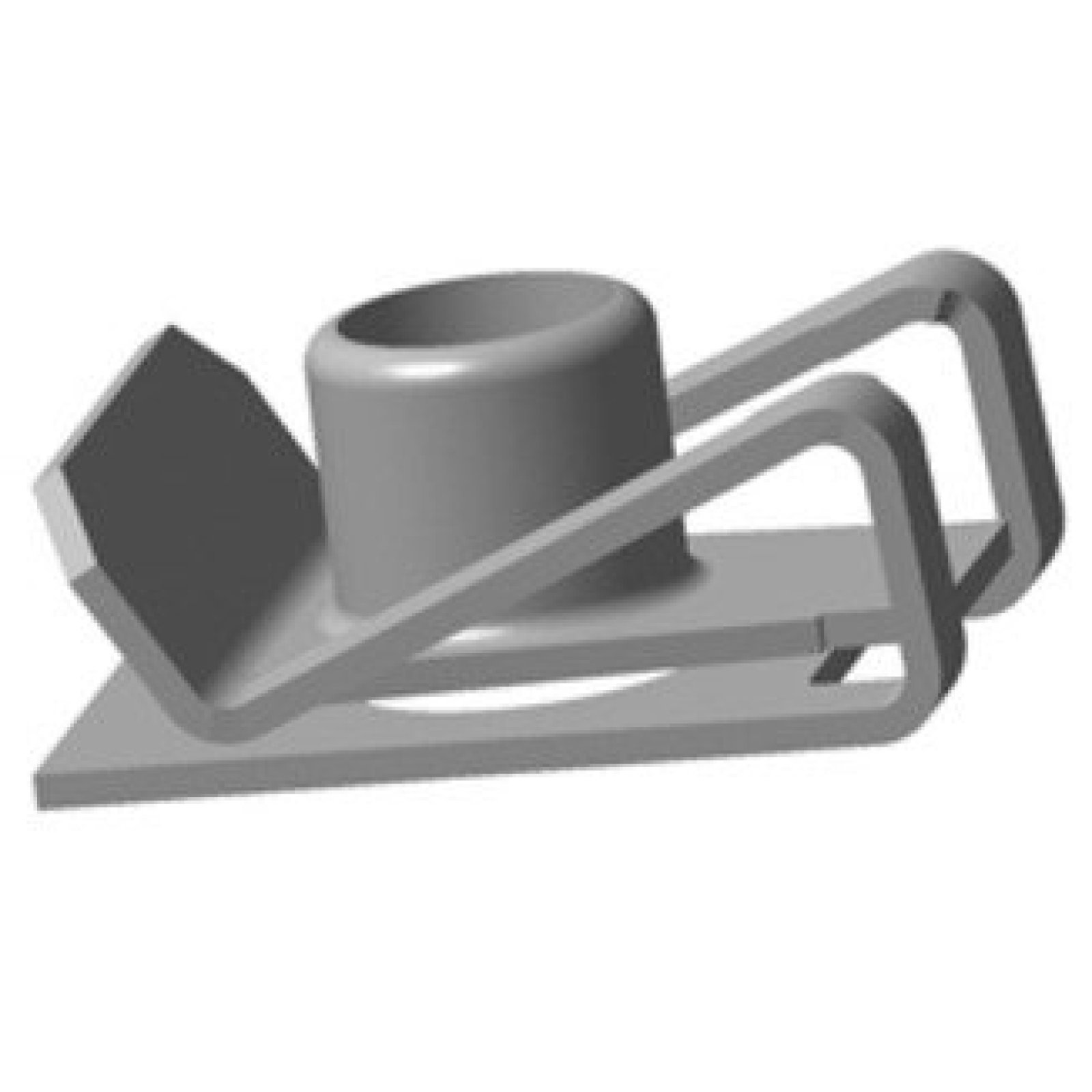

What is a speed nut?

A speed nut, also known as a clip-on nut or plate nut, is a specially designed fastening element that can be easily clamped onto sheet material. These nuts are ideal for situations where quick and reliable assembly is required, without needing access to the rear side of the material.

Applications in the automotive sector

Speed nuts are widely used in the automotive industry for fastening various components, such as:

• Interior panels
• Door trim
• Fenders
• Bumpers
• Dashboard components

Thanks to their design, they provide a strong connection even on thin sheet materials, and reduce the risk of loosening due to vibrations while driving.

Advantages of the M5 speed nut

• Easy installation : Can be quickly clamped onto the edge of the sheet material without special tools.
• Strong connection : Provides a reliable threaded connection on thin materials.
• Versatility : Suitable for various applications inside and outside the car.
• Reusability : Can be used multiple times without loss of clamping force or deformation.

Specifications

• Thread diameter : M5
• Material : High-quality steel
• Quantity in package : 5 pieces
• Dimensions :
• Length: 20.4 mm
• Width: 15 mm
• Material thickness: 0.6 mm

Installation instructions

1. Slide the speed nut over the edge of the sheet material at the desired position.
2. Make sure the threaded hole is aligned with the mounting hole in the material.
3. Screw the M5 bolt or screw into the speed nut until it is firmly secured.

With these M5 speed nuts, you ensure quick and reliable mounting of various car parts, contributing to both the efficiency and durability of your vehicle.
