Reliable locking for your fastenings

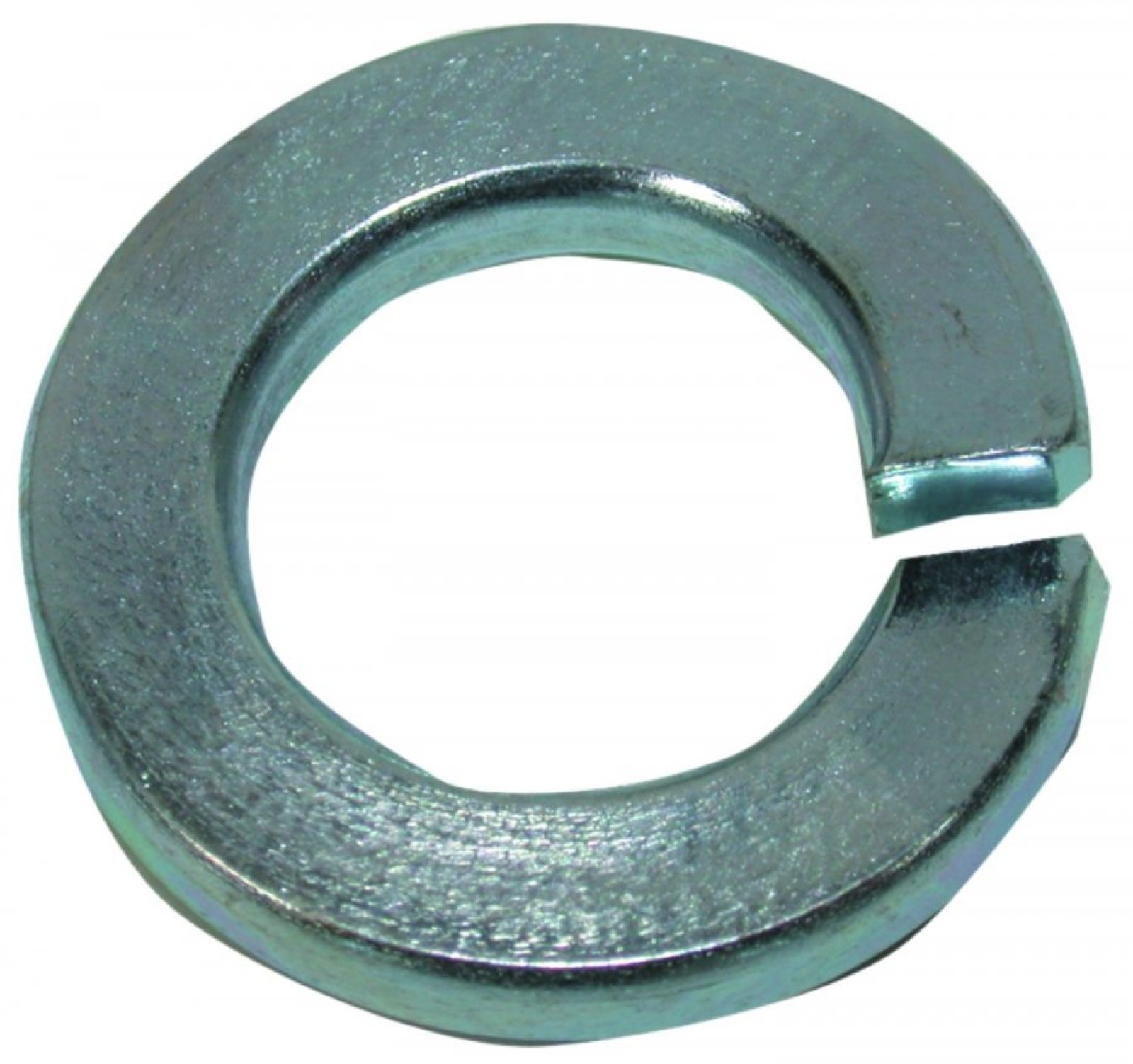

When assembling bolts and nuts, it is essential to ensure they are securely tightened and do not loosen due to vibrations or other forces. The stainless steel A2 spring washer DIN127B M3 with flat ends offers the perfect solution for this. This spring washer is specially designed to maintain tension in the connection and prevent fasteners from coming loose.

High-quality material composition

This spring washer is made of A2 grade stainless steel, also known as AISI 304. This material is known for its excellent corrosion resistance, making the washer suitable for use in humid environments and outdoor applications. In addition, the stainless steel provides a high degree of strength and durability, contributing to the reliability of your fastenings.

Precise dimensions for optimal performance

The spring washer has the following specifications:

• Inner diameter (d1): 3.1 mm
• Outer diameter (d2): 6.2 mm
• Thickness (s): 0.8 mm
• Height (h): 1.6 mm

These precise dimensions ensure optimal performance of the spring washer in combination with M3 bolts and nuts, guaranteeing a strong and secure connection.

Applications and use

The stainless steel A2 spring washer DIN127B M3 with flat ends is ideal for various applications, including:

• Automotive sector: Fastening parts in cars where vibrations may occur.
• Construction sector: Assembly of structures where reliable locking is required.
• Electronics: Fastening components where a stable connection is necessary.

Using this spring washer contributes to the safety and reliability of your projects.

Advantages of the DIN127B standard

The DIN127B standard stands for spring washers with flat ends, which offers several advantages:

• Even pressure distribution: The flat ends ensure an even distribution of pressure over the fastening surface.
• Reduced risk of damage: Less chance of damage to the fastening material due to the even pressure distribution.
• Easy installation: The spring washer is easy to install and remove, saving time during assembly work.

Important considerations

Although the stainless steel A2 spring washer DIN127B M3 with flat ends performs excellently under static load, it is important to know that it is less suitable for applications with dynamic load. For situations where the load changes continuously, it is recommended to consider alternative locking devices.

With the stainless steel A2 spring washer DIN127B M3 with flat ends, you choose a reliable and durable solution to keep your fastenings secure and safe.
