Reliable locking for your fastenings

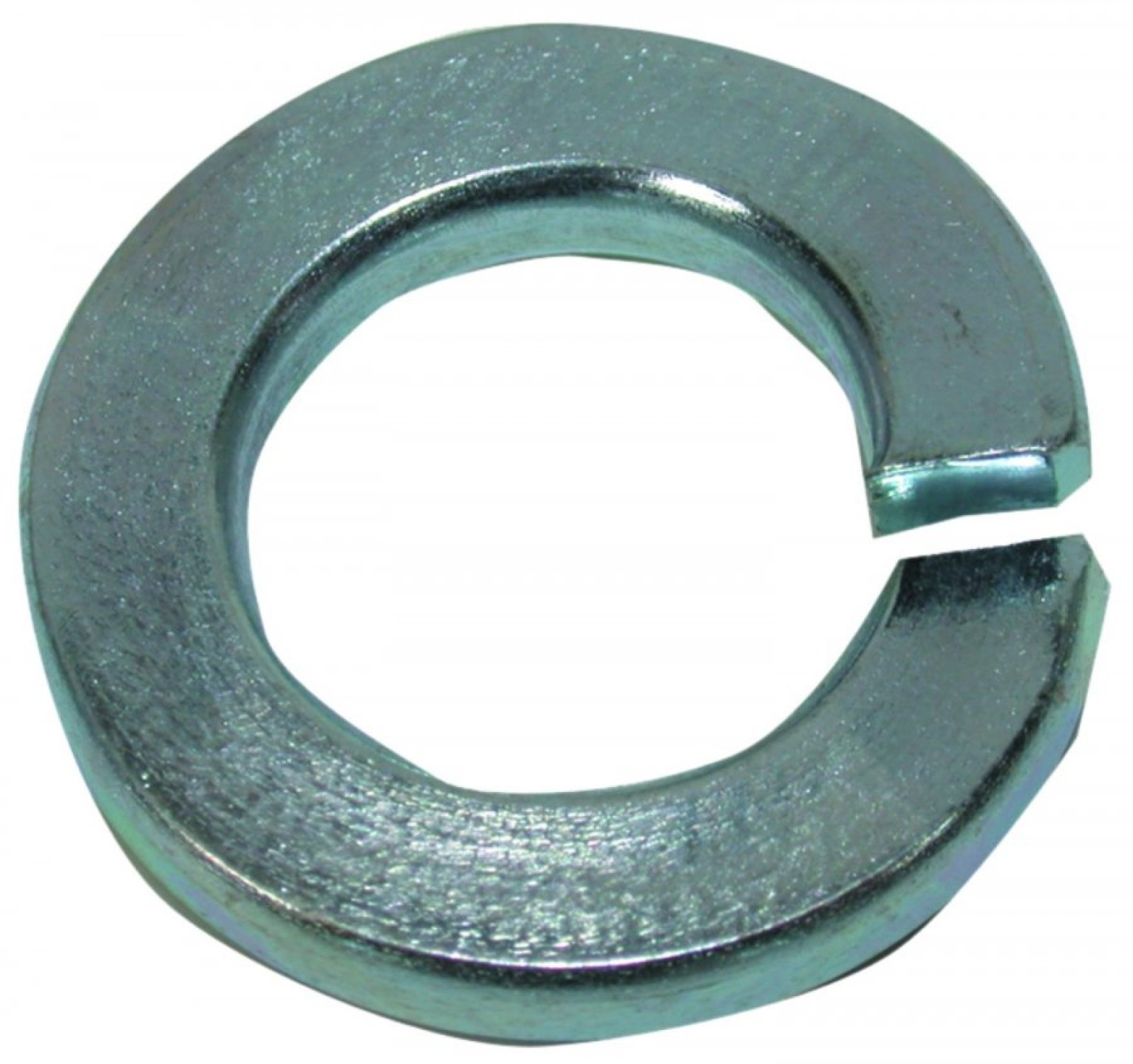

When assembling nuts and bolts, it is essential to ensure they remain securely fastened, especially in applications where vibrations and movement occur. The stainless steel A2 spring washer DIN127B M5 with flat ends offers the perfect solution. This spring washer is specially designed to prevent nuts and bolts from loosening, keeping your constructions reliable and safe.

High-quality stainless steel for optimal performance

This spring washer is made from A2 grade (AISI 304) stainless steel, known for its excellent corrosion resistance. This makes the washer particularly suitable for use in damp environments or outdoor applications where exposure to the elements plays a role. Thanks to the use of A2 stainless steel, you are assured of a long service life and minimal maintenance requirements.

Precise dimensions for a perfect fit

The washer is designed according to the DIN127B standard and has the following dimensions:

• Inner diameter (d1): 5.1 mm
• Outer diameter (d2): 9.2 mm
• Thickness (s): 1.2 mm

These precise specifications ensure a perfect fit on M5 bolts and nuts, which is essential for effective locking and optimal performance.

Applications in various sectors

The stainless steel A2 spring washer DIN127B M5 with flat ends is highly versatile and is widely used in various sectors, including:

• Automotive: Securing parts subject to vibrations and movements.
• Construction: Anchoring structures where stability and safety are crucial.
• Mechanical engineering: Assembling machines and equipment where reliable connections are necessary.

Due to its wide range of applications, this washer is an indispensable part of your toolbox.

Easy installation for maximum efficiency

Using this washer is simple and effective. Place the washer under the nut and tighten it. When tightening, the washer offers little resistance, but when loosening, the ends of the washer cut into the metal of the adjoining surfaces. This mechanism prevents the nut from coming loose due to vibrations or movements, keeping your connections firm and reliable.

Packaging and availability

The spring washers are supplied in packs of 200 pieces, which is ideal for both small and large projects. Thanks to ample stock and fast delivery, you can always count on timely availability of this essential fastening material.

With the stainless steel A2 spring washer DIN127B M5 with flat ends, you choose quality, reliability, and durability for all your fastening tasks.
