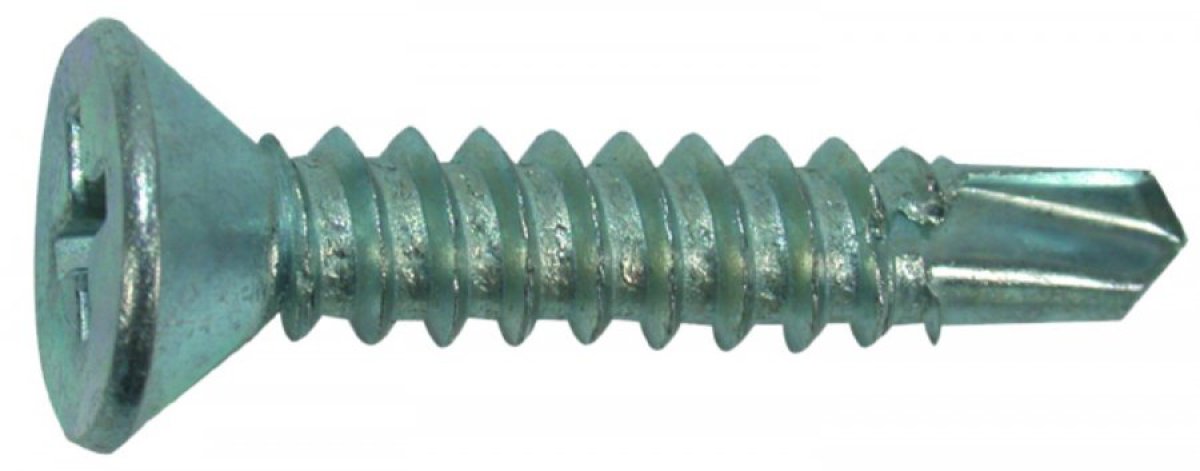

High-quality self-drilling screw for metal applications

This stainless steel A2 self-drilling screw with countersunk head and Philips drive is specially designed for efficient fastening in thin metal sheets. Thanks to the self-drilling tip, pre-drilling is unnecessary, saving time and effort.

Features and benefits

• Material: Made of stainless steel A2 (AISI 304), this screw offers excellent corrosion resistance, ideal for both indoor and outdoor applications.
• Dimensions: With a diameter of 4.2 mm and a length of 16 mm, this screw is suitable for various uses.
• Drive: Equipped with a Philips PH2 drive for a firm grip and easy installation.
• Head shape: The countersunk head ensures a flush finish, contributing to a neat and professional result.

Application possibilities

This self-drilling screw is ideal for fastening thin metal sheets without pre-drilling. Suitable for materials such as steel, iron, and aluminum with a thickness up to 3 mm.

Technical specifications

• Standard: Complies with DIN 7504P, ensuring quality and reliability.
• Head diameter: 8.4 mm, providing a strong and secure fastening.
• Drilling capacity: Effective in materials with a thickness of 1.75 to 3 mm.

Installation instructions

For optimal performance, it is important to use the correct screwdriver bit. Use a PH2 bit for the Philips drive and make sure the screw is driven in straight and with even pressure to prevent damage to the material.
