High-quality self-drilling screw for efficient installation

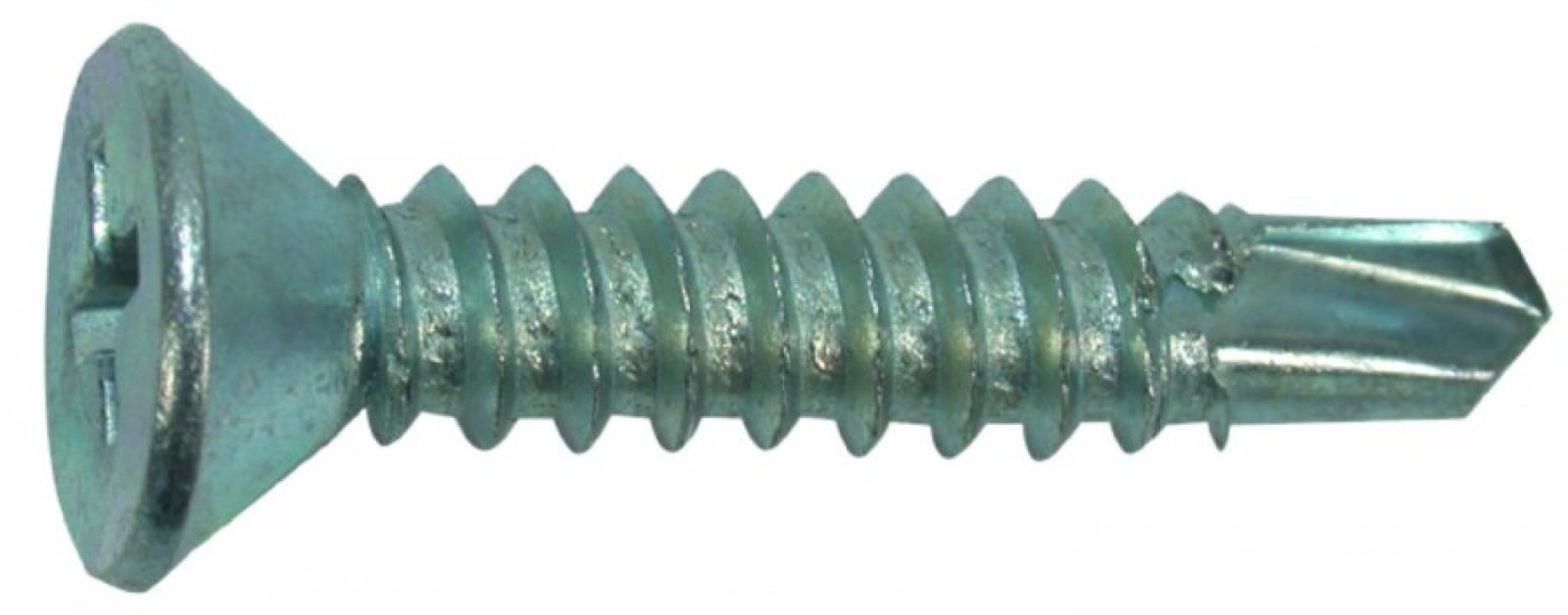

This stainless steel A2 self-drilling screw with DIN7504P standard and countersunk Philips head is designed for quick and easy installation without pre-drilling. With a diameter of 4.2 mm and a length of 25 mm, this screw is ideal for various applications in the automotive sector.

Features and benefits

• Material: Made of stainless steel A2, providing excellent corrosion resistance and durability.
• Self-drilling: The 7 mm long drill point eliminates the need for pre-drilling, saving time and increasing efficiency.
• Countersunk head: Ensures a flush finish after installation, which is aesthetically pleasing and prevents the screw head from protruding.
• Philips drive: The PH2 cross slot provides a firm grip and reduces the risk of slipping during tightening.

Technical specifications

• Standard: DIN7504P
• Diameter: 4.2 mm
• Length: 25 mm
• Head height: 2.6 mm
• Head diameter: 8.4 mm
• Drive: Philips PH2
• Drill point length: 7 mm

Applications

These self-drilling screws are suitable for fastening thin metal sheets, profiles, and other components in the automotive industry. Thanks to the self-drilling feature, they can be screwed directly into metal without pre-drilling, significantly reducing installation time.

Packaging

The screws are supplied in sets of 20 pieces, ideal for both small and larger projects. For larger quantities, packs of 100 pieces are also available.

Important considerations

When using stainless steel A2 self-drilling screws, it is important to know that they are less suitable for applications with high tensile or shear loads. For such applications, the use of hardened steel screws is recommended.
