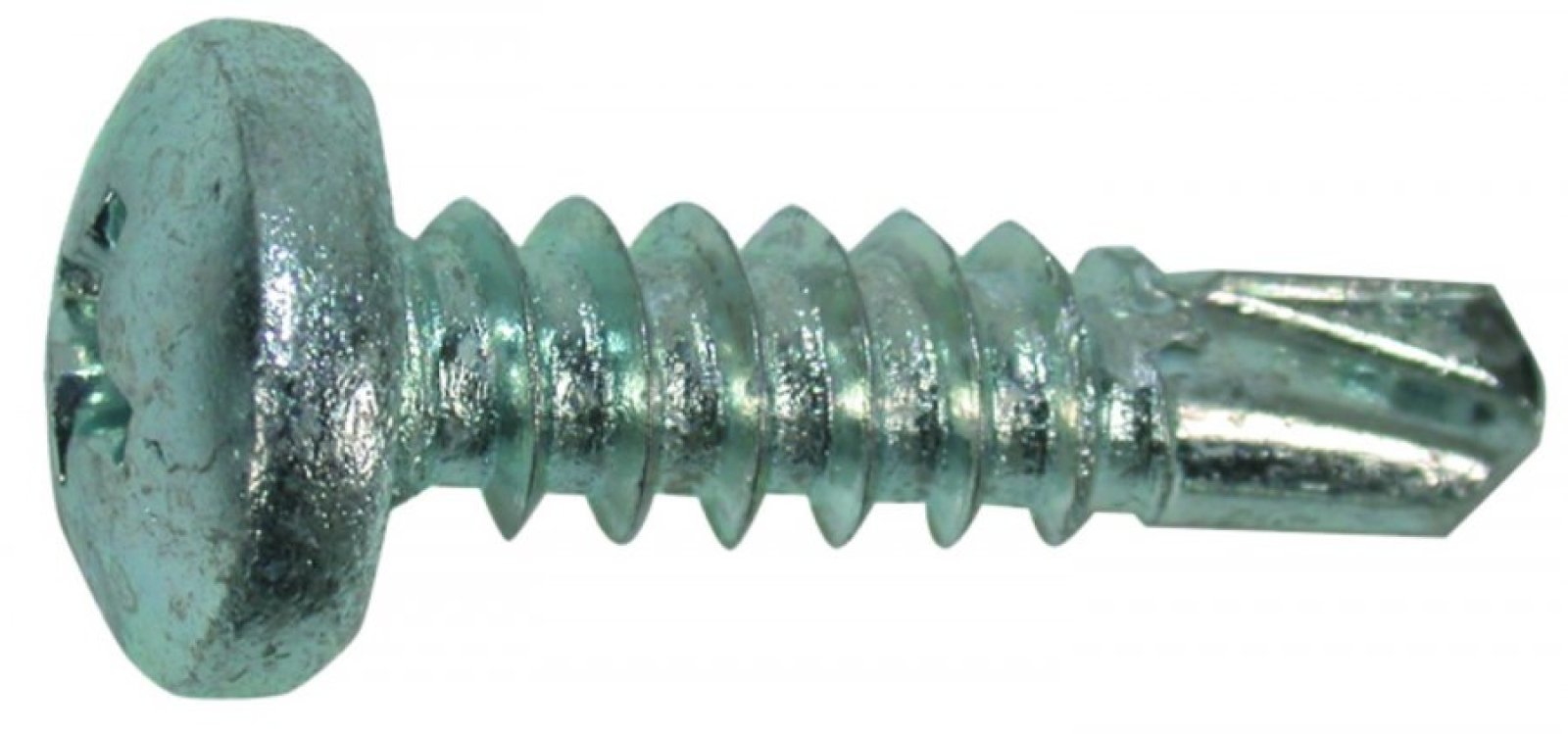

Features of the self-drilling screw DIN7504N 4.2x32 mm

These self-drilling screws are designed for efficient fastening of metal sheets without the need for pre-drilling. With a diameter of 4.2 mm and a length of 32 mm, they provide a strong and reliable connection.

• Diameter: 4.2 mm
• Length: 32 mm
• Head shape: Round head
• Drive: Philips PH2
• Material: Steel, galvanized
• Standard: DIN 7504N

Applications and benefits

These screws are ideal for fastening metal sheets up to 3 mm thick. Thanks to the self-drilling tip, they can be screwed directly into the material, saving time and effort.

• Suitable for steel, iron, and aluminum
• No pre-drilling required
• Efficient and quick installation

Detailed specifications

The self-drilling screws comply with the DIN 7504N standard, ensuring consistent quality and dimensions. The galvanized finish provides extra protection against corrosion, extending the lifespan of the screws.

• Head diameter: 8.2 mm
• Head height: 3.05 mm
• Drilling capacity: 1.75 - 3.0 mm
• Thread pitch: 1.4 mm

Packaging and contents

This set contains 20 self-drilling screws, sufficient for various applications. The screws are neatly packed to prevent damage during transport.

• Quantity: 20 pieces
• Packaging: Box

Compatibility and use

The Philips PH2 drive ensures a firm grip and prevents damage to the screw head during installation. Use a suitable PH2 screwdriver or bit for optimal results.

• Drive: Philips PH2
• Recommended tool: PH2 screwdriver or bit

Quality and standards

These self-drilling screws are produced according to the DIN 7504N standard, which stands for high quality and reliability. The galvanized finish provides extra protection against rust and wear.

• Standard: DIN 7504N
• Finish: Galvanized

Summary

With these self-drilling screws, you are assured of quick and efficient installation of metal sheets without pre-drilling. The combination of high-quality materials and precise dimensions makes them a reliable choice for various applications.
