Product description

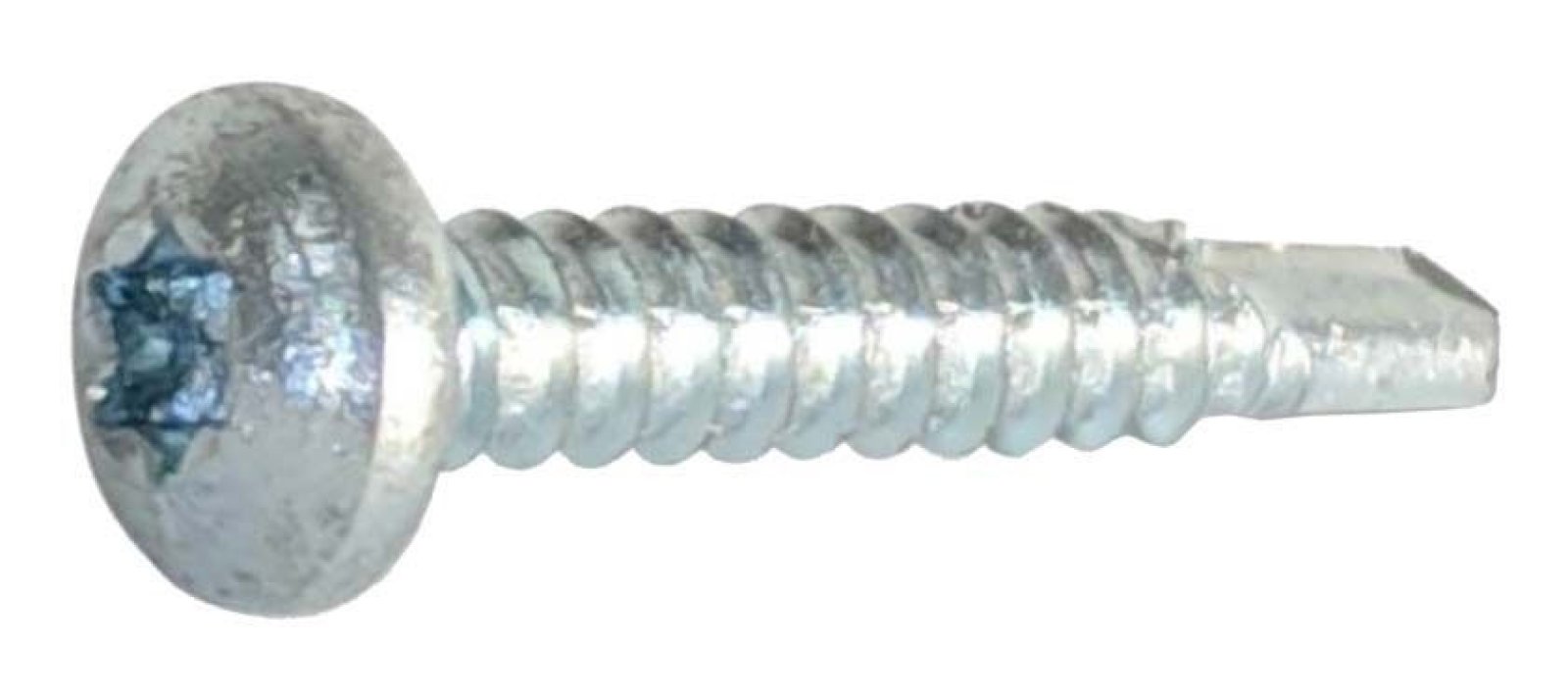

This self-drilling screw according to DIN 7504N standard is designed for efficient and reliable fastening in various materials. With a diameter of 4.8 mm and a length of 13 mm, this screw offers optimal performance for a wide range of applications.

Material and finish

• Material: Made of hardened steel, providing high strength and durability.
• Finish: Equipped with an electrolytically zinc-plated layer that offers protection against corrosion and extends the lifespan.

Head and drive features

• Head shape: Round head with a height of 3.7 mm and a diameter of 9.5 mm, ensuring a neat finish after installation.
• Drive: Equipped with a TX25 (Torx) drive, which provides a firm grip and reduces the risk of damage during screwing.

Application possibilities

This self-drilling screw is ideal for fastening metal components without pre-drilling. Suitable for:

• Fastening in metal sheets up to 6.5 mm thick.
• Applications in the metalworking industry.
• Installations where quick and efficient assembly is required.

Technical specifications

• Diameter (d): 4.8 mm
• Length (l): 13 mm
• Head height (k): 3.7 mm
• Head diameter (dk): 9.5 mm
• Drive: TX25 (Torx)
• Material: Hardened steel
• Finish: Electrolytically zinc-plated
• Standard: DIN 7504N

Packaging

These self-drilling screws are supplied in a pack of 100 pieces, which is sufficient for both small and medium-sized projects.

Important notes

• Suitability: Although these screws are versatile, it is important to check whether they are suitable for the specific material and application.
• Installation: Use the correct tools and follow the recommended installation methods to ensure optimal performance.

With these self-drilling screws, you are assured of reliable and efficient fastening for various applications.
