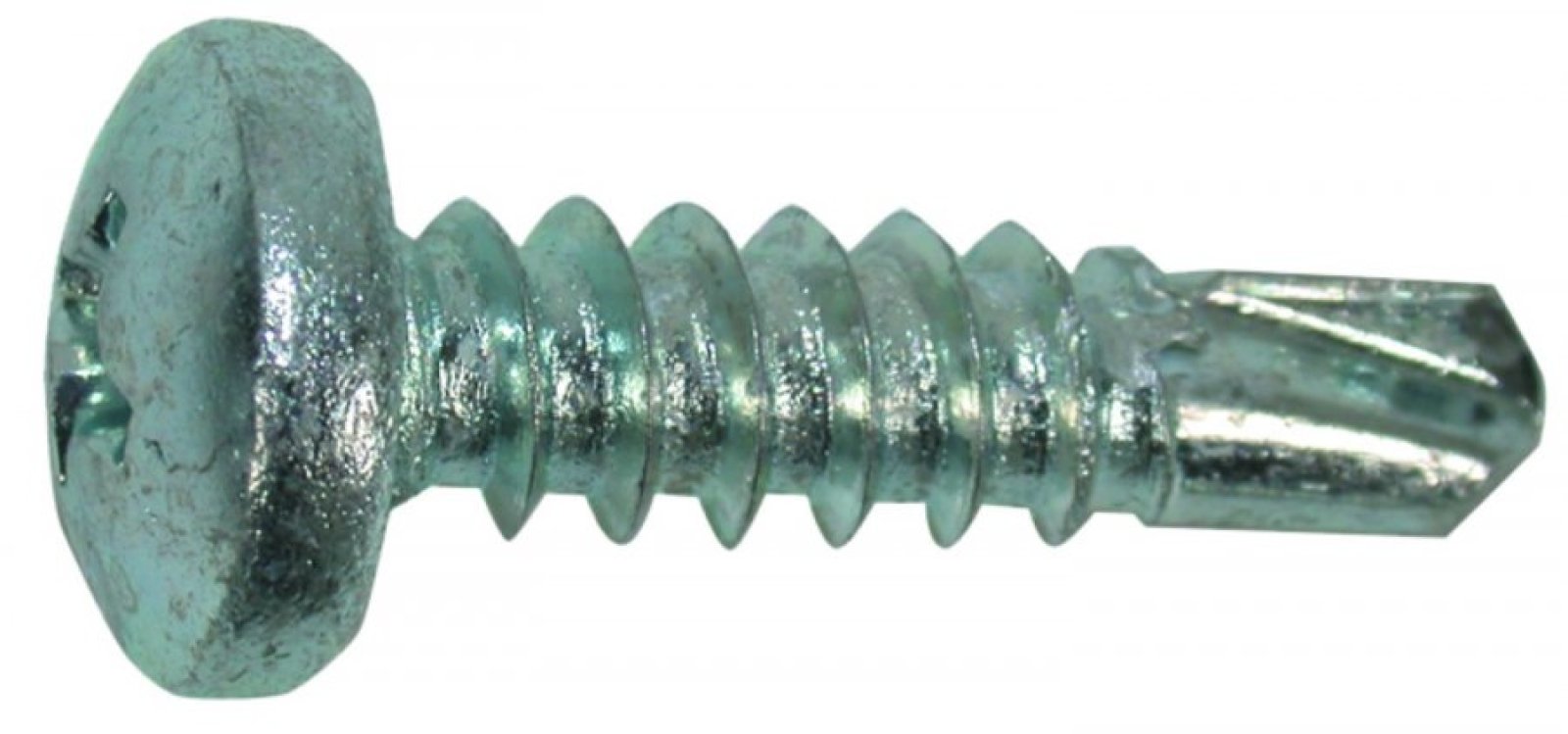

Self-drilling screw for efficient installation

This stainless steel A2 self-drilling screw with pan head and Philips PH2 drive is designed for fast and easy installation without pre-drilling. Thanks to the self-drilling tip, you can effortlessly drill through materials such as aluminum and plastic, significantly reducing installation time.

High-quality stainless steel construction

Made from stainless steel A2 (AISI 304), this screw offers excellent corrosion resistance under normal atmospheric conditions. This makes it suitable for use in damp environments and outdoor applications, without having to worry about rust.

Precise dimensions for versatile use

With a diameter of 3.5 mm and a length of 19 mm, this self-drilling screw is ideal for various light fastening applications. The pan head has a diameter of 6.9 mm and a height of 2.6 mm, ensuring a neat finish after installation.

Suitable for specific material applications

This stainless steel A2 self-drilling screw is specially designed for use in soft metals such as aluminum and for light fastening in plastics. It is important to note that it is less suitable for hard metals or materials with high density.

Technical specifications

• Diameter (d): 3.5 mm
• Length (l): 19 mm
• Head diameter (dk): 6.9 mm
• Head height (k): 2.6 mm
• Drive: Philips PH2
• Material: Stainless steel A2 (AISI 304)
• Standard: DIN 7504N

Application areas

This self-drilling screw is ideal for:

• Fastening thin aluminum sheets
• Mounting plastic components
• Light construction work in damp environments

Note: For applications in aggressive environments such as seawater or chlorine-containing environments, the use of stainless steel A4 is recommended due to its higher corrosion resistance.

Packaging and availability

These self-drilling screws are available in packs of 20 pieces, which is convenient for both small and medium-sized projects. For larger projects, packs of 100 or 1000 pieces are also available.

Installation tips

• Use a Philips PH2 screwdriver or bit for optimal grip and minimal risk of damaging the screw head.
• Make sure the material you are drilling into is suitable for self-drilling screws and falls within the recommended drilling range.
• Avoid excessive force when screwing in to prevent damage to the material or the screw.

With this stainless steel A2 self-drilling screw, you choose a reliable and efficient solution for light fastening applications in soft metals and plastics.
