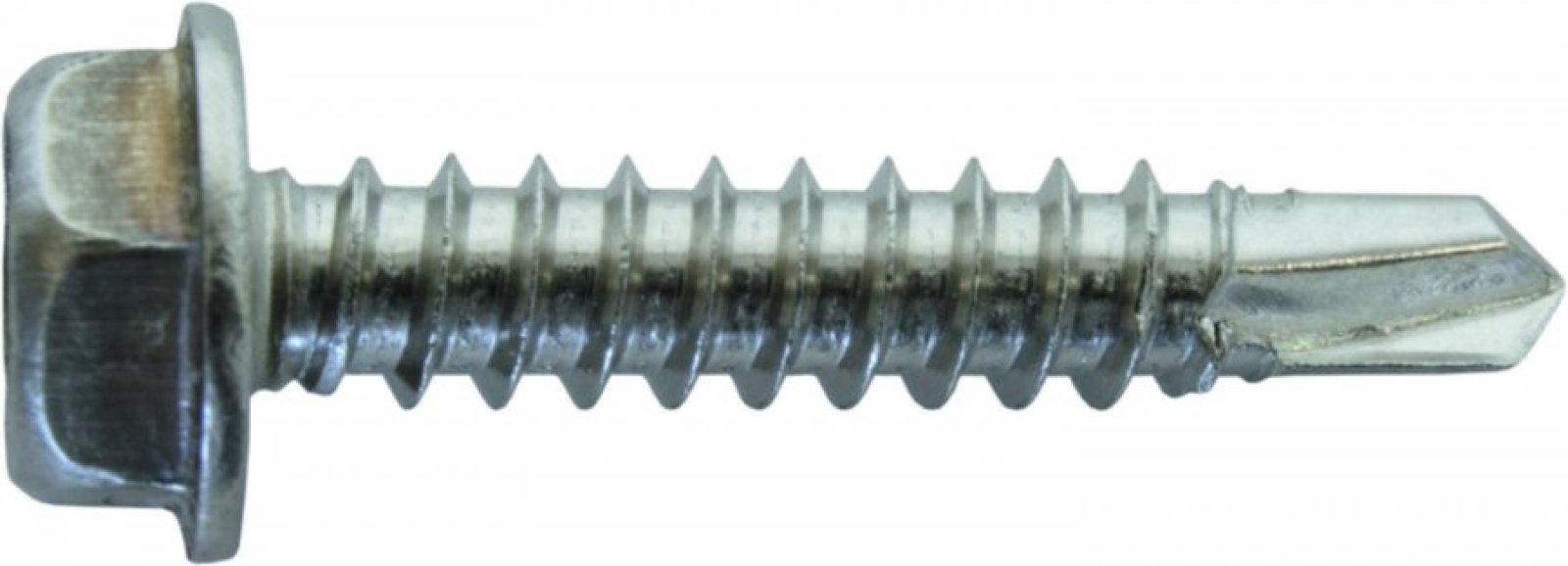

Efficient installation without pre-drilling

With the DIN 7504K hexagon drill screws 6.3x19 mm, you save time and effort when assembling metal components. Thanks to the self-drilling tip, pre-drilling is unnecessary, which significantly speeds up the installation process.

Suitable for various materials

These screws are designed for use in:

• Sheet steel up to 6 mm thick
• Iron
• Aluminium

This makes them versatile for different applications.

Technical specifications

• Diameter: 6.3 mm
• Length: 19 mm (measured excluding screw head)
• Head diameter: 13.2 mm
• Drive: Hexagon head (SW10)
• Material: Steel, zinc-plated
• Standard: DIN 7504K
• Drilling capacity: Up to 6 mm

Advantages of zinc-plated steel

The zinc-plated finish offers:

• Protection against corrosion
• Increased durability
• Suitability for both indoor and outdoor applications

Areas of application

These drill screws are ideal for:

• Fastening metal profiles
• Mounting metal sheets
• General construction applications in building and industry

Packaging

The screws are supplied in a pack of 100 pieces, which is sufficient for medium-sized projects and professional use.

Important notes

• The length of the screw is measured excluding the screw head.
• For optimal performance, the use of a SW10 hex key is recommended.

With these drill screws, you choose a reliable and efficient solution for all your metal assembly work.
