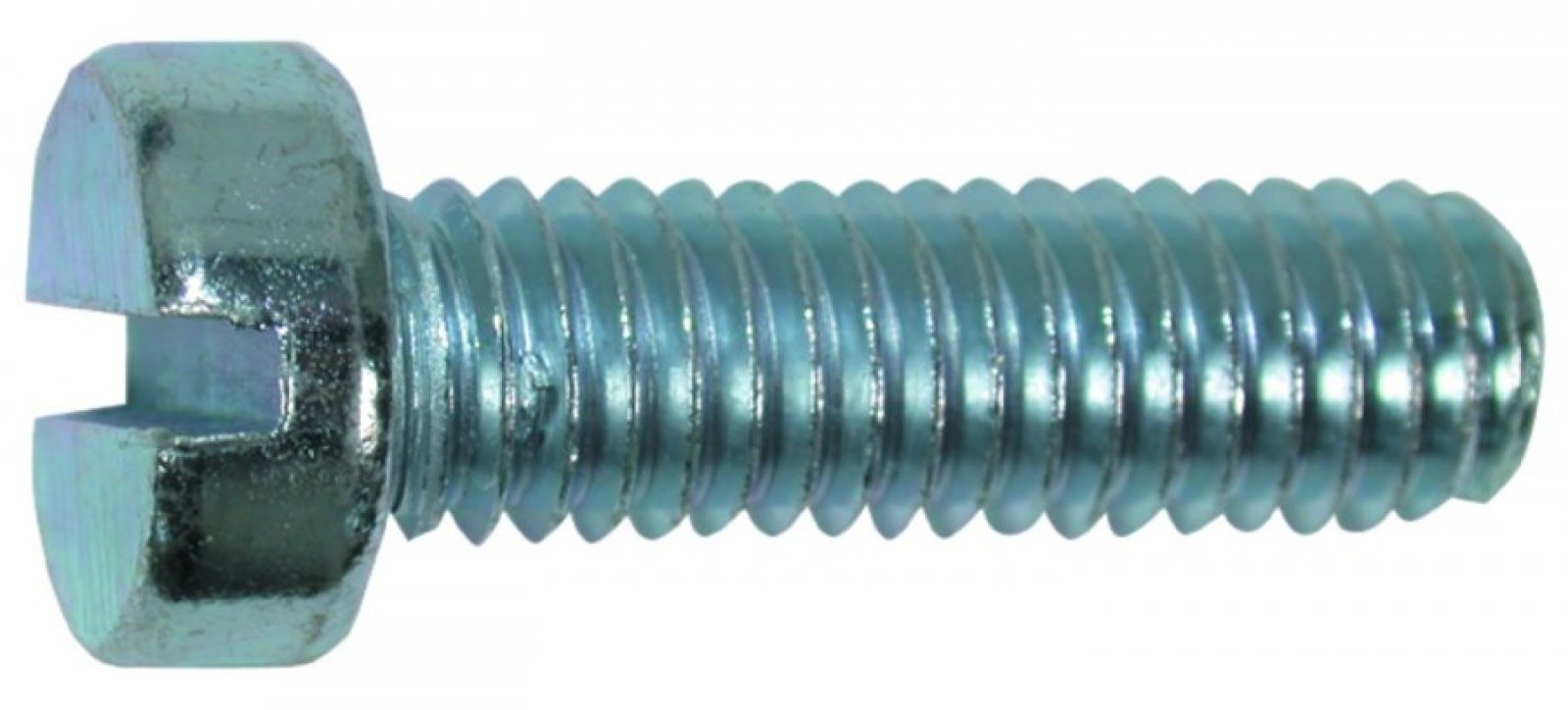

High-quality stainless steel A2 machine screw M5x25 with cylindrical head and slot

This machine screw with cylindrical head and slot is made from stainless steel A2 (AISI 304), which ensures excellent corrosion resistance. With a diameter of M5 and a length of 25 mm, this screw is ideal for various light applications in the automotive sector.

Technical specifications

• Diameter (M): M5
• Length under head: 25 mm
• Head diameter: 8.5 mm
• Head height: 3.3 mm
• Thread pitch: 0.8 mm
• Drive: Slot (slotted) 1.2 mm wide
• Material: Stainless steel A2 (AISI 304)
• Standard: DIN 84 / ISO 1207

Applications and benefits

This screw is suitable for light fastening applications, such as mounting components in cars. The cylindrical head with slot allows for easy installation with a flat screwdriver. Thanks to the stainless steel A2, the screw is resistant to corrosion, which extends its lifespan.

Compatible accessories

For optimal fastening, the following accessories can be used:

• Hex nut DIN934 M5 : For a strong connection.
• Nyloc lock nut DIN985 M5 : Prevents loosening due to vibrations.
• Washer DIN125 M5 : Increases pressure distribution and prevents surface damage.

Quality and standards

This screw meets DIN 84 and ISO 1207 standards, ensuring high quality and reliability. The strength class is 70, which means the screw is suitable for light applications.

Packaging and availability

The screws are available in packs of 200 pieces, which is convenient for both small and larger projects. The packaging ensures the screws remain protected from external influences.

Important considerations

When using these screws, it is important to use the correct tools to prevent damage to the slot. Make sure the screws are properly tightened to guarantee optimal performance.

Summary

This stainless steel A2 machine screw M5x25 with cylindrical head and slot is a reliable choice for light fastening applications in the automotive sector. Thanks to the high-quality materials and precise dimensions, this screw offers a durable and efficient solution for various assembly needs.
