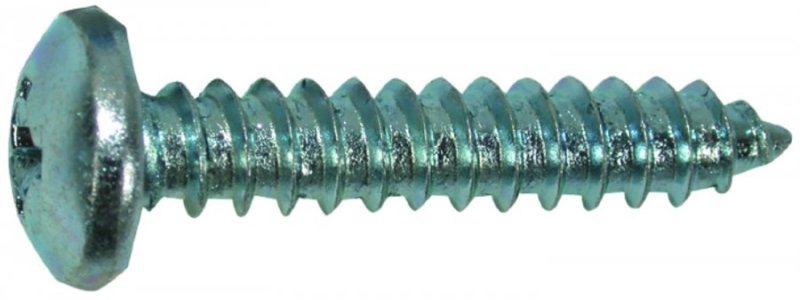

High-quality stainless steel sheet metal screw

This sheet metal screw is made from A2 grade stainless steel (AISI 304), providing excellent corrosion resistance. This makes the screw suitable for both indoor and outdoor applications.

Specifications

• Diameter: 2.9 mm
• Length: 13 mm
• Head shape: Pan head (pancylinder head)
• Drive: Phillips (PH1)
• Standard: DIN 7981C-H

Applications

This screw is ideal for fastening sheet metal, plastic panels, and other thin materials. Thanks to its self-tapping thread, the screw cuts its own thread into the material, ensuring a strong and reliable connection.

Advantages

• Corrosion resistant: Suitable for humid environments thanks to the use of A2 stainless steel.
• Easy installation: The Phillips drive allows for quick and efficient installation.
• Versatile use: Suitable for various applications in both the automotive sector and other industries.

Technical details

• Head diameter (dk): 5.6 mm
• Head height (k): 2.2 mm
• Pitch: 1.1 mm
• Weight per 100 pieces: 0.06 kg

Important considerations

When using these screws in stainless steel materials, it is advisable to pre-drill, as the screws do not cut threads in stainless steel. Ensure that the sheet thickness is less than the pitch of the screw for optimal grip.

Packaging

These screws are supplied in packs of 20, ideal for both small and larger projects.
