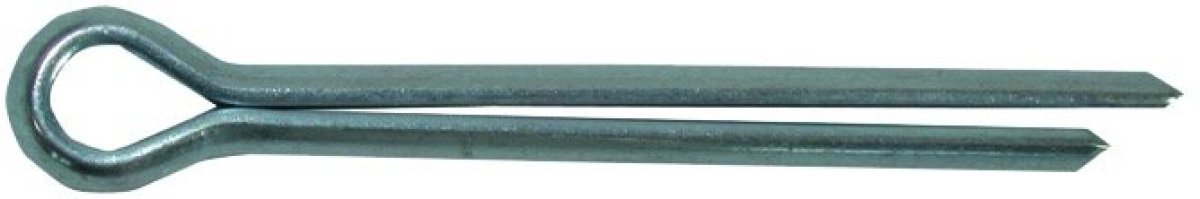

Robust and reliable securing

The stainless steel A2 cotter pin DIN94 4x50 mm is designed to provide strong and reliable securing in a wide range of applications. Thanks to the use of A2 stainless steel, this cotter pin is resistant to corrosion, ensuring a longer lifespan and less maintenance.

Specifications according to DIN94 standard

This cotter pin complies with the DIN94 standard, guaranteeing consistent quality and dimensions. The main specifications are:

• Diameter: 4 mm
• Length: 50 mm
• Material: Stainless steel A2 (304)

Versatile use

The stainless steel A2 cotter pin is suitable for various applications, including:

• Automotive sector: Fastening parts in cars.
• Construction sector: Anchoring construction elements.
• Machine building: Securing moving parts.

Easy installation

Using this cotter pin is simple and efficient. Insert the pin through the part to be secured and bend the ends for a firm fixation. This ensures quick and safe assembly without the need for special tools.

Corrosion resistance for long-term use

The A2 stainless steel offers excellent resistance to corrosion under normal atmospheric conditions and in humid environments. This makes the cotter pin ideal for both indoor and outdoor applications, without worrying about rust formation.

Compliance with international standards

In addition to the DIN94 standard, this cotter pin also meets the ISO 1234 standard, ensuring compatibility and reliability in international applications. This means you can rely on a product that is recognized and used worldwide.

Technical details

• Diameter (d): 4 mm
• Length (L): 50 mm
• Maximum thickness (d max.): 3.7 mm
• Minimum thickness (d min.): 3.5 mm
• Maximum width (c max.): 7.4 mm
• Minimum width (c min.): 6.5 mm
• Approximate width (b ≈): 8 mm

With this stainless steel A2 cotter pin DIN94 4x50 mm, you choose a reliable and durable solution for all your securing needs.
