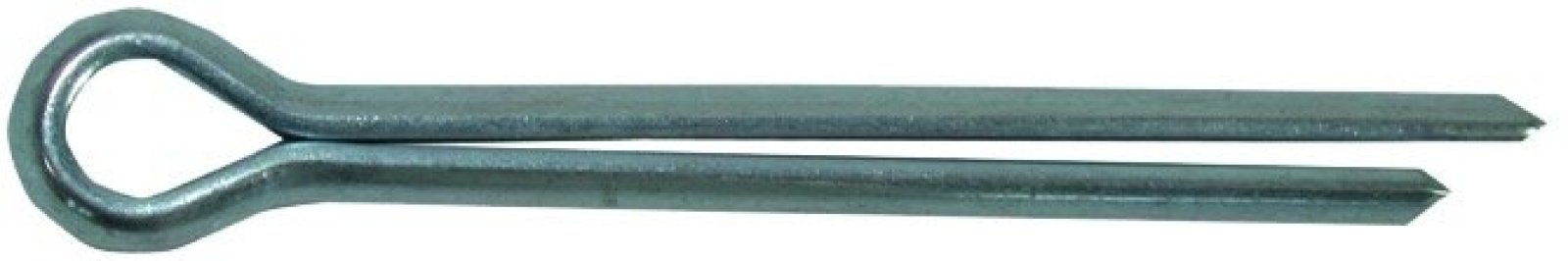

High-quality stainless steel cotter pin

This cotter pin is made from A2 (AISI 304) quality stainless steel, providing excellent corrosion resistance and durability. This makes the pin suitable for both indoor and outdoor use, even in damp or corrosive environments.

Precise dimensions according to DIN 94

With a diameter of 4 mm and a length of 50 mm, this cotter pin meets the DIN 94 standard. The dimensions are as follows:

• Diameter (d): 4 mm
• Length (L): 50 mm
• Maximum leg width (c max.): 7.4 mm
• Minimum leg width (c min.): 6.5 mm
• Maximum leg thickness (d max.): 3.7 mm
• Minimum leg thickness (d min.): 3.5 mm
• Eye loop length (b): approximately 8 mm

Versatile applications

This cotter pin is ideal for securing bolts, nuts, and other fasteners in various sectors, including the automotive industry. Thanks to the stainless steel construction, it withstands heavy loads and environmental influences.

Easy installation

The cotter pin is easy to install: insert the pin through the hole of the part to be secured and spread the ends to ensure a firm hold. This provides a reliable and safe connection.

Compliance with international standards

In addition to the DIN 94 standard, this cotter pin also complies with the following international standards:

• ISO 1234
• NEN 182
• NF E25-774

This guarantees a high level of reliability and compatibility with other fasteners.

Packaging and availability

The cotter pins are supplied in packs of 20, which is convenient for both small and larger projects. They are available directly from stock, so you can get started with your work right away.
