Overview

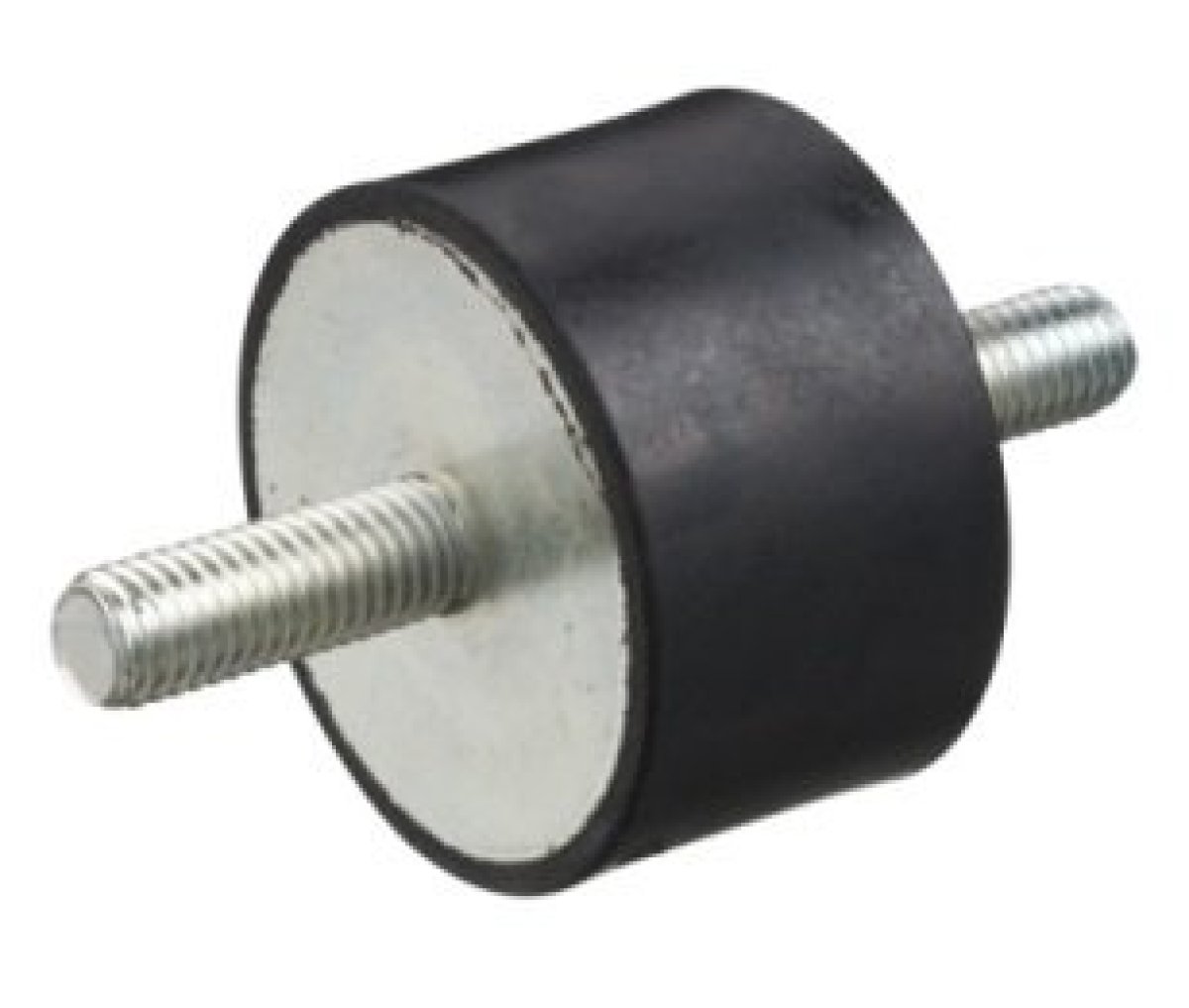

This cylindrical vibration damper of Type A has a diameter of 50 mm and a height of 20 mm. On both sides, it is equipped with an external metric thread of M10 with a length of 28 mm. This design makes it suitable for effectively absorbing vibrations and shocks in various applications.

Material and Hardness

• Rubber material: Natural rubber (NR) with a hardness of 55 Shore A, providing optimal elasticity and damping properties.
• Metal parts: Made of galvanized steel (St-37), offering protection against corrosion and extending service life.

Areas of Application

This vibration damper is versatile and can be used in different sectors:

• Automotive: Reduces vibrations in vehicles, increasing driving comfort.
• Mechanical engineering: Protects machines and equipment from harmful vibrations and shocks.
• Construction: Contributes to the stability and durability of structures by absorbing vibrations.
• Shipping: Reduces vibrations and noise on board ships.

Technical Specifications

• Diameter rubber part (D): 50 mm
• Height rubber part (H): 20 mm
• Thread (G): M10
• Thread length (h): 28 mm
• Hardness: 55 Shore A (+/-5)
• Temperature range: -30°C to +80°C

Advantages

• Effective vibration damping: Absorbs both compression and shear loads, extending the lifespan of equipment.
• Durable material: The use of high-quality natural rubber and galvanized steel guarantees a long service life and reliability.
• Easy installation: Thanks to the double external thread, the damper is easy to mount in various applications.

Important Considerations

• Limited resistance: The natural rubber is less suitable for applications where it comes into contact with oils, lubricants, and greases.
• Maximum load: The specified values are based on static load. For dynamic or fluctuating loads, a reduction of the maximum values should be taken into account.

Summary

This vibration damper Type A 50x20 mm with M10x28 thread offers an effective solution for reducing vibrations and shocks in various applications. Thanks to the high-quality materials and thoughtful construction, it is a reliable choice for professionals in different industries.
