Effective vibration damping for various applications

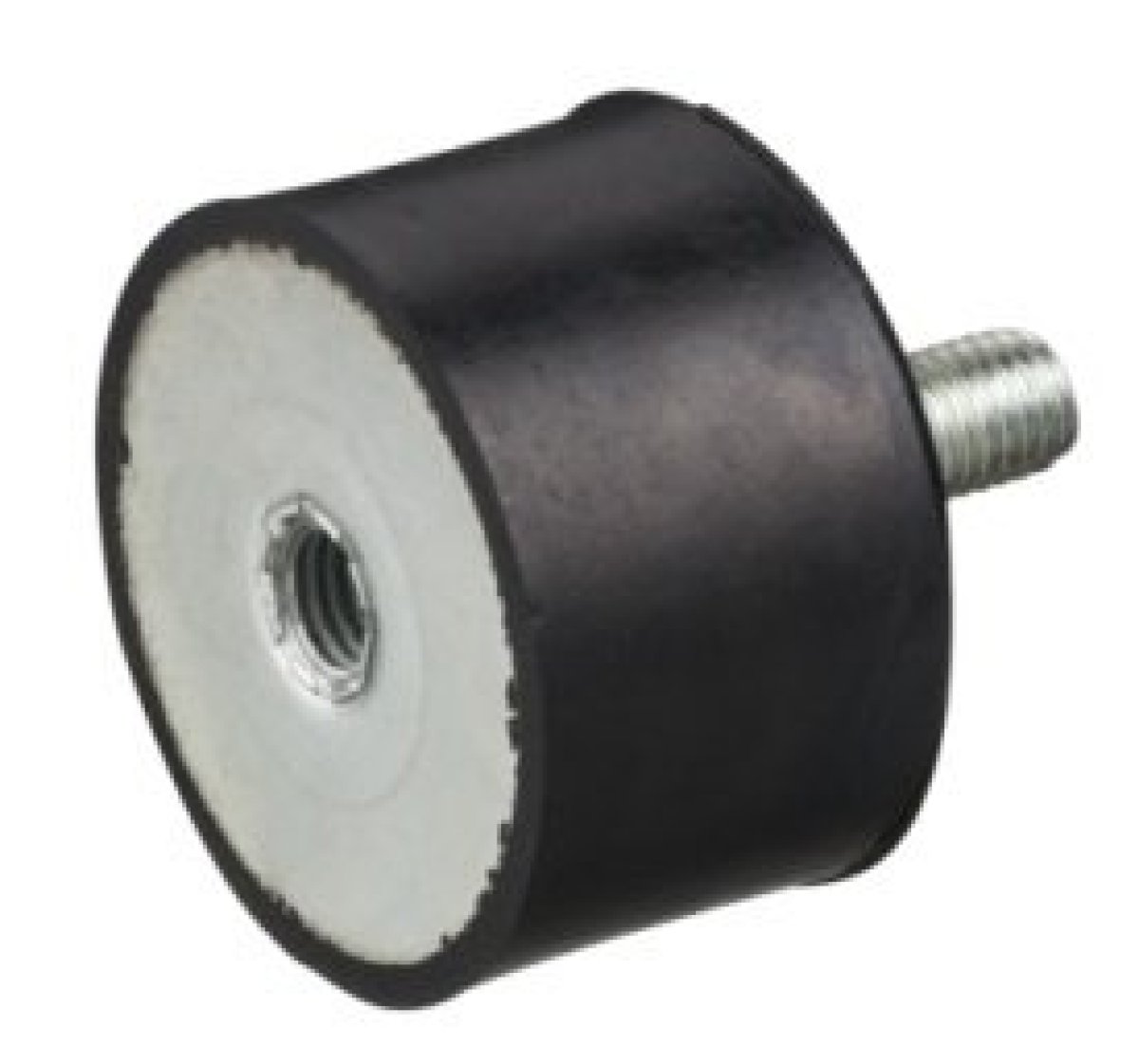

This type B vibration damper is designed to absorb unwanted vibrations and shocks. With a diameter of 25 mm and a height of 25 mm, this damper offers excellent performance in a wide range of applications.

High-quality materials and construction

• Rubber material : Made from natural rubber (NR) with a hardness of 55 Shore A, ensuring optimal elasticity and damping properties.
• Metal parts : Manufactured from galvanized steel S235JR+AR, contributing to the damper's durability and corrosion resistance.

Specifications

• Diameter rubber part (D) : 25 mm
• Height rubber part (H) : 25 mm
• Thread (G) : M6
• Thread length (h) : 18 mm
• Internal thread depth (t) : 6 mm
• Temperature range : -30°C to +80°C

Application areas

This vibration damper is suitable for various sectors, including:

• Equipment and machinery construction
• Structural engineering
• Shipping
• Automotive
• Industry

Important considerations

When used under high dynamic and alternating loads or at high vibration frequencies, it is important to consider a possible reduction in the maximum values.

Limited applicability

This damper is less suitable for applications where frequent exposure to oils, lubricants, and greases occurs.
