Effective vibration reduction for various applications

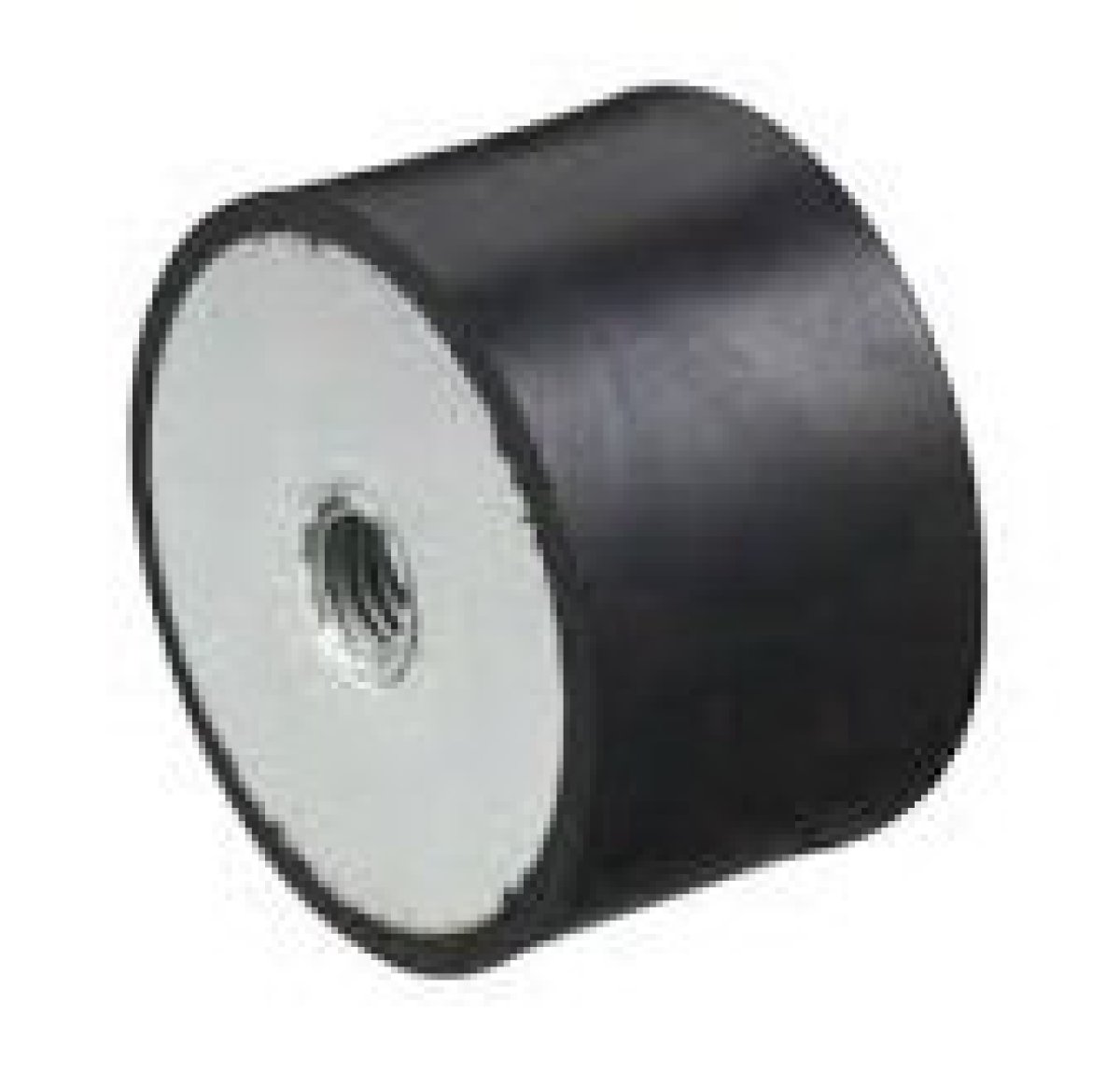

This type C vibration damper with dimensions of 30x30 mm and M8 internal thread is designed to reduce unwanted vibrations and noise in a wide range of applications. Thanks to the use of high-quality natural rubber with a hardness of 55 Shore A, this damper offers an excellent balance between flexibility and strength.

High-quality materials and construction

The damper is made from black natural rubber (NR) and features galvanized steel internal threads, ensuring long service life and resistance to corrosion. The combination of these materials guarantees reliable performance, even under tough conditions.

Technical specifications

• Rubber part diameter: 30 mm
• Rubber part height: 30 mm
• Thread: M8 internal thread
• Thread depth: 8 mm
• Hardness: 55 Shore A
• Elastomer material: Natural rubber (NR)
• Metal parts material: Galvanized steel
• Temperature range: -30°C to +80°C

Areas of application

This vibration damper is suitable for various sectors, including:

• Automotive: Reducing vibrations in vehicles.
• Machine building: Protecting machines from vibration damage.
• Construction: Isolating vibrations in building structures.
• Shipping: Limiting vibrations in ship equipment.
• Industrial applications: General use in industrial machines and equipment.

Installation and use

The damper is easy to install thanks to the M8 internal thread on both sides, ensuring a firm and secure attachment. It is important not to exceed the maximum compression of 15% of the height to guarantee optimal performance. With a height of 30 mm, this means a maximum compression of 4.5 mm.

Important considerations

Although this vibration damper delivers excellent performance in various applications, it is important to note that natural rubber is less suitable for use in environments with oils, lubricants, and greases. In such situations, it is recommended to consider alternative materials that are more resistant to these substances.

With this type C 30x30 mm vibration damper with M8 internal thread, you choose a reliable solution to effectively reduce vibrations and noise in a wide range of applications.
