Robust flange plate for light trailers

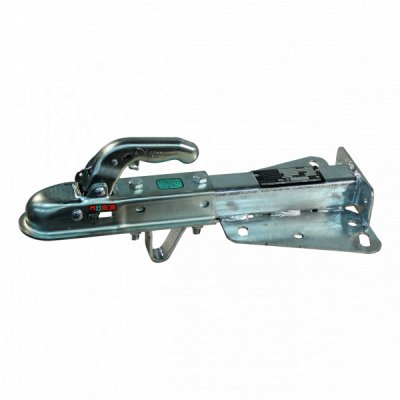

The KNOTT flange plate with KZE7.5 ball coupling is specially designed for unbraked trailers with a maximum permissible weight of 750 kg. Thanks to its sturdy construction and high-quality materials, this flange plate provides a reliable connection between your trailer and the towing vehicle.

Includes jockey wheel bracket for extra convenience

This flange plate is equipped with an integrated jockey wheel bracket, making it easy to mount a jockey wheel. This simplifies maneuvering and parking your trailer, especially on uneven terrain.

Technical specifications

• Brand: KNOTT
• Type: Flange plate with KZE7.5 ball coupling
• Maximum permissible weight: 750 kg
• Nose weight (S): 75 kg
• Drawbar connection: V-connection
• Distance front mounting holes: 110-120 mm
• Distance between front and rear mounting holes: 166 mm
• Distance rear mounting holes: 200 mm
• Material: Galvanized steel

Easy installation and compatibility

The flange plate features a universal hole pattern, making it compatible with various trailer brands and models. Installation is quick and easy, so your trailer is ready for use in no time.

Durability and safety

Made from galvanized steel, this flange plate offers excellent protection against corrosion and wear. This ensures a long service life and increases safety when using your trailer.

Suitable for various applications

Whether you have a boat trailer, utility trailer, or another light trailer, the KNOTT flange plate with KZE7.5 ball coupling is a versatile choice that meets the requirements of different applications in the trailer industry.
