Reliable coupling for heavy-duty applications

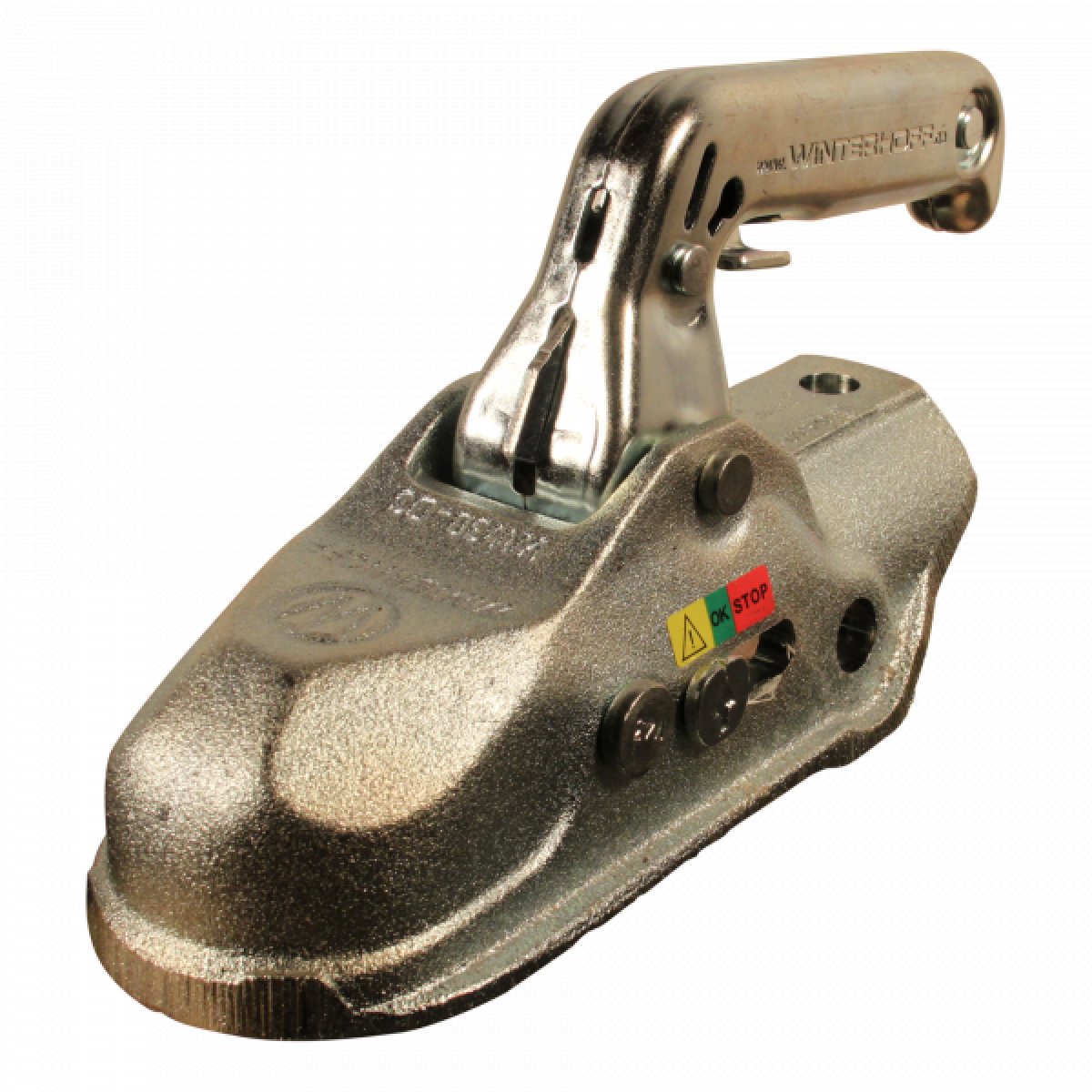

The WINTERHOFF WW30-D3-K1412 is a high-quality ball coupling, designed for use on trailers, boat trailers, and horse trailers. With a maximum load of 3000 kg and a ball pressure of 150 kg, this coupling offers the reliability you need for heavy loads.

Durable material and finish

Made from galvanized cast iron, the WW30-D3-K1412 provides excellent resistance to corrosion and wear. This ensures a long lifespan, even under tough conditions.

Easy and flexible installation

Thanks to the flexible mounting design with both horizontal and vertical holes, installation is simple and efficient. The mounting holes have the following specifications:

• Horizontal: Ø14.5 mm
• Vertical: Ø12.5 mm
• Bolt spacing: 40 mm

Suitable for various drawbar sizes

This ball coupling is suitable for drawbars with a diameter of Ø50 mm, making it a versatile choice for different types of trailers and caravans.

Technical specifications

• Brand: WINTERHOFF
• Type: WW30-D3-K1412
• Maximum load: 3000 kg
• Ball pressure (S): 150 kg
• D/dc value: 26.9 kN
• Material: Galvanized cast iron
• Mounting holes:
• Horizontal: Ø14.5 mm
• Vertical: Ø12.5 mm
• Bolt spacing: 40 mm

Compliance and safety

The WW30-D3-K1412 complies with REACH guidelines, meaning the product is manufactured with attention to health and the environment.

With the WINTERHOFF WW30-D3-K1412, you choose a reliable and durable coupling that is easy to install and suitable for various applications.
