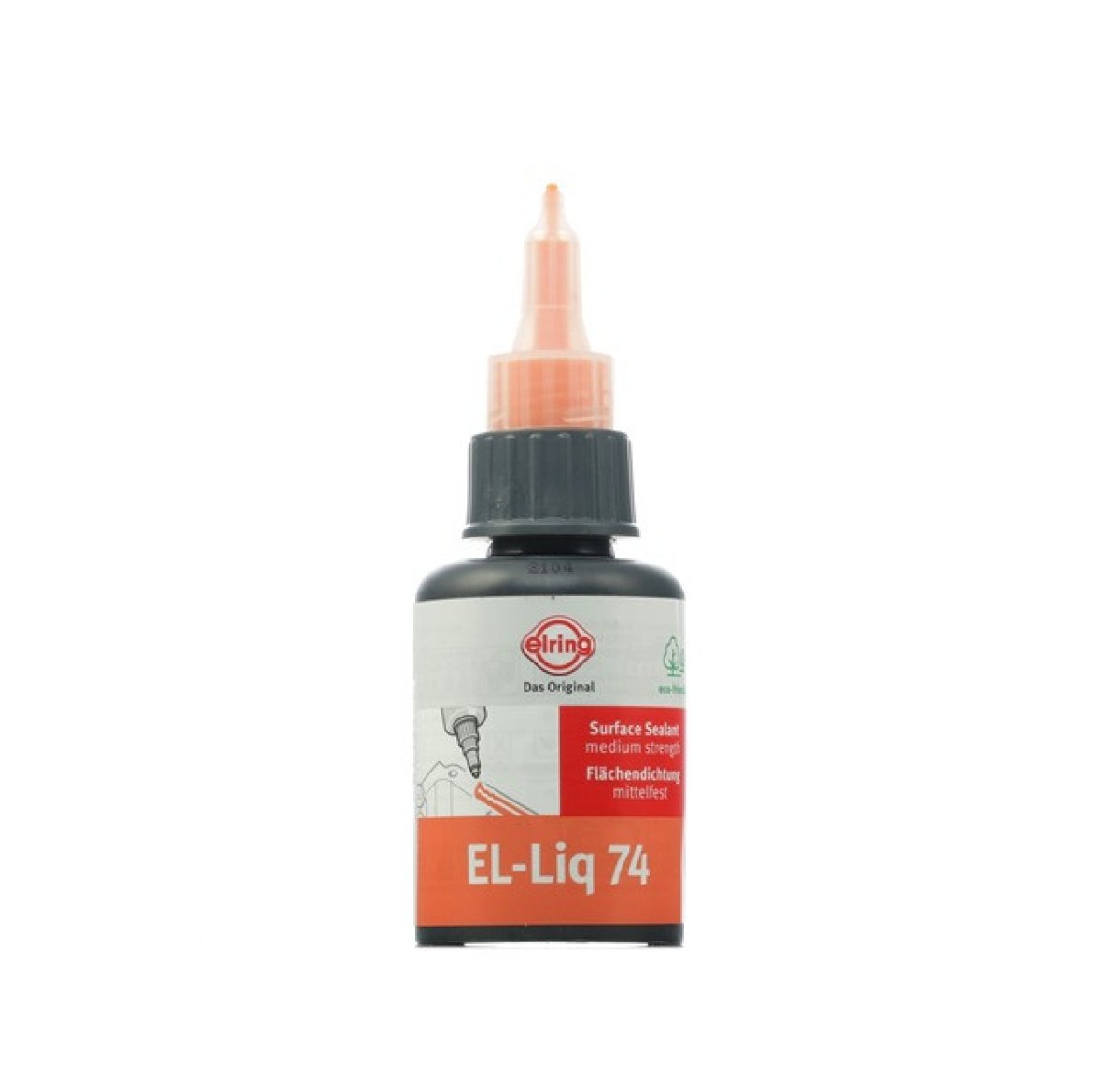

ELRING SEALANT ORANGE|EL-LIQ 74, 50ML

Elring EL-Liq 74 is a liquid synthetic resin-based sealant that has a temperature range of -55°C to + 180°C. If air is excluded, this sealant will harden. EL-Liq 74 is resistant to oil, grease, fuels and coolant. This makes this sealant ideal for sealing metal flanges, cast housings and pumps. Various applications such as: injection pumps, oil pumps and fuel pumps.



Features:

- Liquid gasket

- Color: Orange-brown

- Oil and fuel resistant

- Temperature range: -55 to +180°C

- Maximum thread size: M80

- Maximum sealing gap ≤ 0.35mm

- Density: 1.04 - 1.08

- Content: 50ml



Technical characteristics:

- Density: 1.04 - 1.08 g/ml DIN 542:2003

- Viscosity (25°C): 30,000 - 200,000 mPas

- Handling hardness: 5 - 15 min EN ISO 10964

- Functional hardness: 3 - 6 h

- Full cure: 12 - 24 h

- Breakaway torque: 5 - 10 Nm EN ISO 10964

- Survival torque: 5 - 10 Nm EN ISO 10964



Resistant to:

- Oil

- Grease

- Fuel

- Water

- Coolant

- Weak acids



Applications:

- Injection pump

- Carburetor

- Oil pump

- Fuel pump

- Water pump
