Application and functionality

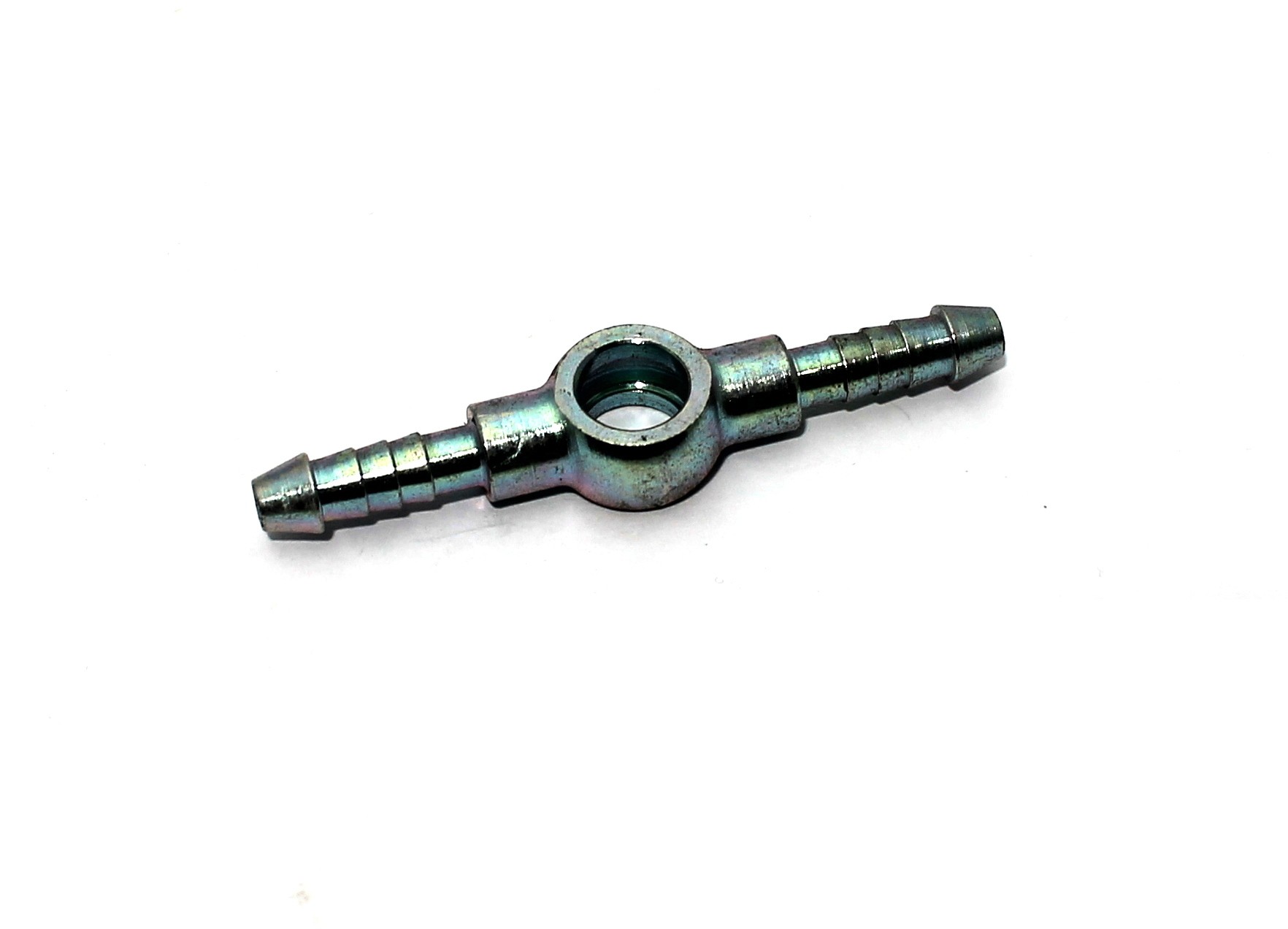

The banjo eye connector with an eye diameter of 12 mm and a connection diameter of 8 mm is an essential component in various hydraulic and pneumatic systems. This type of fitting is often used in automotive fuel and brake lines, where a reliable and leak-free connection is crucial.

Technical specifications

• Eye diameter: 12 mm
• Connection diameter: 8 mm
• Material: High-quality steel or brass, depending on the specific application
• Compatibility: Suitable for various hose types and sizes within the specified diameters

Advantages of the banjo eye connector

• Compact design: Allows installation in confined spaces without compromising performance
• Efficient fluid flow: The design ensures optimal flow of liquids or gases
• Easy installation: Can be quickly and easily mounted with the correct banjo bolt and sealing rings

Areas of application

This banjo eye connector is widely used in:

• Automotive industry: For fuel and brake lines
• Hydraulic systems: Where compact and efficient connections are required
• Pneumatic systems: For connecting air pressure lines

Installation instructions

1. Preparation: Ensure that the connecting surfaces are clean and free of debris.
2. Placement: Position the banjo eye connector at the desired location.
3. Securing: Use a suitable banjo bolt and sealing rings to firmly secure the connection.
4. Inspection: After installation, check for any leaks and ensure proper alignment of the lines.

Maintenance and durability

Regular maintenance and inspection of the banjo eye connector ensure a longer service life and reliable operation. Periodically check for wear or damage and replace components if necessary to guarantee optimal performance.
