High-quality gasket material for various applications

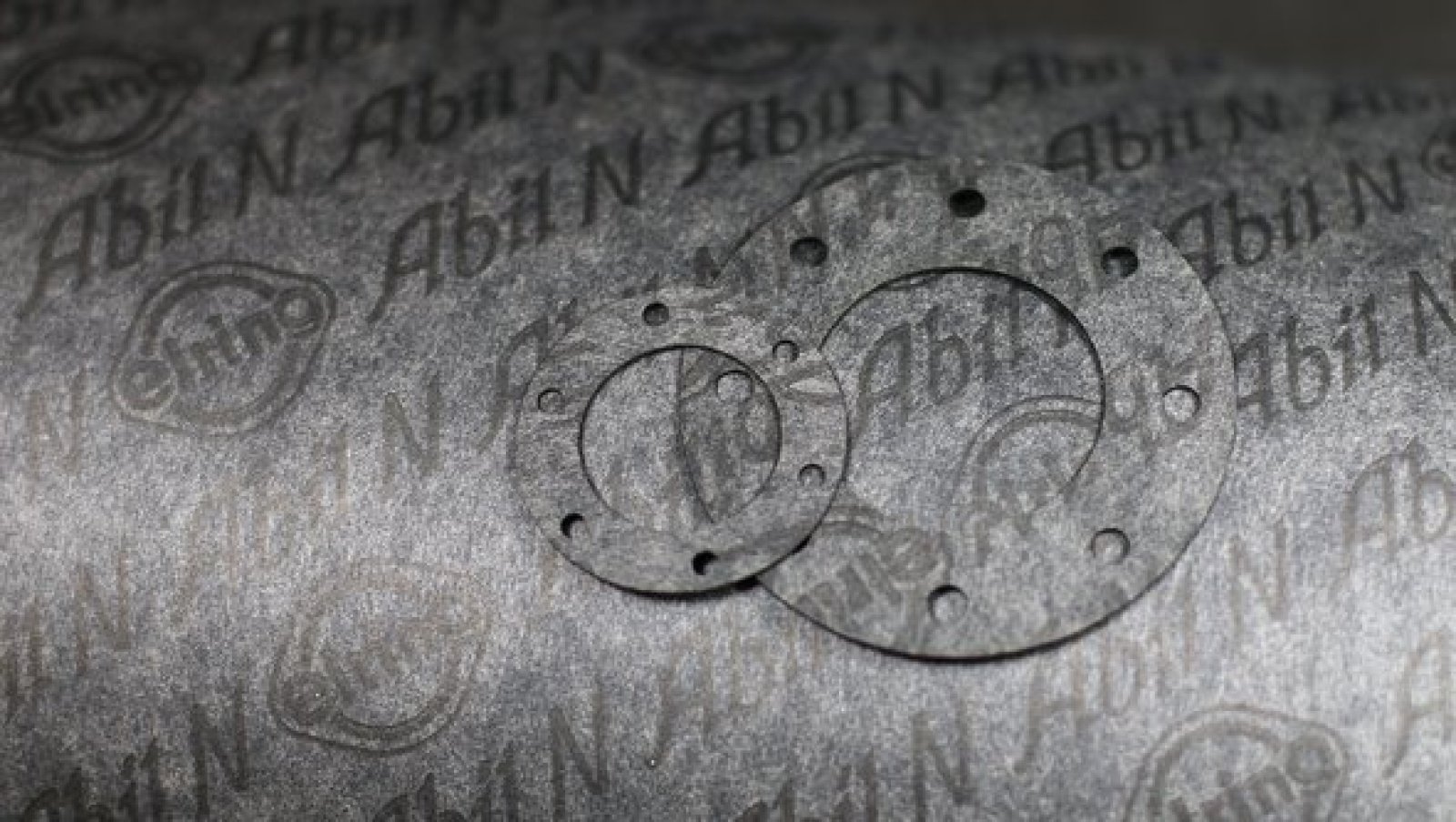

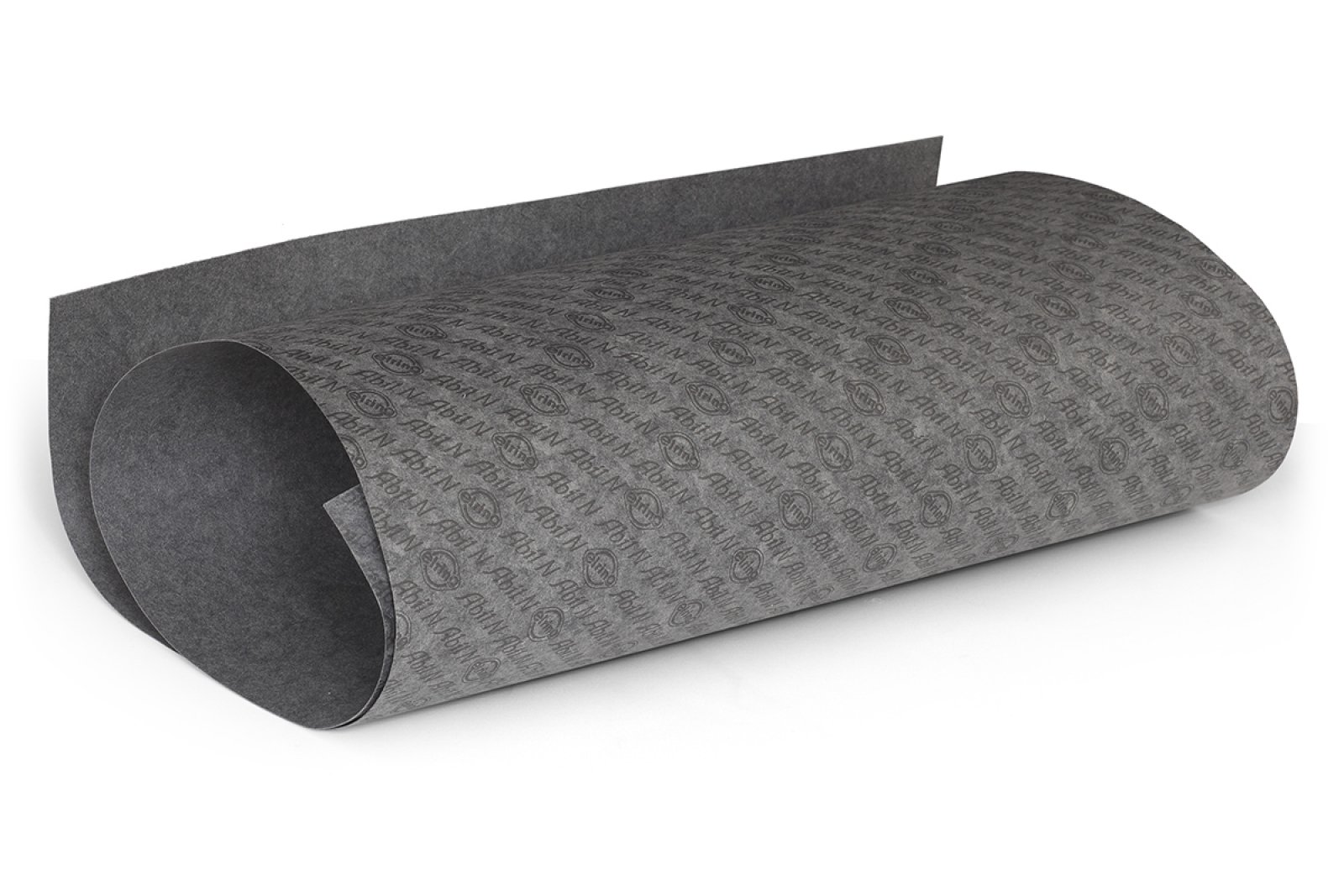

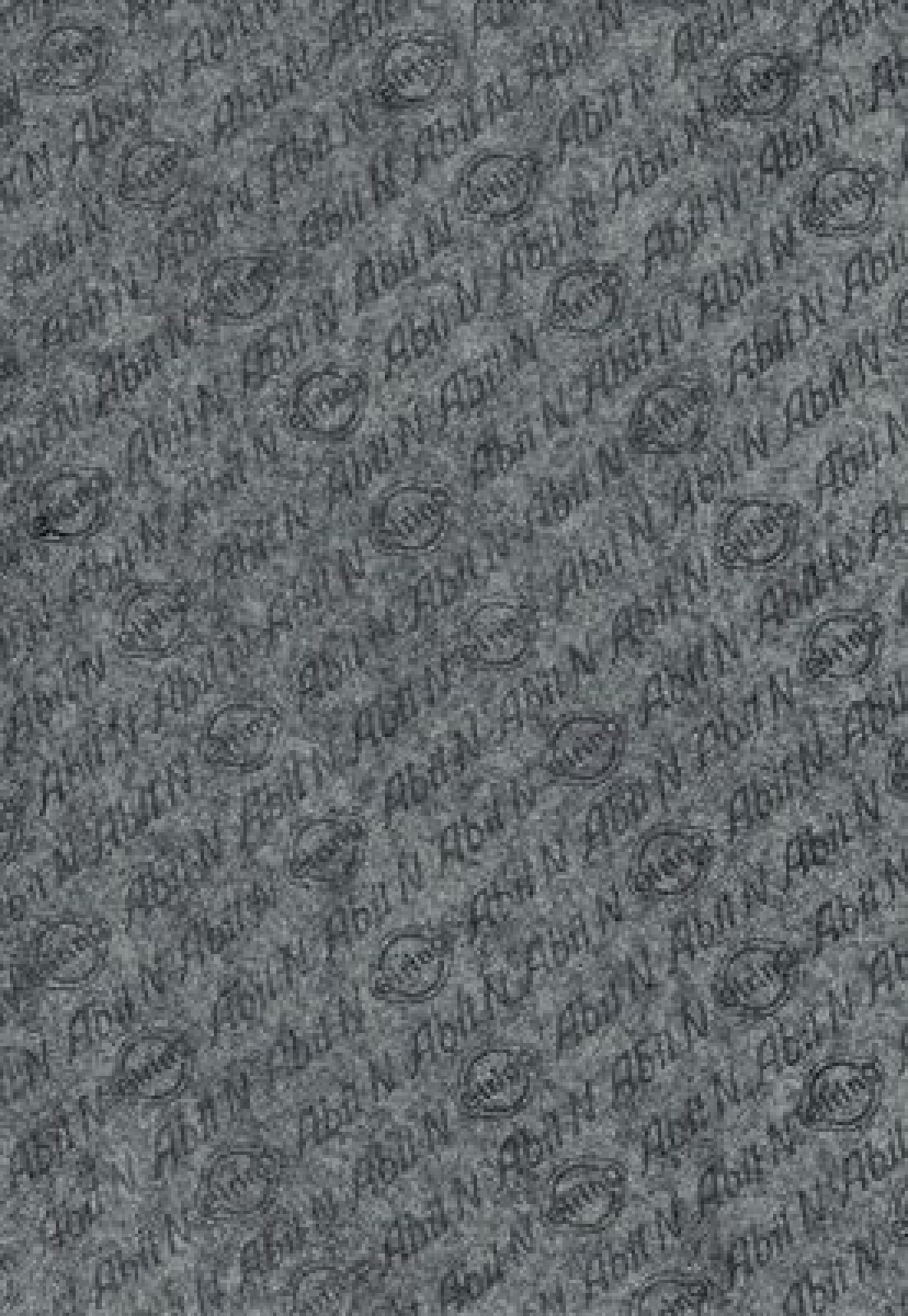

The Elring Abil N gasket paper, 0.50 mm thick and measuring 1000 x 1016 mm, is specially designed for the precise manufacturing of seals. This material is ideal for custom-cutting gaskets for a wide range of uses in the automotive sector and beyond.

Excellent resistance to various media

Abil N is developed to provide effective sealing against both hot and cold oils, greases, fuels, and coolants with corrosion and antifreeze additives. This makes it suitable for use in:

• Steering boxes
• Gearboxes
• Valve covers
• Oil pans
• Hydraulic and pneumatic systems
• Chemical equipment
• Pumps and compressors

Technical specifications

• Thickness: 0.50 mm
• Dimensions: 1000 x 1016 mm
• Temperature range: Continuous up to 120°C, short-term up to 150°C
• Pressure resistance: Up to 10 bar
• Material: Cellulose fibers bonded with NBR (nitrile rubber)
• Asbestos-free: Yes

Easy to cut to size

Thanks to the composition of cellulose fibers and NBR binder, Abil N gasket paper is easy to cut, allowing you to quickly and precisely create the desired seals. This is especially useful for reproducing gaskets for vintage cars, mopeds, and other vehicles.

Versatile use

This gasket paper is ideal for making seals for, among others:

• Shafts
• Fuel pumps
• Oil pumps
• Thermostats
• Water pumps
• Carburetors

With Elring Abil N gasket paper, you have a reliable and versatile material for creating high-quality seals in various applications.
