High-quality gasket material for various applications

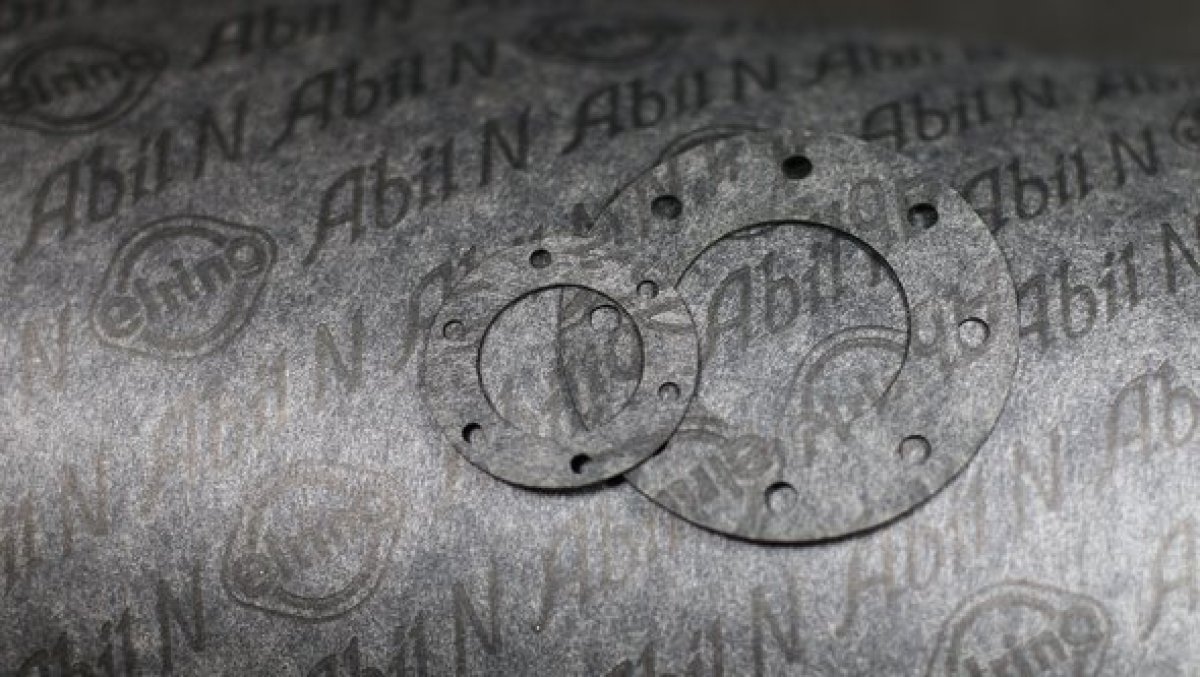

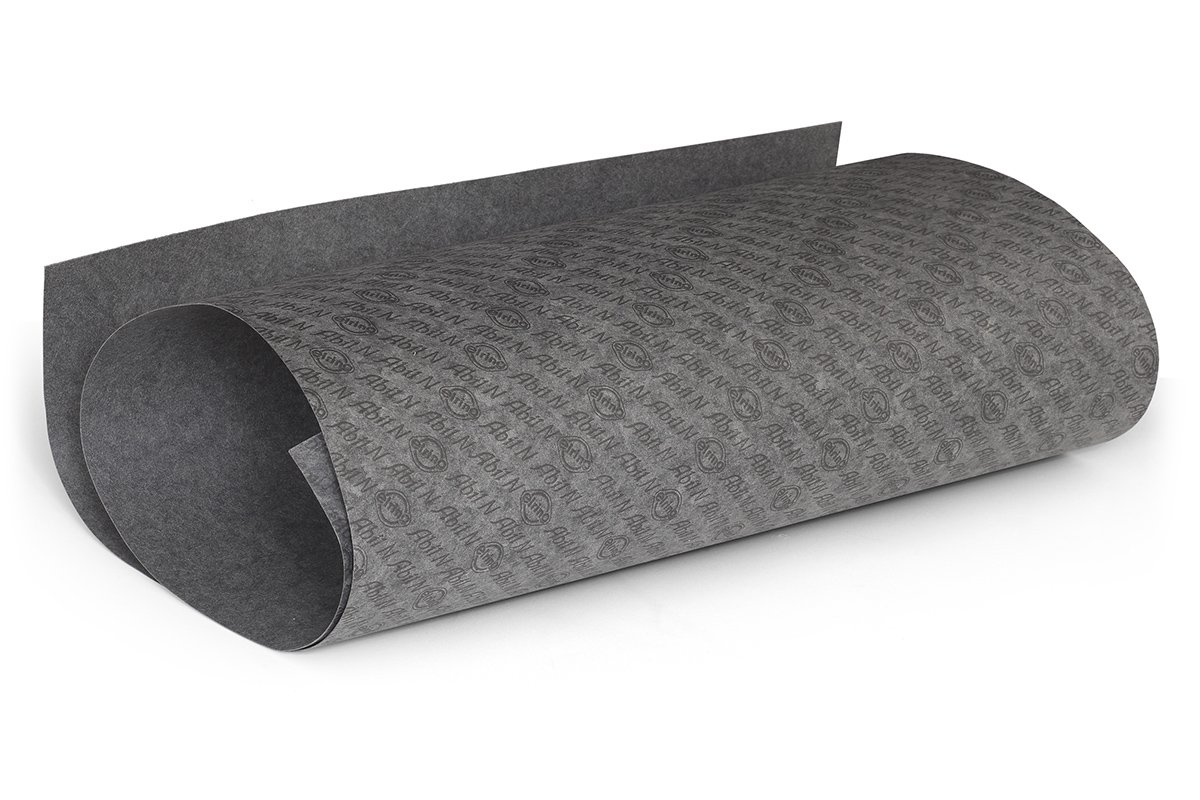

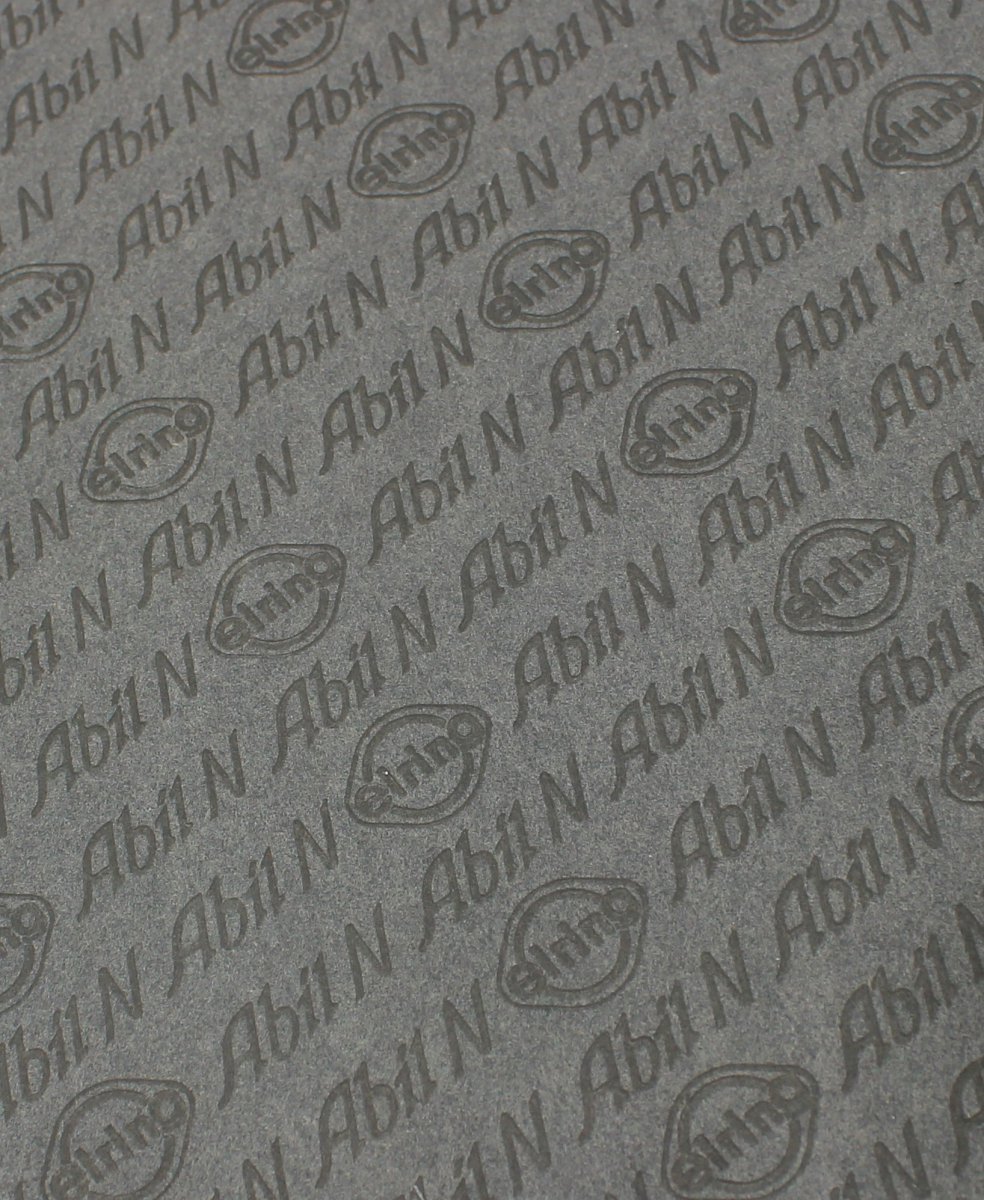

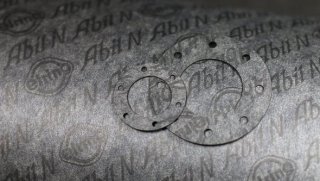

The Elring Abil N gasket paper is specially designed for the precise manufacturing of seals in a wide range of applications. With a thickness of 0.75 mm and dimensions of 500 x 1016 mm, this material offers the flexibility to cut custom gaskets for different vehicles and machines.

Excellent resistance to oils and fuels

This gasket paper is made from cellulose fibers bonded with NBR (nitrile butadiene rubber), resulting in high resistance to both hot and cold oils, greases, and fuels. This makes it ideal for use in engines and other systems where such fluids are present.

Wide temperature range and pressure resistance

• Temperature range: up to 120°C in continuous use, with short-term peaks up to 150°C.
• Pressure resistance: suitable for applications up to 10 bar.

These properties make the gasket paper suitable for demanding conditions in various industrial and automotive applications.

Versatile application possibilities

The Elring Abil N gasket paper is ideal for manufacturing seals for:

• Steering boxes
• Gearboxes
• Valve covers
• Oil pans
• Hydraulic and pneumatic systems
• Chemical equipment
• Pumps and compressors

Easy to cut to size

Thanks to the composition of cellulose fibers and NBR binder, the gasket paper is easy to cut, allowing you to quickly and accurately create the desired seals. This is especially useful for restoring vintage cars, mopeds, and other vehicles for which standard gaskets are hard to find.

Asbestos-free and safe to use

The Elring Abil N gasket paper is completely asbestos-free, contributing to a safer working environment and meeting current health and safety standards.

Summary of specifications

• Thickness: 0.75 mm
• Dimensions: 500 x 1016 mm
• Temperature range: up to 120°C continuous, short-term up to 150°C
• Pressure resistance: up to 10 bar
• Resistant to: oils, greases, fuels, and coolants with corrosion and antifreeze additives
• Material: cellulose fibers with NBR binder
• Asbestos-free

With Elring Abil N gasket paper, you have a reliable and versatile material for manufacturing high-quality seals in a variety of applications.
