Robust construction for reliable fastening

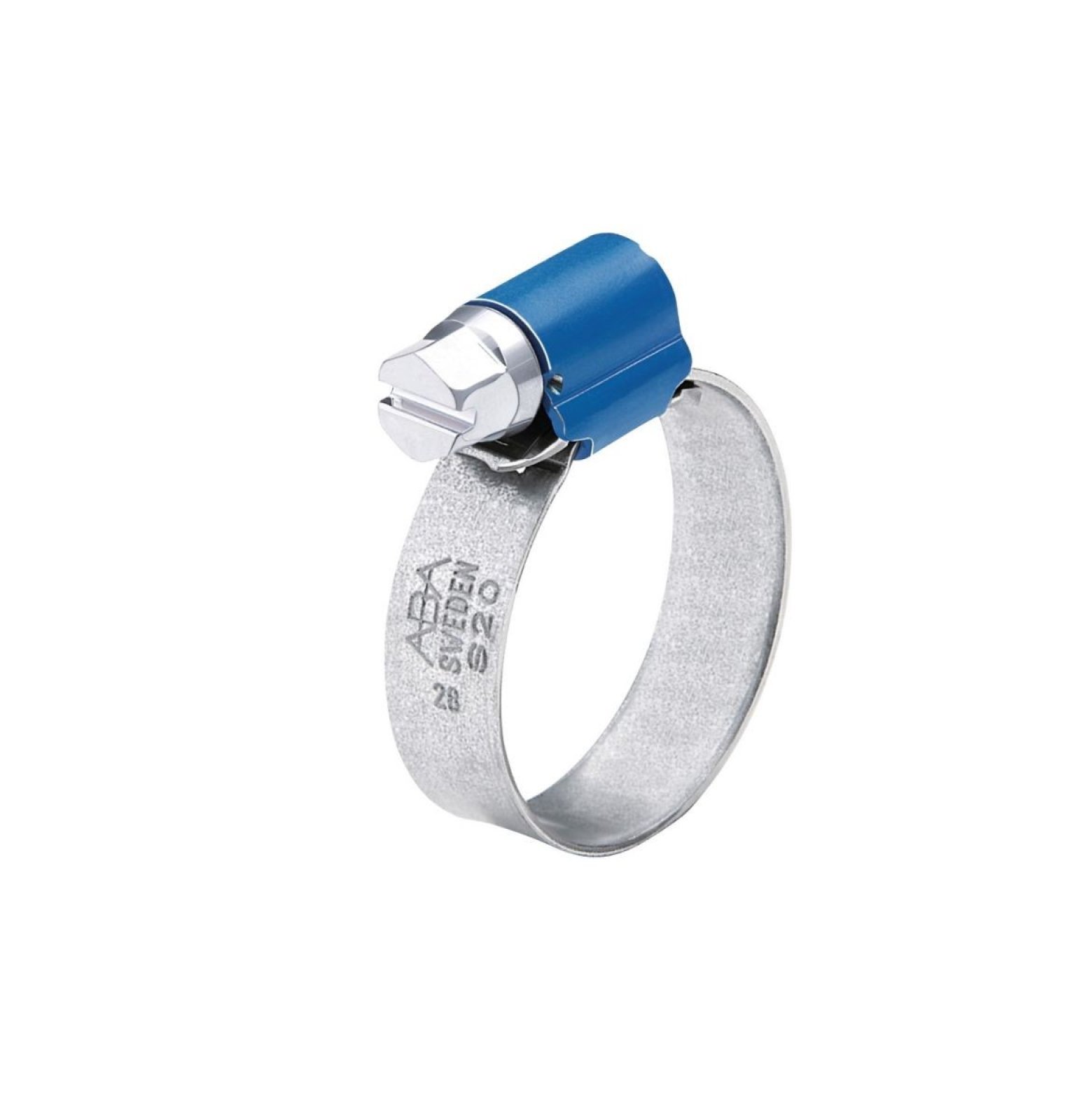

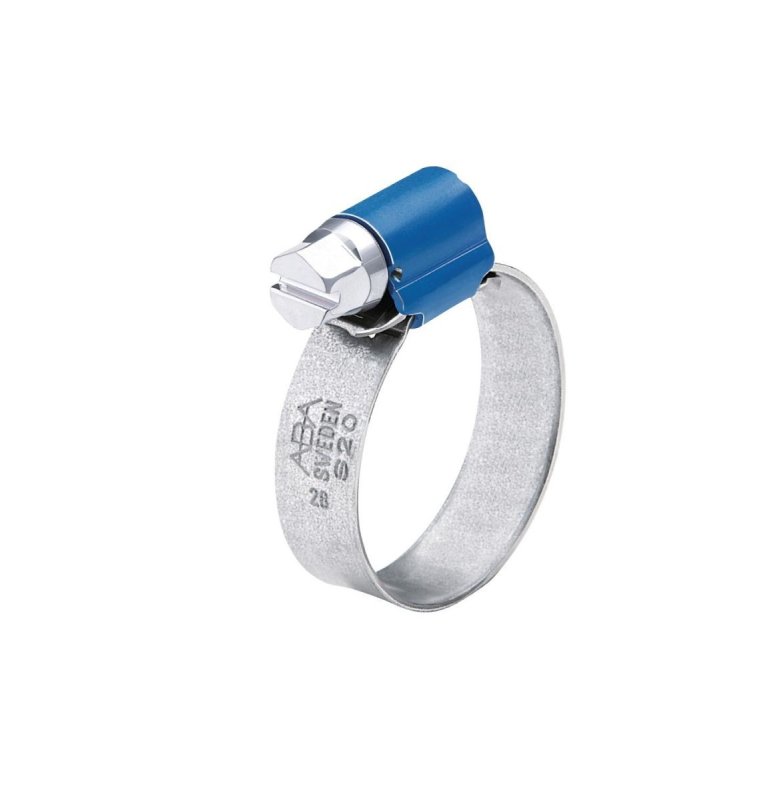

The ABA hose clamp with a band width of 9 mm is designed for secure and safe fastening of hoses with a diameter between 44 and 56 mm. Thanks to the one-piece pressed worm housing, this clamp offers high clamping force and a high breaking torque, ensuring a reliable connection.

High-quality material and corrosion resistance

Made from galvanized steel, this hose clamp provides excellent protection against corrosion. This makes the clamp suitable for various applications, even in environments where moisture and other corrosive elements are present.

User-friendly design

The hose clamp features rolled band edges and a smooth underside, which prevents damage to the hose during installation. The tightening mechanism with external hex and slotted drive allows the clamp to be tightened easily and precisely with standard tools.

Technical specifications

• Clamping range: 44 - 56 mm
• Band width: 9 mm
• Material: Galvanized steel
• Tightening mechanism: External hex with slotted drive
• Recommended tightening torque: 4 - 5 Nm

Application possibilities

This hose clamp is ideal for use in various sectors, including the automotive industry, agriculture, and industrial applications. Whether it's securing coolant hoses in cars or fastening pipes in machines, this clamp offers the reliability you need.

Quality standards and certification

The ABA hose clamp complies with the DIN 3017 standard and has a quality class of W1, which stands for a high standard in material and construction quality. This guarantees a long service life and optimal performance in various applications.

Available variants

In addition to this specific size, other clamping ranges and band widths are also available within the ABA range. This offers the flexibility to choose the right clamp for every application.

Installation tips

For optimal performance, it is important to install the hose clamp correctly. Make sure the clamp is placed evenly over the hose and tighten it to the recommended torque of 4 - 5 Nm. This prevents damage to the hose and ensures a safe and leak-free connection.
