Robust construction for heavy-duty applications

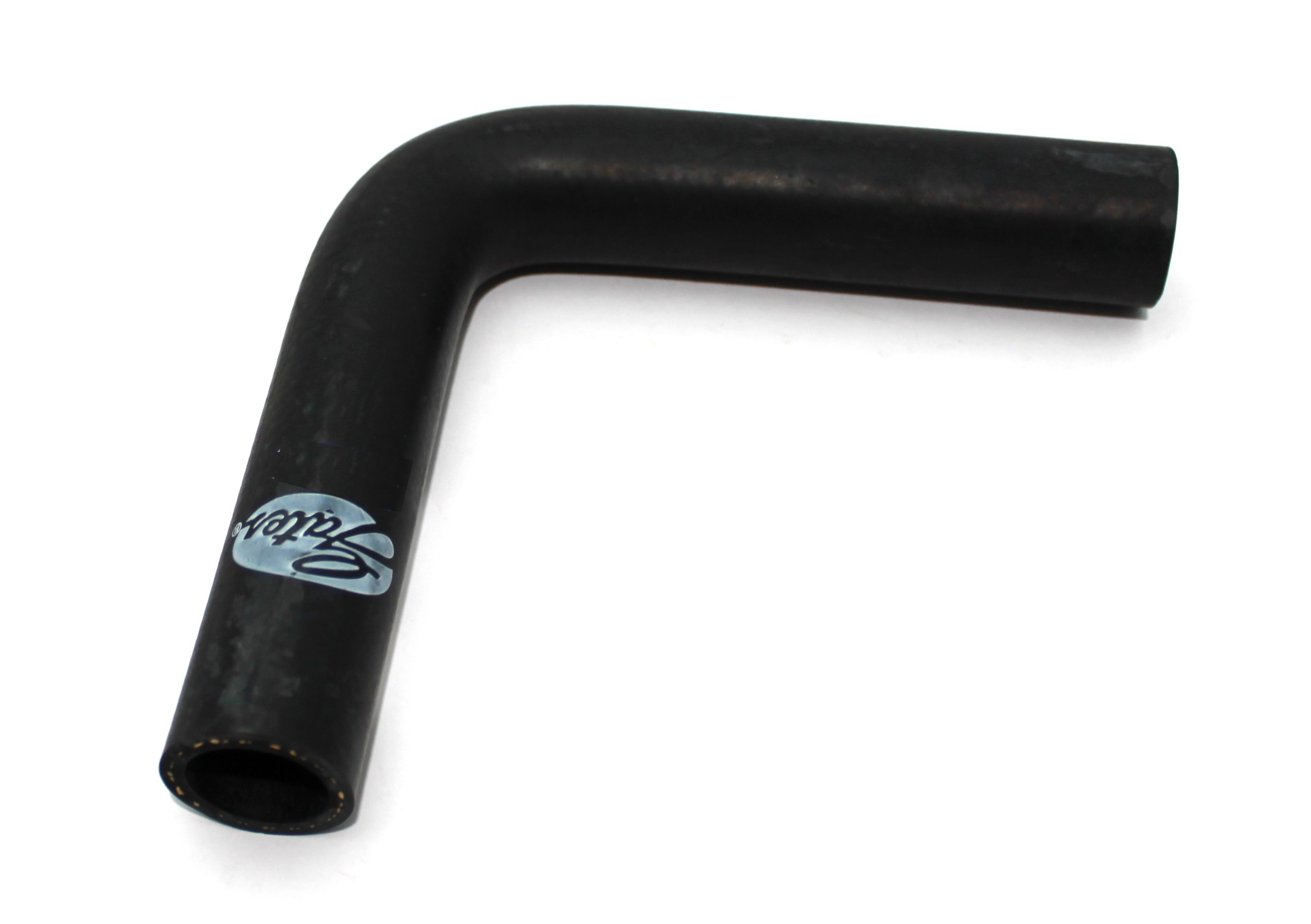

The GATES curved hose Ø22mm - 150mm is designed for heavy-duty applications. Thanks to the symmetrical 90° bend and an inner diameter of 22mm, this hose is ideal for various industrial and automotive uses. The length of 150mm on both ends provides ample flexibility for installation.

Resistant to extreme conditions

This hose is made from high-quality EPDM (Ethylene Propylene Diene Monomer), ensuring excellent resistance to electrochemical degradation, a common cause of hose failure. Additionally, the hose withstands high temperatures, ranging from -40°C to +100°C, with temporary peaks up to +110°C.

Reinforced interior for extra durability

The extra thick and resilient interior of the hose prevents leaks and hardening caused by heat. This ensures a longer lifespan and reliable performance, even under tough conditions.

Resistance to various influences

The GATES curved hose is resistant to:

• Heat
• Coolants
• Ozone
• Weather conditions

This makes the hose suitable for use in a wide range of environments and applications.

Easy installation and adjustment

Thanks to the symmetrical 90° bend and the length of 150mm on both ends, the hose is easy to install and cut to size. This offers flexibility for adapting to specific needs and applications.

Technical specifications

• Inner diameter: 22mm
• Length: 150mm on both ends
• Material: EPDM
• Temperature range: -40°C to +100°C, temporary up to +110°C
• Working pressure: 4 bar

With these features, the GATES curved hose Ø22mm - 150mm offers a reliable and durable solution for various heavy-duty applications.
