Intuitive operation with 7-inch touchscreen

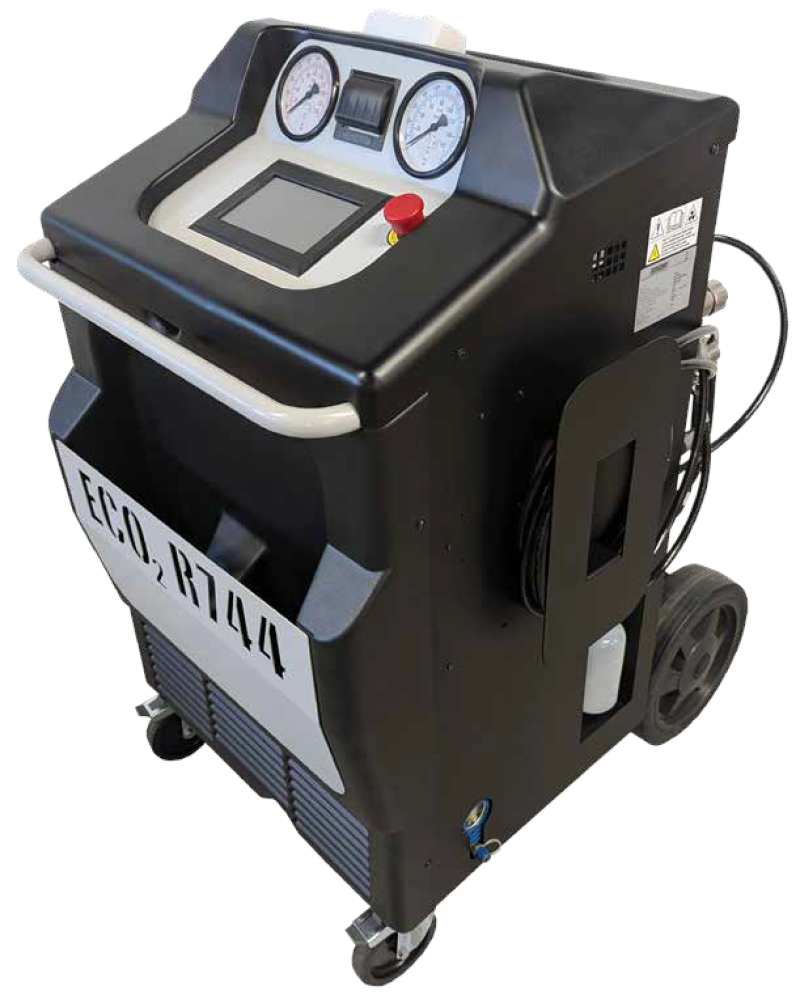

The Ecotechnics ECK R744 is equipped with a bright 7-inch color touchscreen, allowing you to easily and quickly navigate through the menus. Thanks to the Linux operating system and the user-friendly interface with images, icons, and a virtual keyboard, operation is extremely intuitive. Within 15 seconds after switching on, the machine is ready for use, ensuring an efficient workflow.

Powerful performance for various applications

With a dual vacuum pump of 142 l/min, the ECK R744 is suitable for both standard vehicles and larger systems such as buses and trains. This powerful pump guarantees an effective vacuum phase, essential for drying the system, which is particularly important for CO₂ systems. The machine features automatic service valves and a thermal printer for recording service data.

Advanced safety features

Safety is central to the ECK R744. The software-controlled processes include all necessary control instructions and continuously monitor the CO₂ concentration in the environment. This prevents elevated CO₂ levels in the vehicle or workshop. In addition, there is an integrated hybrid function for flushing service lines and internal circuits, indispensable for safe maintenance of systems with an electric compressor.

Flexible and efficient service options

The machine is equipped with 3-meter-long service hoses, providing flexible connection to the vehicle. Large manometers with a diameter of 100 mm offer clear pressure measurements. Replacing R744 cylinders of different sizes is easy thanks to the protective cover and the Swift safety belt. The machine supports cylinders with a gross weight of up to 50 kg, a recommended height of 70-120 cm, and a diameter of 17.8-20.3 cm.

Connectivity and updates

For optimal operation, the ECK R744 offers online updates via a USB interface or direct Wi-Fi connection. This ensures that the machine is always up to date with the latest software and features. The efficient internal ventilation prevents internal components from freezing, which benefits the reliability and lifespan of the machine.

Environmentally friendly packaging

During the production and delivery of the ECK R744, attention has been paid to environmental friendliness. The packaging is made of wood and paper, without the use of polystyrene, contributing to a more sustainable choice for your workshop.

• 7-inch color touchscreen for intuitive operation
• Dual 142 l/min vacuum pump suitable for large systems
• Continuous monitoring of CO₂ concentration for increased safety
• Integrated hybrid function for safe maintenance of electric compressors
• 3-meter-long service hoses and large 100 mm manometers
• Easy replacement of R744 cylinders with Swift safety belt
• Online updates via USB or Wi-Fi for up-to-date functionality
• Environmentally friendly packaging without polystyrene

With the Ecotechnics ECK R744, you have an advanced, safe, and user-friendly solution for maintaining R744 air conditioning systems in your workshop.
