Robust and durable construction

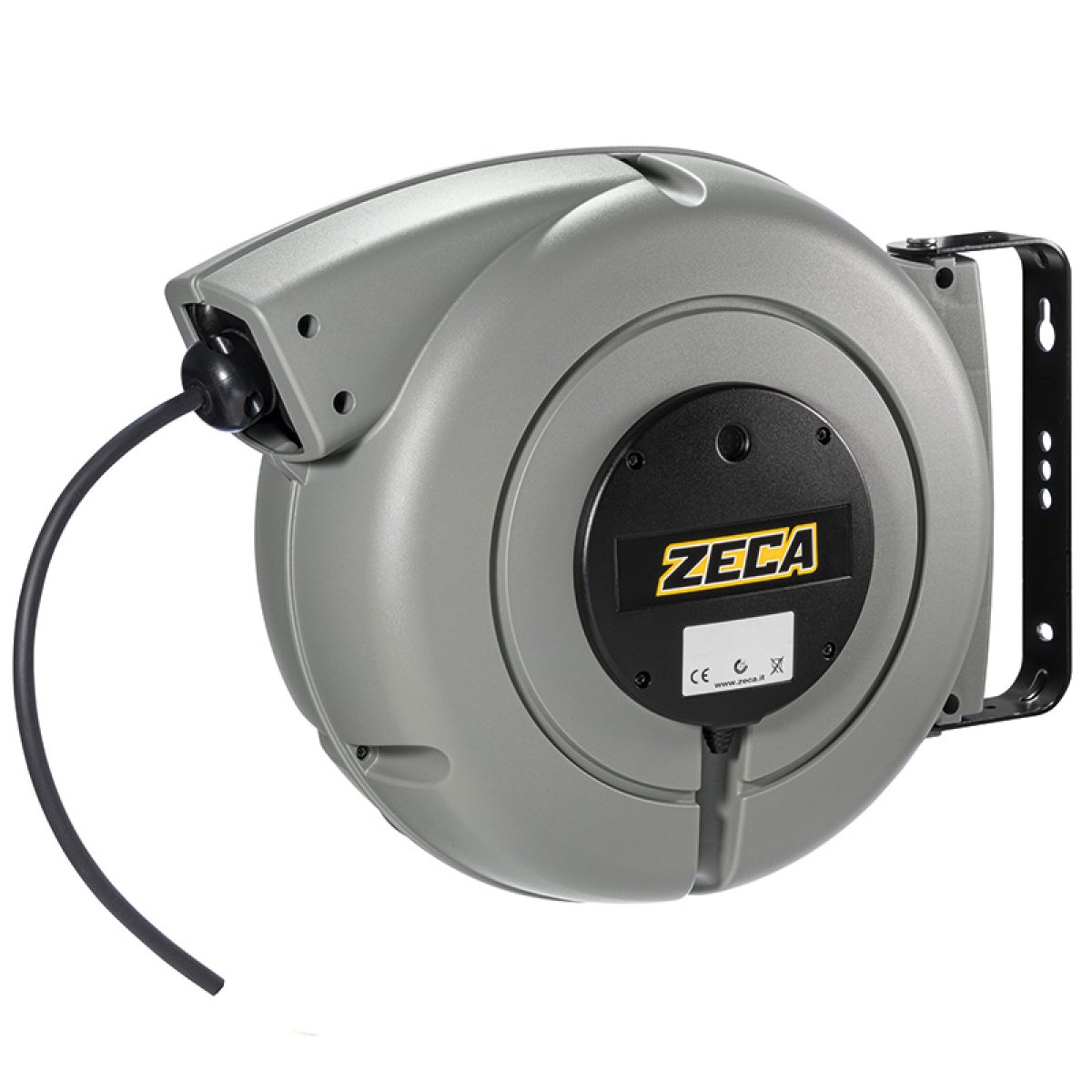

The ZECA Electric Cable Reel 3G2.5 20+2 meters is designed for intensive use in demanding environments. The housing is made of impact-resistant plastic, providing high resistance to shocks and wear. This ensures a long lifespan, even with daily use in professional workshops.

Automatic rewind function for ease of use

Thanks to the automatic rewind system, the cable rolls up smoothly and quickly, without knots or twists. This saves time and reduces the risk of cable damage. The mechanism can be easily switched on or off, depending on the application.

Flexible and long cable

The reel is equipped with a flexible PVC cable of 20+2 meters with a cross-section of 3G2.5 mm². This offers sufficient length and capacity for various applications, from construction sites to garages. The cable is resistant to temperatures from -5°C to 50°C, ensuring reliable performance under different conditions.

Safety and reliability

The ZECA cable reel features double grounding contact and slip rings insulated up to 2.5 kV, contributing to safety during use. The IP42 protection class provides protection against solid objects larger than 1 mm and dripping water at an angle of up to 15 degrees.

Technical specifications

• Cable length: 20+2 meters
• Cable cross-section: 3G2.5 mm²
• Housing material: Impact-resistant plastic
• Automatic rewind system: Yes, with switchable mechanism
• Temperature range: -5°C to 50°C
• Protection class: IP42
• Slip ring insulation capacity: 2.5 kV
• Maximum voltage: 500V
• Power wound: 2.0 kW at 230V
• Power unwound: 3.0 kW at 230V

Easy installation and versatility

The reel comes with a swiveling wall bracket, making it easy to mount on the wall and rotate 180° for optimal flexibility. This makes the reel suitable for various applications, from industrial environments to garages and workshops.
