Robust housing for intensive use

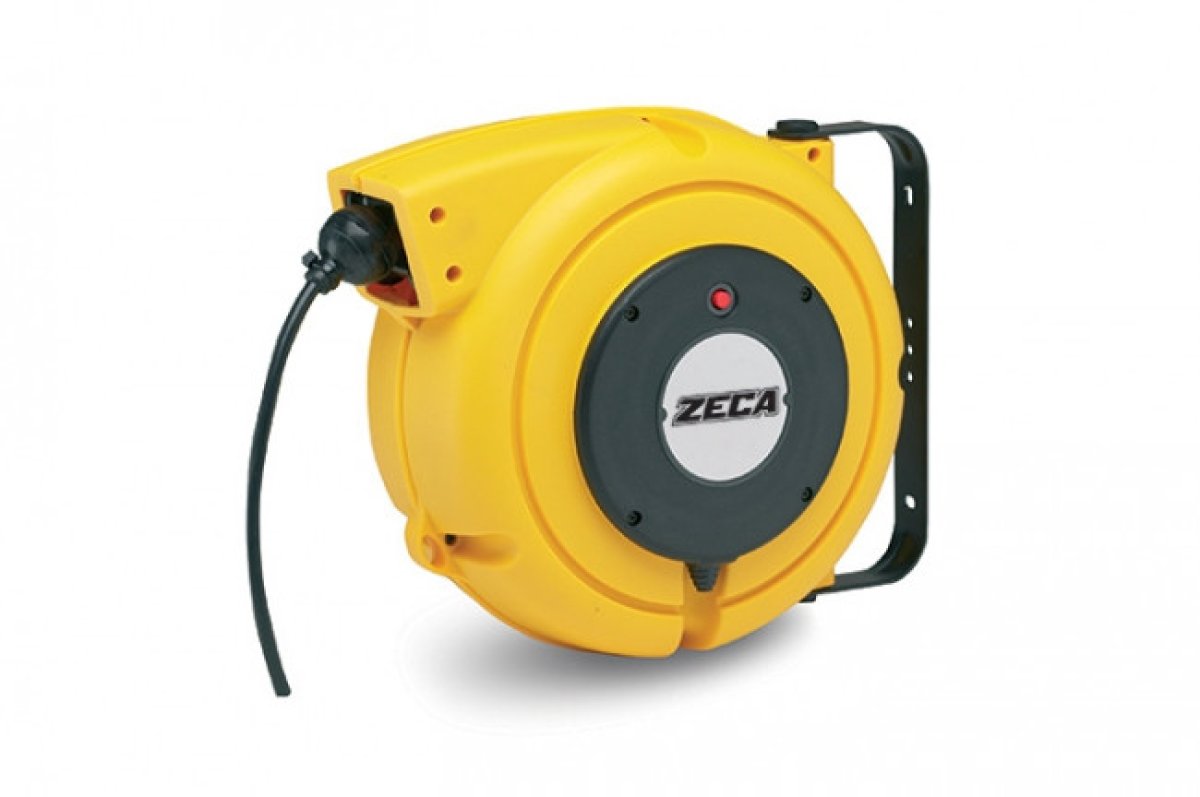

The ZECA electric cable reel is designed with a shock-resistant plastic housing, ensuring durability and reliability in demanding environments. This sturdy construction protects the internal components from damage and extends the product's lifespan.

Flexible and powerful cable

Equipped with a 10-meter H05VV-F 3G2.5 mm² PVC cable, this reel offers sufficient reach and flexibility for various applications. The cable is suitable for a nominal voltage up to 500V and can handle a maximum power of 2500W when fully extended, and 1900W when rolled up at an ambient temperature of 20°C.

User-friendly retraction mechanism

The automatic retraction mechanism with a click function every 50 cm makes it easy to set the desired cable length and prevents unwanted rewinding. If desired, the click mechanism can be disabled for applications where constant tension is required, such as in machine construction.

180° rotatable mounting bracket

The included metal wall bracket is 180° rotatable, allowing the reel to be positioned flexibly and the cable to be pulled out in different directions. This facilitates use in various work environments and increases efficiency.

Safety features

For extra safety, the cable reel is equipped with thermal protection to prevent overheating. In addition, it features double grounding contact and a slip ring insulated up to 2.5 kV, contributing to safe operation.

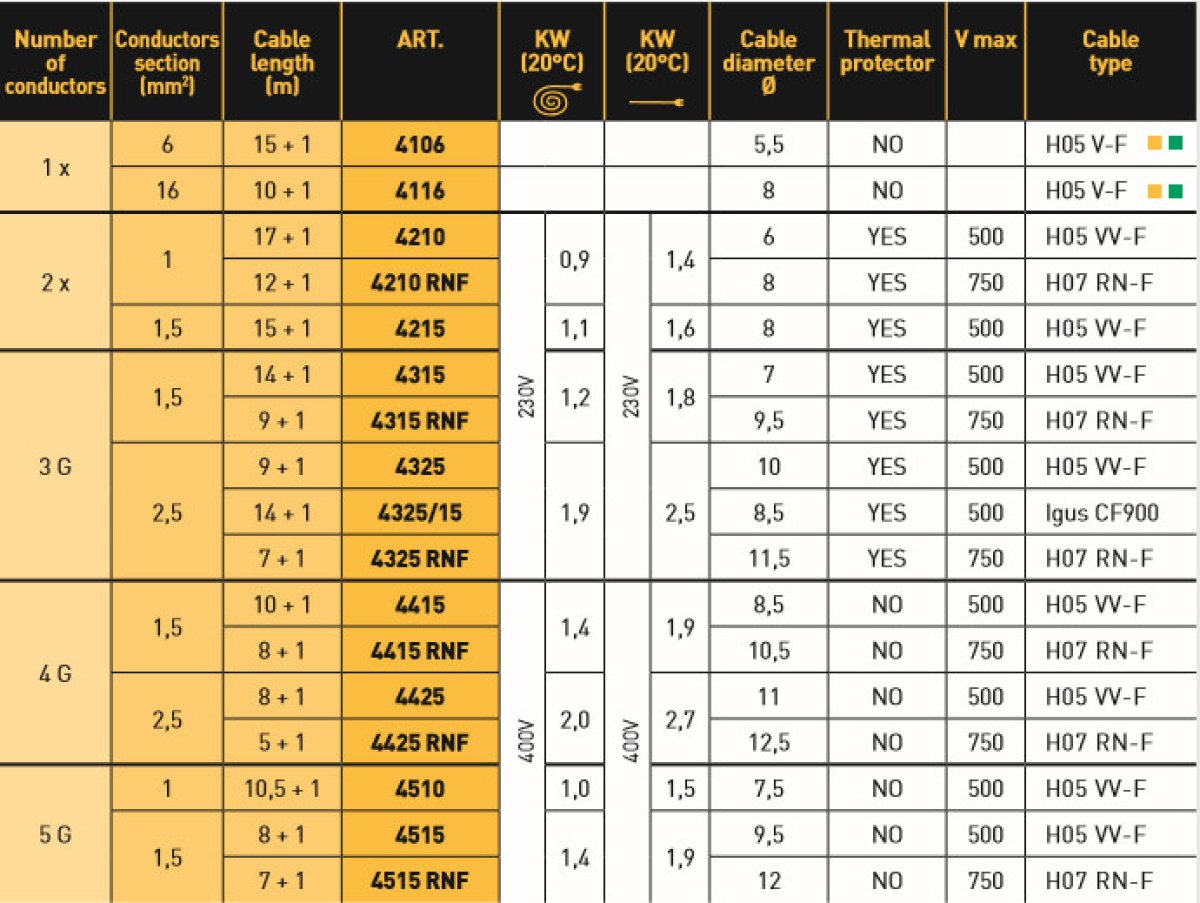

Technical specifications

• Cable length: 9+1 meters
• Cable type: H05VV-F 3G2.5 mm²
• Nominal voltage: 230V
• Maximum power (unwound): 2500W
• Maximum power (wound): 1900W
• Protection class: IP42
• Operating temperature: -5°C to 50°C

Applications

This cable reel is ideal for both professional and private use, especially in garages, workshops, and industrial environments where reliable power supply and flexibility are required. The robust construction and user-friendly features make it a valuable addition to your tool kit.
