REQUAL REQ1002 | REQUAL TIRE MOUNTING MACHINE MONOPHASIC (230V) |INCLUDING ASSEMBLY

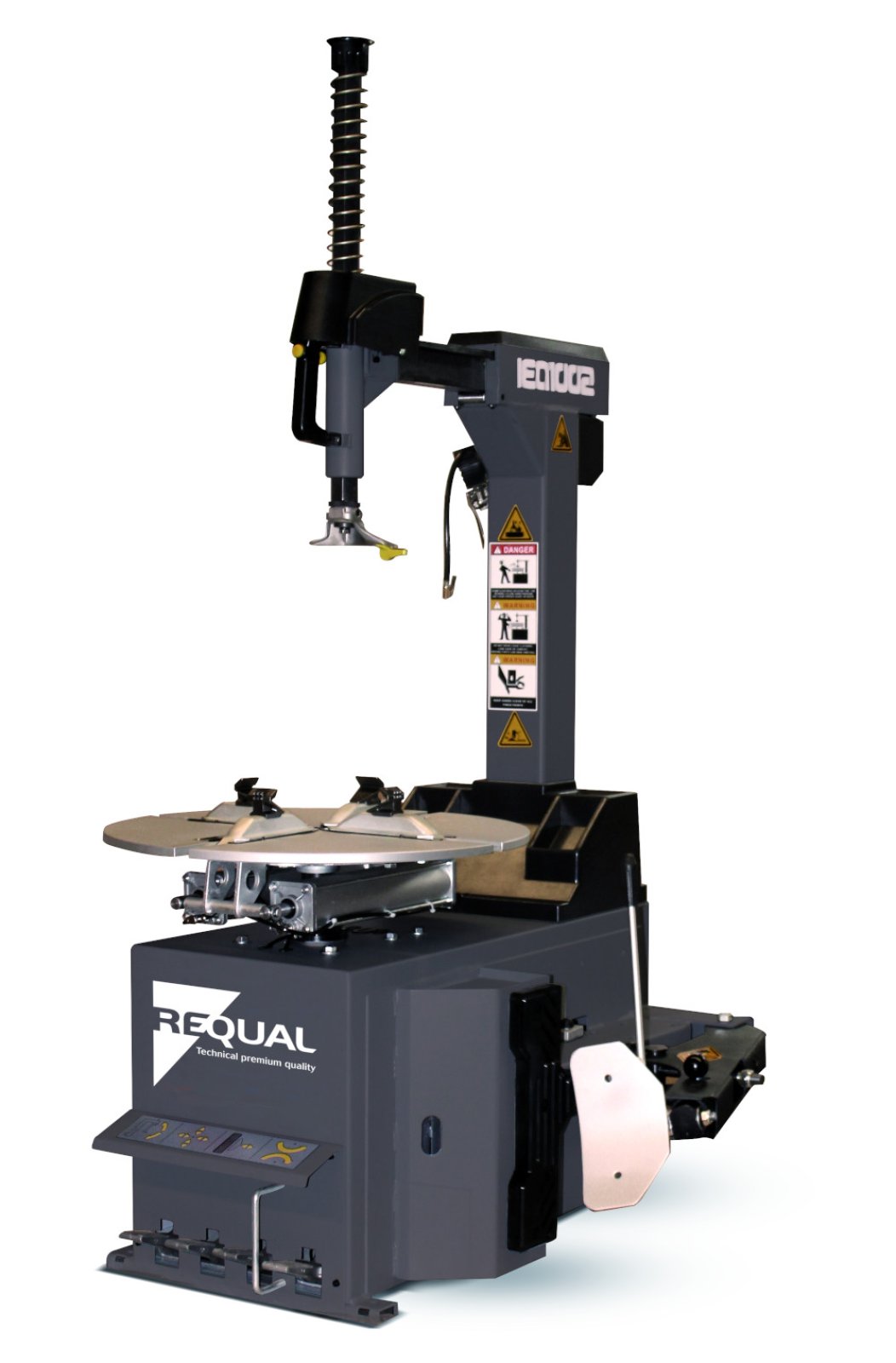

Requal REQ1002 Tire Mounting Machine: The Ultimate Choice for Professional Garages.



Are you looking for a reliable, efficient and fully automatic tire mounting machine on 230V? The Requal REQ1002 is specifically designed to meet the high demands of modern car and motorcycle tires. Whether low-profile tires or alloy rims, the REQ1002 allows you to effortlessly mount and dismount tires without any risk of damage.



Why the Requal REQ1002 Tire Mounting Machine?

- Versatility:This machine is not only suitable for dismounting tires but also for efficiently mounting them back on the rim.

- Precision and Versatility:With a maximum wheel width of 330 mm and a diameter of up to 1100 mm, this machine can handle a wide range of tires. Whether your customer has rims ranging from 3 to 12 inches wide, or has specific locking needs such as an outer lock for steel rims (10"-20") or a sliding inner jaw (8"-20") for the rim, the REQ1002 is ready for it. And for those alloy rims? The inner locking (12"-23") and outer sliding jaws (10"-22") ensure seamless mounting and dismounting.

- Fully automatic: With its automatic work parts, such as the tiltable foot pedal with vertical arm, the pedal to rotate the plate with 4 jaws and the foot pedal for tire breaking, operating the REQ1002 is a breeze.



Technical characteristics:

- Maximum width of the wheel: 330 mm

- Maximum diameter of the wheel: 1100 mm

- Rim width: 3 to 12 inches

- Outer lock (steel rim): (10"-20")

- Sliding inner jaw (rim): 8"-20"

- Inner locking jaw (alloy rim): (12"-23")

- Exterior sliding jaw (rim): 10"-22"

- Weight: 246 kg

- Compressed air: 8-10 bar

- Power supply: 230V

- Electricity: 1.1kw

- CE approved/included certificate



Your investment in the Requal REQ1002 includes delivery, unloading and assembly. This is your chance to take the efficiency and quality of your garage to the next level. Choose quality, choose the Requal REQ1002 Tire Mounting Machine.
