Powerful lifting performance for heavy-duty tasks

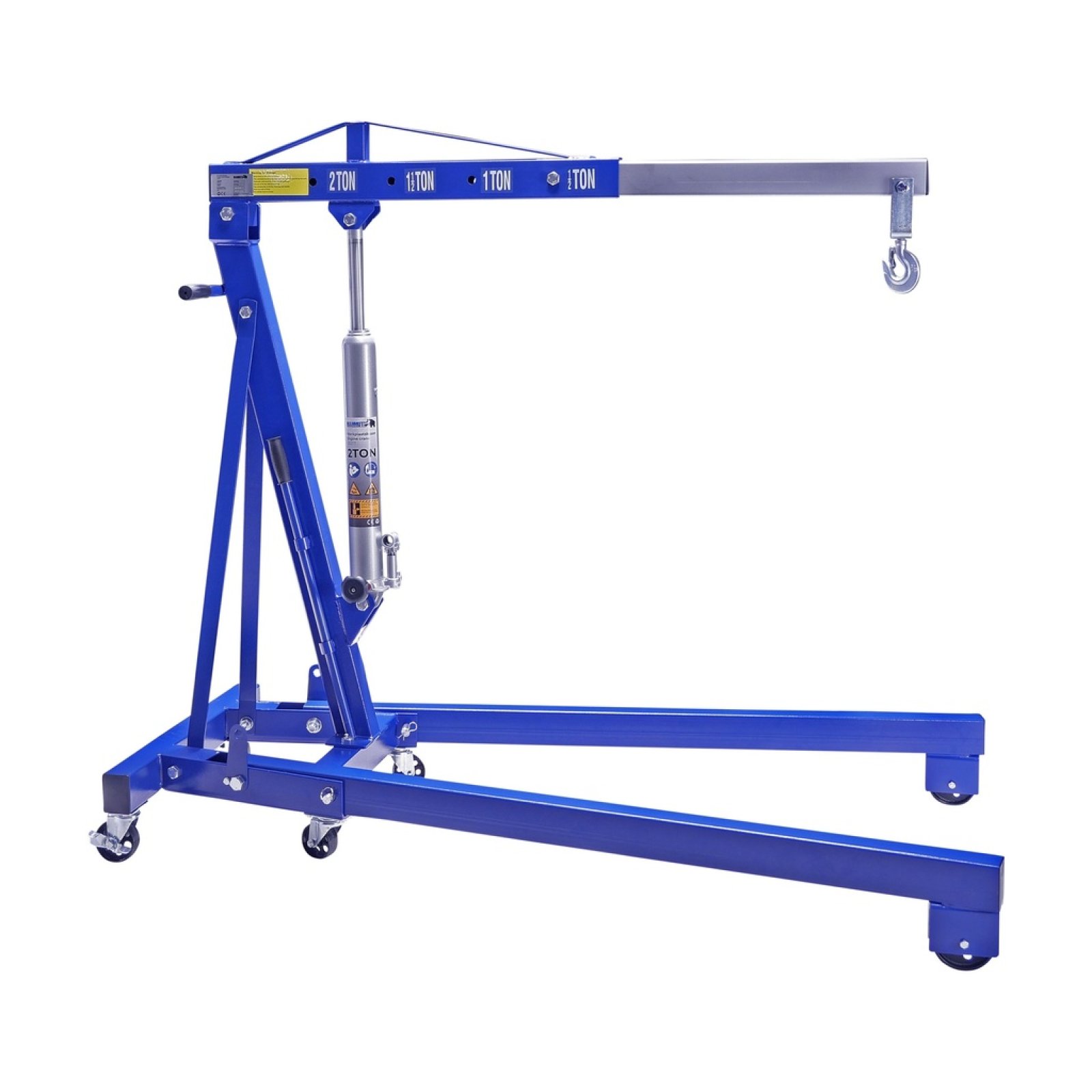

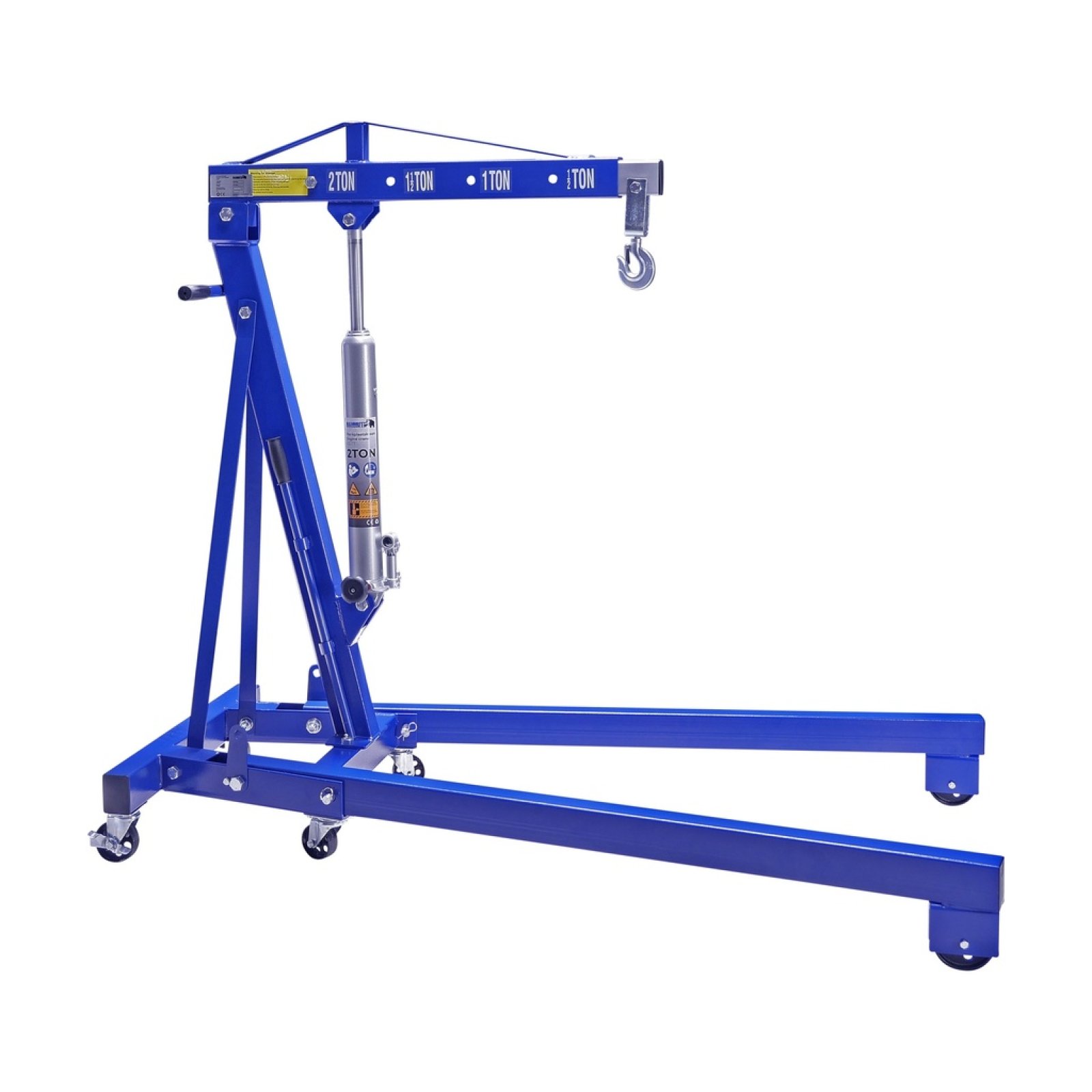

The MAMMUTH workshop crane is designed to effortlessly lift loads up to 2000 kg. Thanks to its robust construction and high-quality materials, this crane is ideal for lifting heavy engines, transmissions, and other components in your workshop.

With a maximum lifting height of 2515 mm, you can reach even the tallest vehicles and components. The crane arm is adjustable in four positions, allowing you to adapt the lifting capacity to the specific requirements of your project.

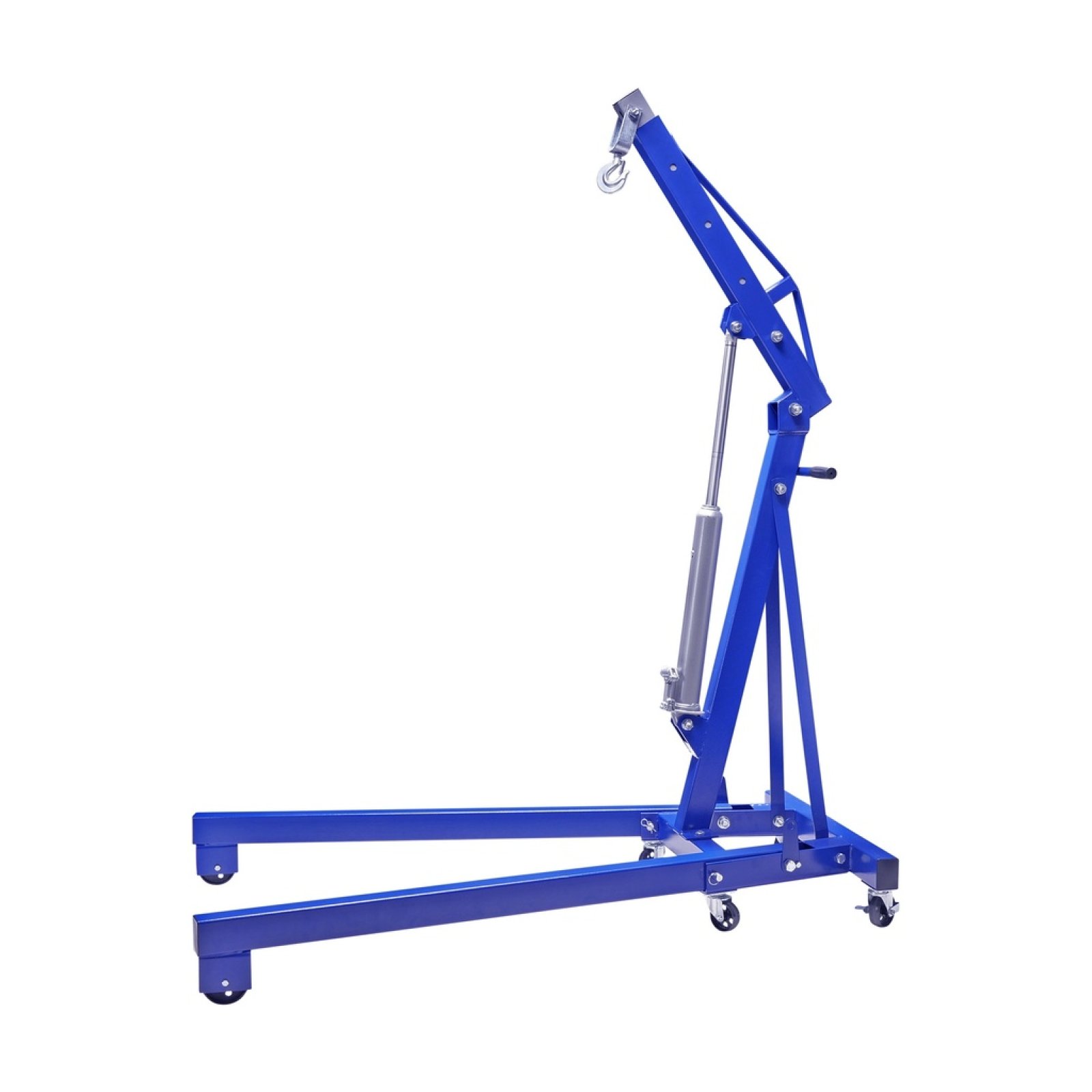

Adjustable lifting arm for versatile use

The lifting arm of the MAMMUTH workshop crane can easily be set to four different positions:

• 500 kg : lifting height up to 2515 mm
• 1000 kg : lifting height up to 2375 mm
• 1500 kg : lifting height up to 2240 mm
• 2000 kg : lifting height up to 2080 mm

This flexibility enables you to adjust the crane to various lifting needs, from light to heavy loads.

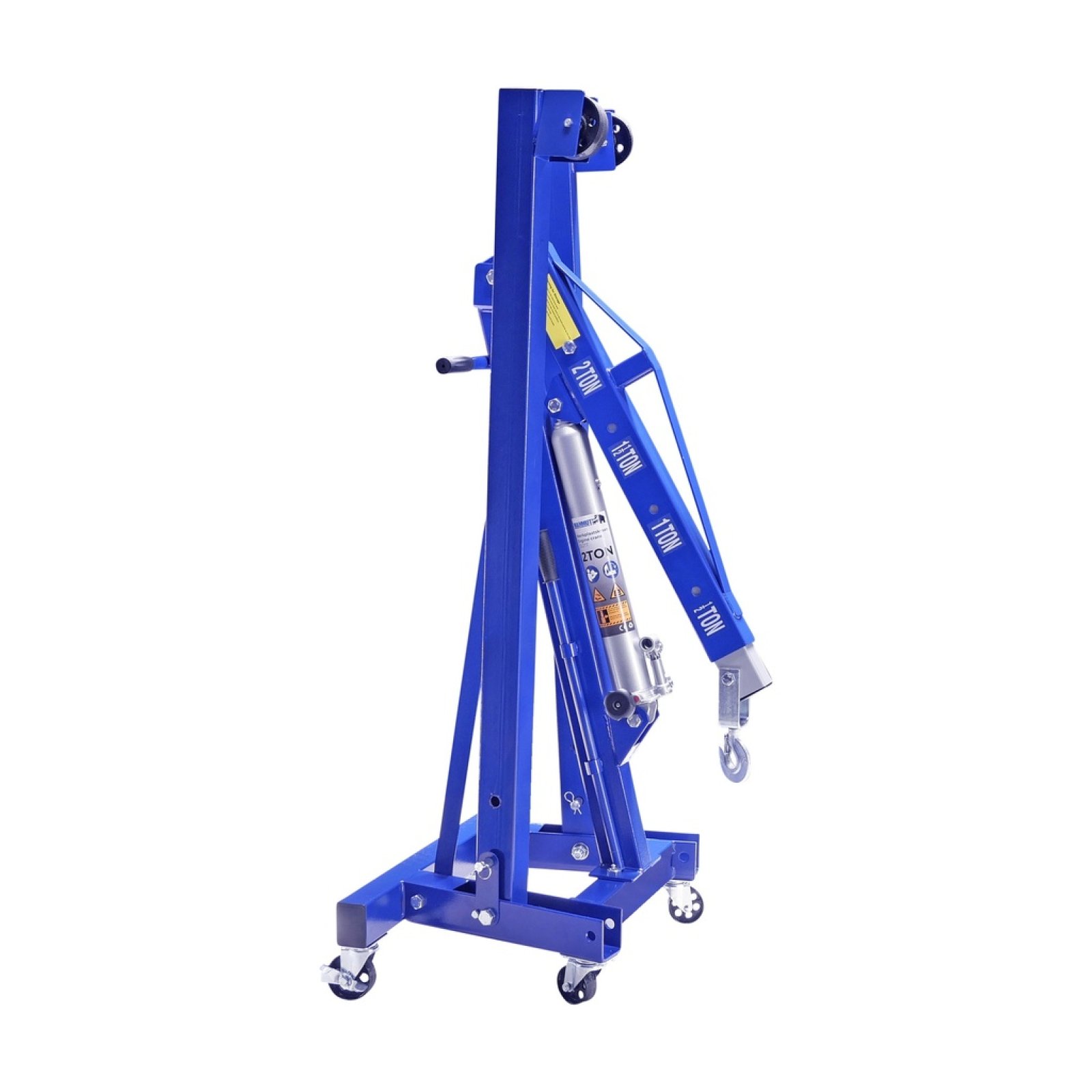

Foldable design for space saving

The foldable design of the MAMMUTH workshop crane ensures that you can easily store the crane when not in use. This is especially convenient in workshops where space is limited. Despite its compact design, the crane remains sturdy and reliable during use.

Safety and ease of use

Safety comes first with the MAMMUTH workshop crane. The quick release lowering valve ensures a controlled and safe lowering of the load, reducing the risk of accidents. The hydraulic lifting cylinder is fully welded, providing extra strength and durability.

The crane is equipped with six wheels: two fixed bearing front wheels and four swivel casters, two of which have an operable brake. This provides optimal maneuverability and stability during use.

Technical specifications

• Height range per position :
• 2000 kg: 2080 mm
• 1500 kg: 2240 mm
• 1000 kg: 2375 mm

• 500 kg: 2515 mm

• Total length of crane arm per position :

• 2000 kg: 1070 mm

• 1500 kg: 1245 mm
• 1000 kg: 1425 mm

• 500 kg: 1650 mm

• Dimensions and weight :

• Weight: 91 kg

• Height of the legs: 185 mm
• Distance between legs at widest point: 960 mm

Durable and reliable

The MAMMUTH workshop crane is made from high-quality materials and features an extremely strong design. The fully welded lifting cylinder reduces wear and extends the crane's lifespan. This makes it a reliable choice for both professionals and DIYers looking for a durable and efficient lifting solution.

Easy assembly and transport

The crane is delivered in two boxes for easy assembly:

• Box 1: 780 x 540 x 100 mm, 26 kg
• Box 2: 1585 x 320 x 190 mm, 70 kg

This ensures you can quickly and easily assemble and start using the crane.

With the MAMMUTH workshop crane, you get a powerful, versatile, and reliable lifting solution that meets the highest standards of modern workshops.
