Powerful lifting capacity and adjustable arm

The MAMMUTH workshop crane is designed to effortlessly lift loads up to 1000 kg. The extendable arm can be easily locked into five different positions, allowing you to adapt the crane to various lifting needs:

• Position 1: 1000 kg
• Position 2: 900 kg
• Position 3: 800 kg
• Position 4: 700 kg
• Position 5: 600 kg

Efficient and safe operation

Thanks to the dual action pump, this crane offers fast lifting speed without load and a controlled, slower speed under load. The automatic safety drain valve ensures a controlled lowering speed, contributing to a safe working environment.

Durable and user-friendly design

The robust welded frame is equipped with wear-resistant nylon and fiberglass wheels, which prevent damage to garage floors and ensure optimal mobility. The crane has a low base height thanks to the integrated wheels in the welded frame, making maneuvering and storage easier.

Flexibility and precision

The swiveling lifting hook and the 200° rotatable cylinder assembly provide optimal control during lifting. The parallel chassis allows for quick maneuvers around Euro pallets, resulting in faster handling and increased efficiency in the workshop.

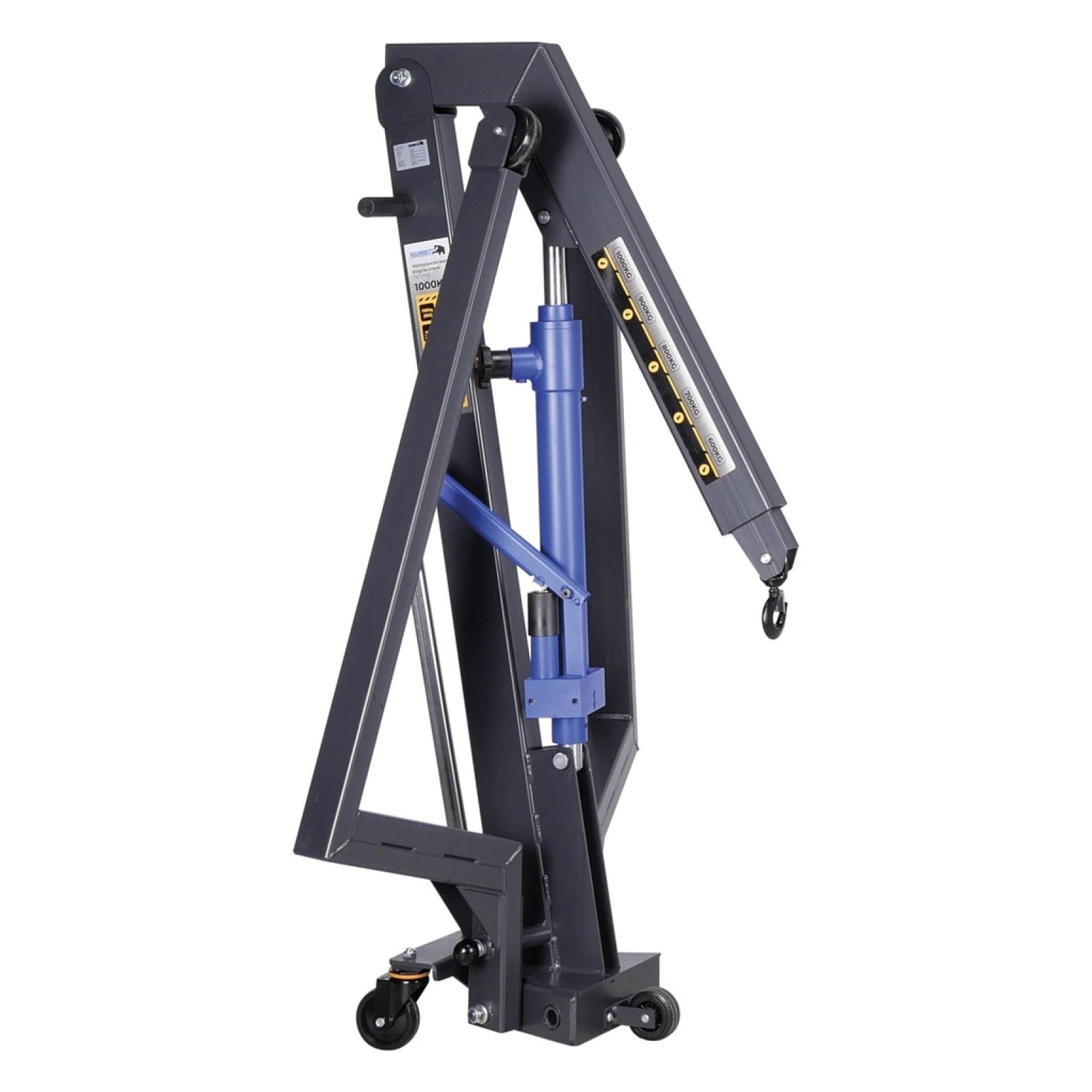

Compact and easy to store

The foldable design ensures that the crane can be easily stored, saving space in your workshop. Thanks to the extra wheelbase, the crane is easy to move, even when folded.

Technical specifications

• Leg length: 1450 mm
• Distance between legs at the widest point: 1025 mm
• Max. hook height (position 1): 2090 mm
• Hook height (position 2): 2140 mm
• Hook height (position 3): 2190 mm
• Hook height (position 4): 2250 mm
• Min. hook height (position 5): 2300 mm
• Product weight: 102.0 kg

Extra features

• Auto-release button with built-in two-speed action
• Hard-chromed cylinder and piston rod for long service life
• Pump handle including locking pin
• Handle holder

With this workshop crane, you get a reliable and versatile lifting solution, perfectly suited for professional use in various workshops and garages.
