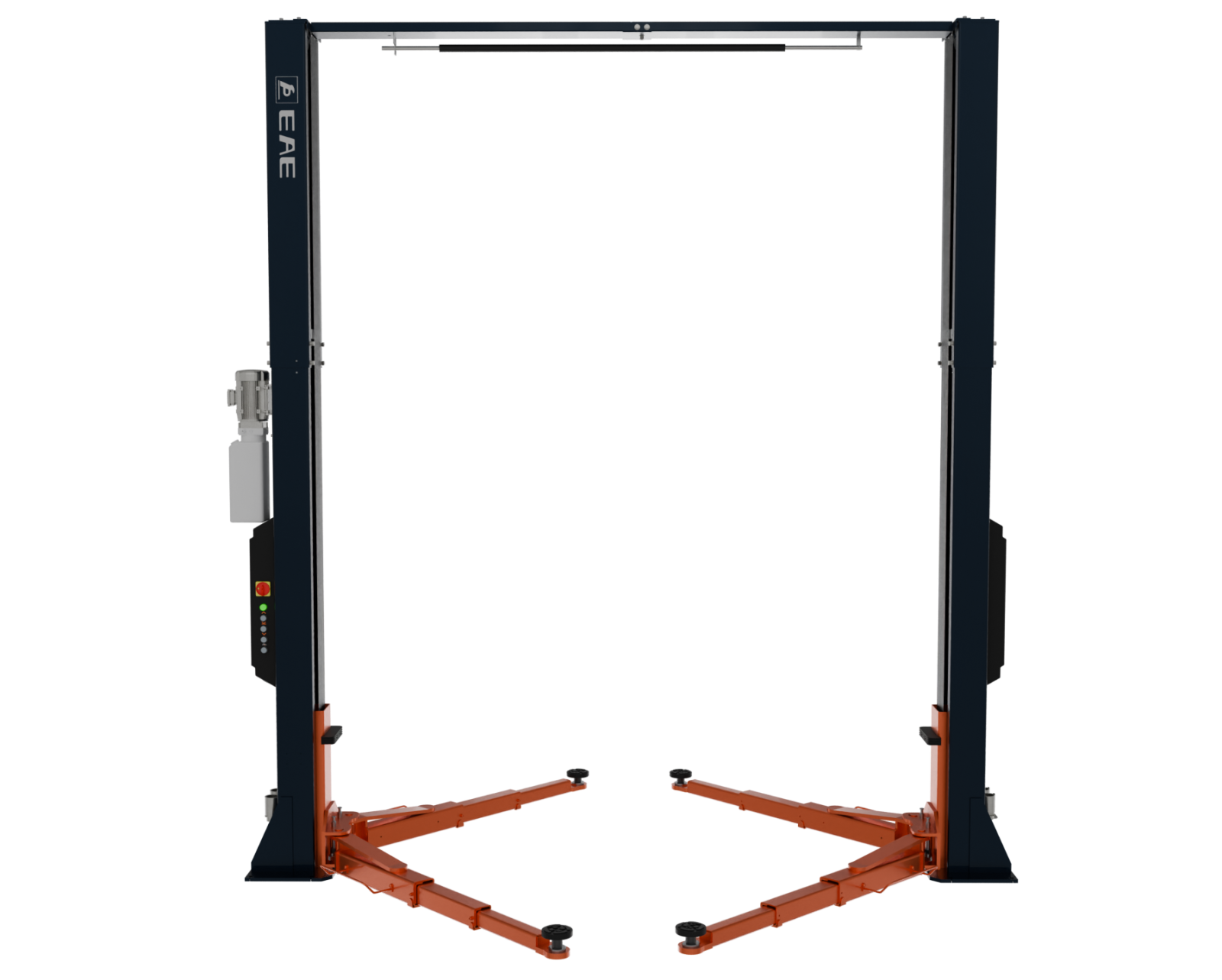

The EAE EE-62C.50T.E5051 is a powerful 2-post lift with a lifting capacity of 5 tons and an impressive height of 5051 mm, specially designed for workshops where maximum drive-through height and a clear floor are desired. Thanks to the clear floor design, the floor is free of cross connections, allowing maintenance equipment, tool trolleys, and transmission jacks to be effortlessly moved under the vehicle.
The lift is equipped with APS technology for optimal performance, durable cylinders with anti-surge valves, and automatically locking arm locks. The three-part arms offer flexibility for vehicles of various sizes.
With screwable pickup pads and a minimum free height of less than 100 mm, the lift is also suitable for vehicles with low ground clearance. Safety features such as a vehicle roof protection system, door protection pads, and column curtains are standard. The durable powder coating and aluminum motor with CE certification ensure a long, reliable service life.
Delivery, installation, and initial inspection in Belgium are included.
Features:
Lifting capacity: 5.0 tons
Max. lifting height: 1900 mm
Min. height: 110 mm
Total height: 5051 mm
Drive-through width: 3025 mm
Lifting speed: approx. 55 sec
Motor power: 3.5 kW / 3-phase
Power supply: As desired by customer (customization possible)
Design: Clear floor – free floor without cross connections
Technology: APS system for better performance

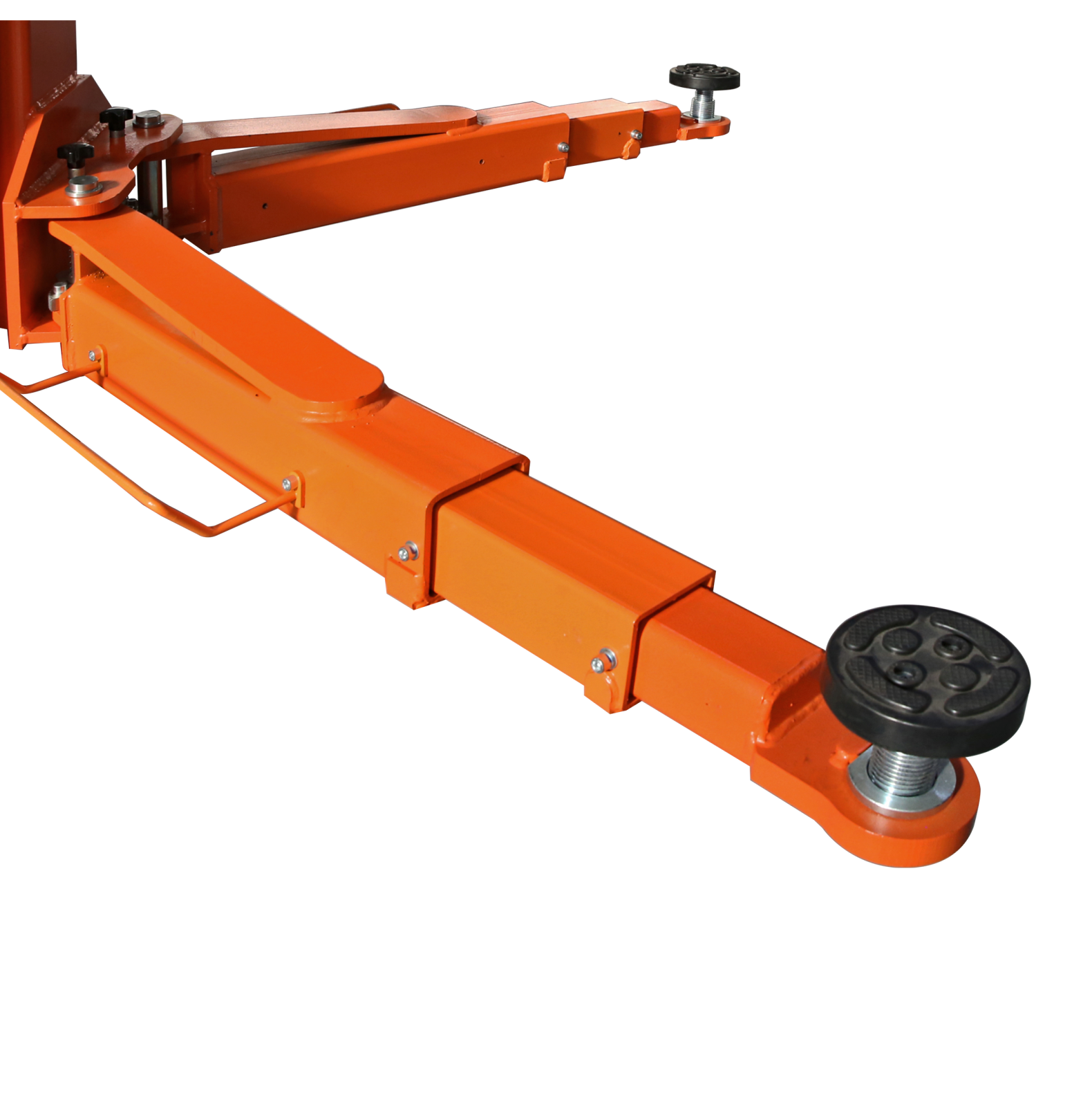

Arms: Flexible three-part arms

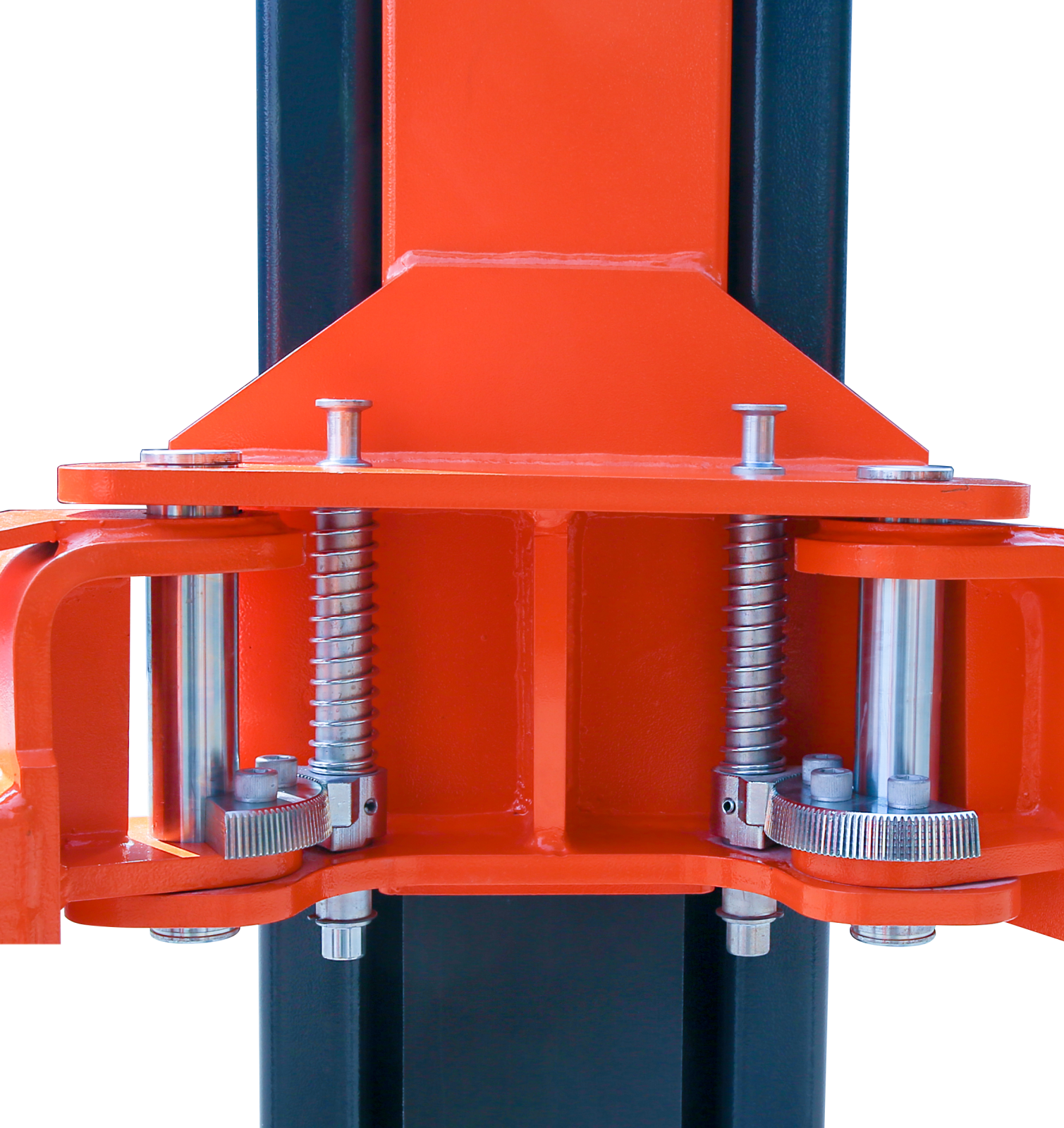

Safety: Automatic arm locking, anti-surge valves, overload protection
Extras:
Vehicle roof protection system
Door protection pads
Column curtains
Build quality: Durable powder coating, aluminum motor against overheating
Certification: CE certified
