Flexible height adjustment for various workshops

The EAE EE-62C.V3.42T.E offers the ability to adjust the total height between 3867 mm and 4300 mm. This makes the lift suitable for workshops with different ceiling heights and allows for easy integration into various environments.

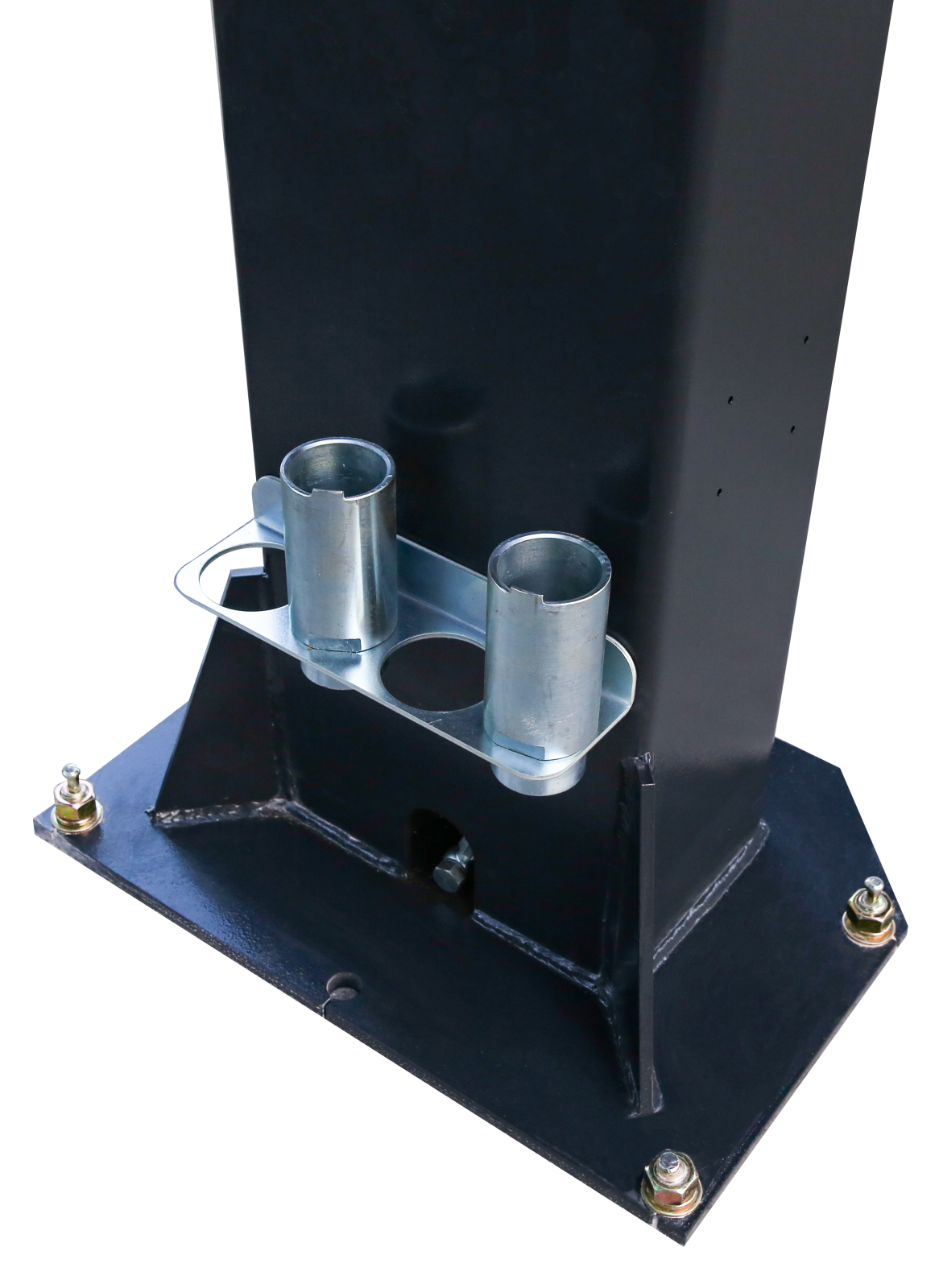

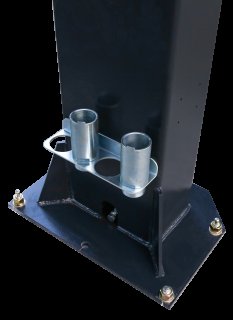

Baseless design for optimal workspace

Thanks to the design without a base plate, you benefit from a clear workshop floor. This makes it easier to position vehicles and use other equipment in the workshop, increasing efficiency.

Versatile arm configuration

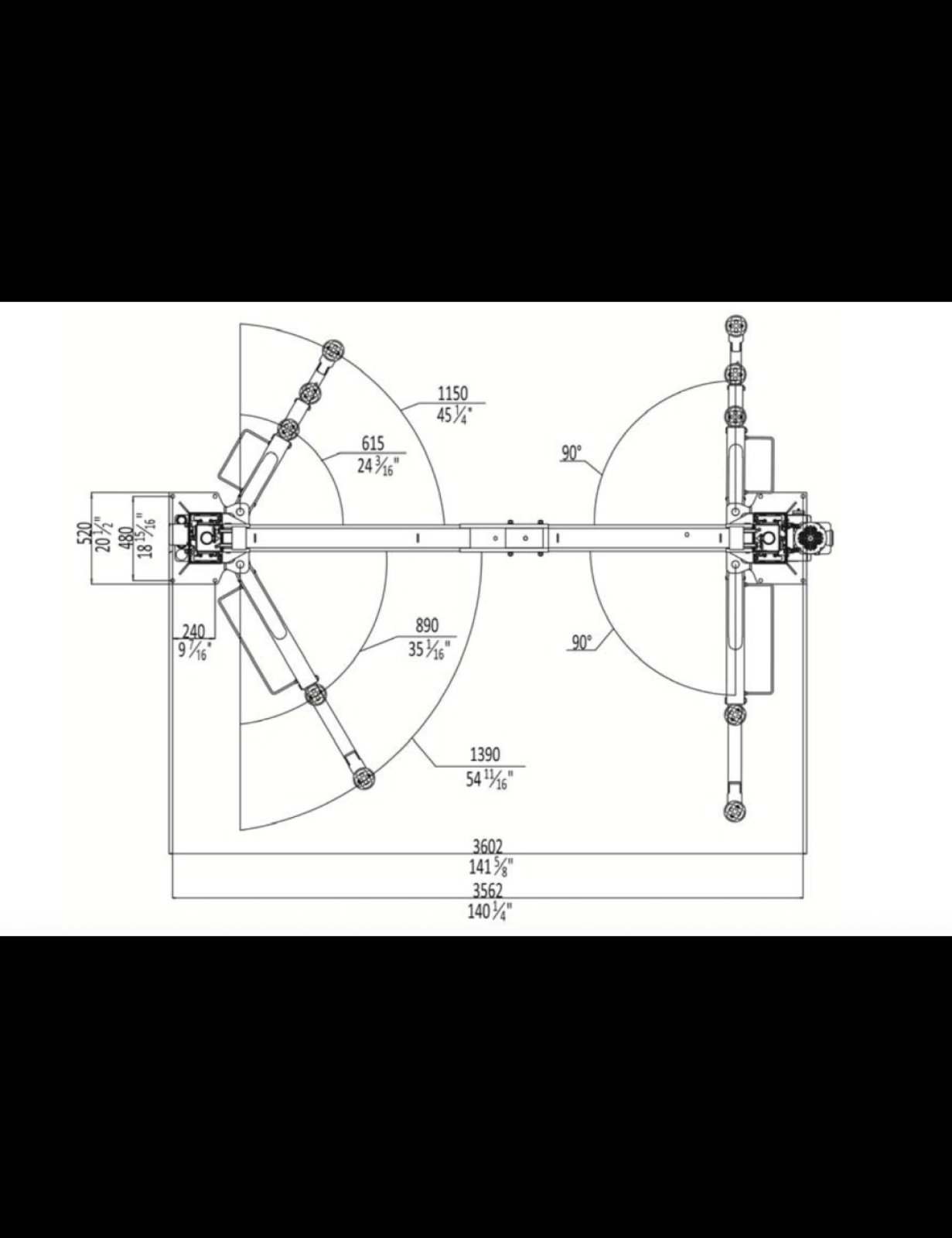

The lift is equipped with arms that can be positioned both symmetrically and asymmetrically. This offers flexibility when lifting different vehicles without the need for additional parts.

Advanced safety features

Equipped with automatic arm locking and double security through mechanical locks and restriction valves, this lift guarantees a safe working environment. The pre-set hydraulic pressure prevents overloading, which benefits the equipment's lifespan.

Efficient and durable performance

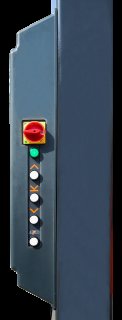

The aluminum motor reduces the risk of overheating and contributes to a longer lifespan. The 24V control system ensures safe and user-friendly operation.

Vehicle protection

Standard equipped with door protection pads and a roof stop, the lift offers extra protection for vehicles during lifting and lowering.

Technical specifications

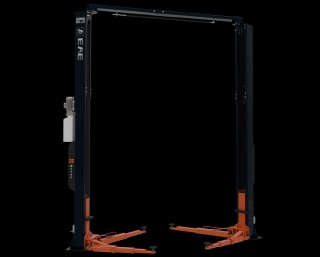

• Type: 2-post lift without base
• Lifting capacity: 4,200 kg
• Maximum lifting height: 1,900 mm
• Minimum height: 95 mm

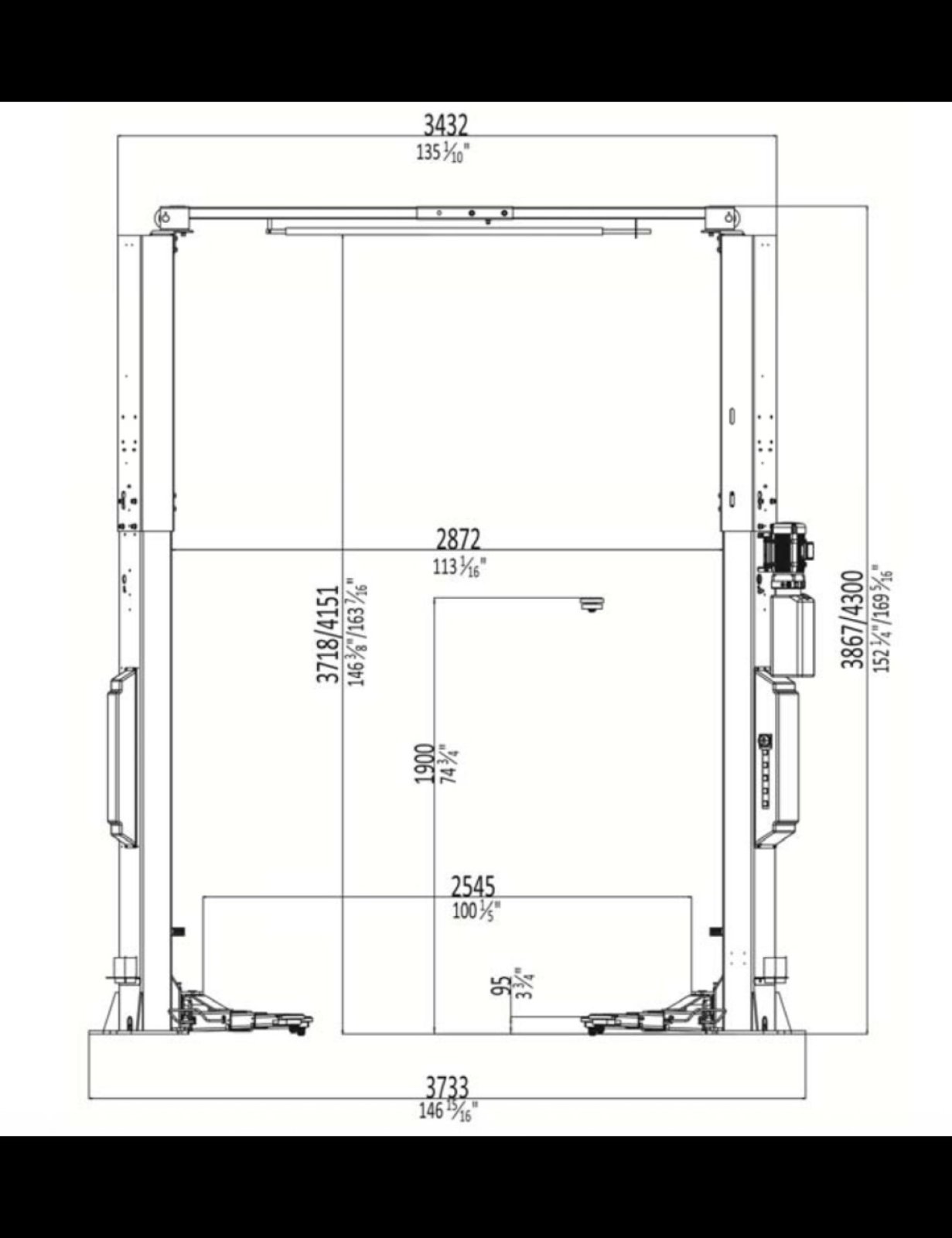

• Total height: 3,867 mm / 4,300 mm (adjustable)
• Drive-through width: 2,545 mm / 2,698 mm
• Lifting time: approximately 35 seconds
• Motor power: 3.5 kW – 3-phase
• Power supply: according to customer requirements
