Robust electro-hydraulic construction

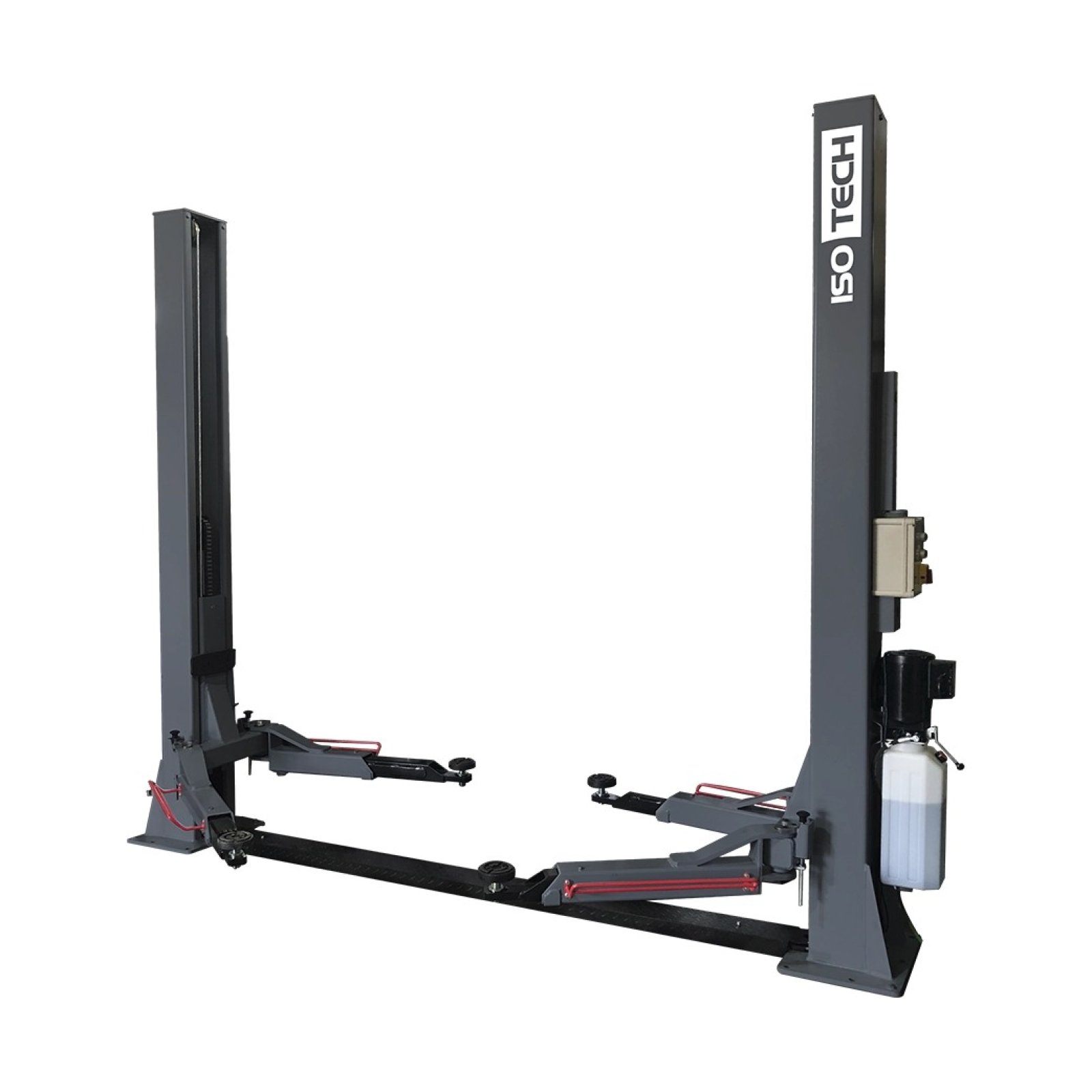

The Isotech IEQ1015 2-post lift is designed for garages that value reliability and efficiency. Thanks to its sturdy electro-hydraulic construction, this lift is securely anchored to the ground, ensuring a safe and stable lifting experience.

Fast and smooth lifting movement

With a maximum lifting height of 1780 mm reached in just 75 seconds, the IEQ1015 is among the fastest in its class. Synchronized steel cables and cylinders guarantee an even and smooth lifting motion, making working on cars more efficient.

Safety features

Safety comes first with the IEQ1015. The lift is equipped with a manual lowering valve and electronic locking, allowing you to work on cars with peace of mind. These features provide extra protection during lifting and lowering.

Versatility and adaptability

The included 80 mm extensions and lifting pads with a diameter of 135 mm offer versatility for different cars. This allows you to safely and efficiently lift various vehicles, regardless of their specific characteristics.

Technical specifications

• Capacity: 3200 kg
• Maximum lifting height: 1780 mm
• Minimum lifting height stand: 100 mm
• Total width: 3200 mm
• Maximum length long arm: 1100 mm
• Minimum length long arm: 600 mm
• Maximum length short arm: 900 mm
• Minimum length short arm: 600 mm
• Rise time with single-phase motor: 75 seconds
• Lowering duration: 18 s ≤ t ≤ 40 s
• Total weight: approx. 700 kg
• Noise level: ≤ 70 dB at 1 m distance
• Operating temperature: 5°C to 40°C
• Relative humidity: 90%
• Maximum height: 3500 m

Compliance and certification

The IEQ1015 is manufactured according to the European Directive 2006/42/EC and complies with harmonized standards EN1493:2010 and EN60204-1:2018. This guarantees that the lift meets the highest safety and quality standards.

Scope of application

Note: this lift is specifically designed for sale and installation in Belgium. This ensures that the IEQ1015 perfectly matches local regulations and safety standards.
