Powerful lift for versatile use

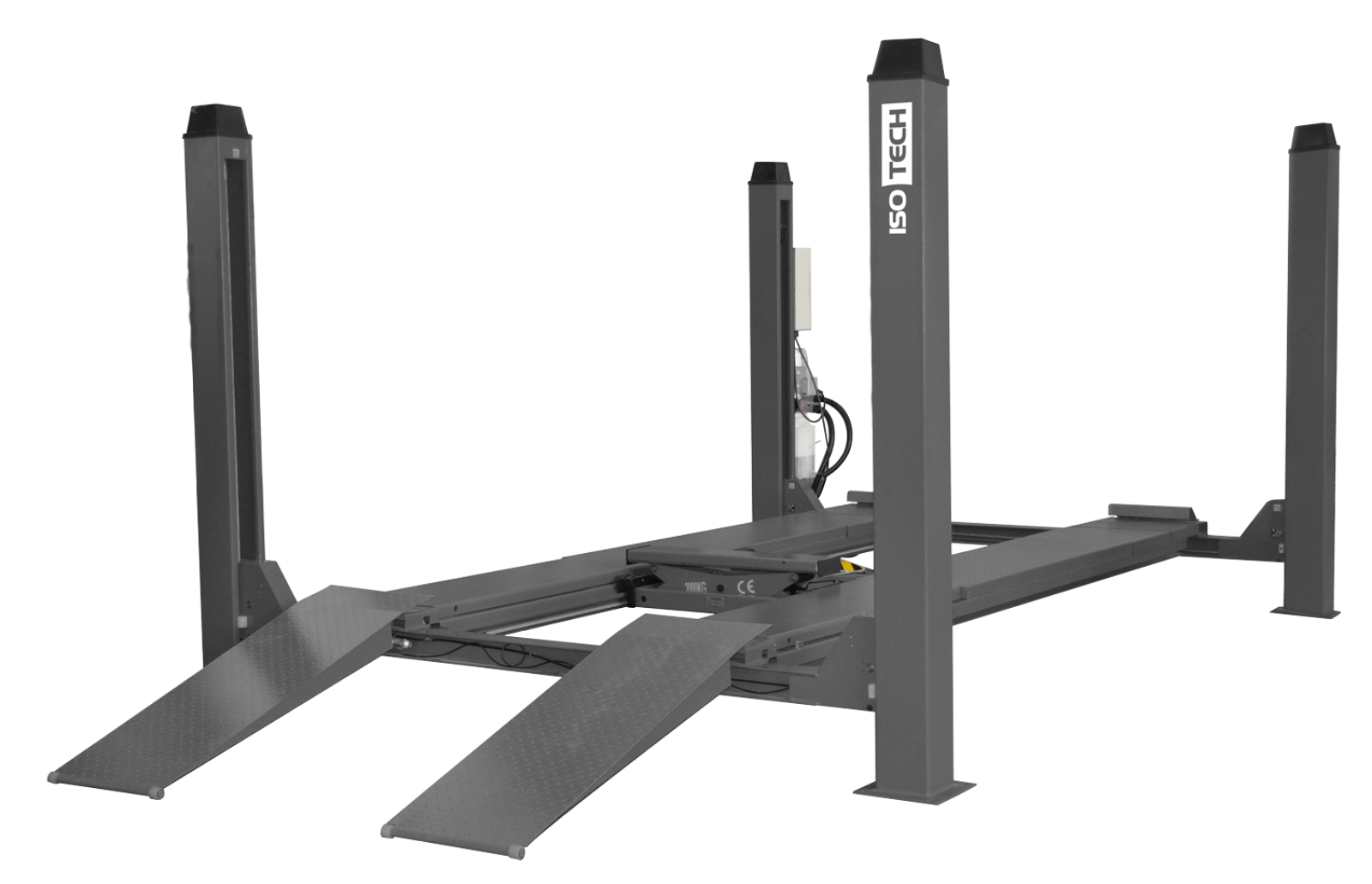

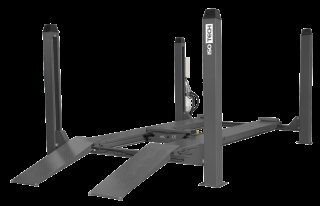

The Isotech IEQ1107 is a robust 4-post lift with an impressive lifting capacity of 4,500 kg. This lift is designed to support a wide range of vehicles, from compact cars to larger vans. Thanks to the generous platform length of 5,190 mm and a width between columns of 3,478 mm, this lift provides ample space for various vehicle sizes.

Optimized for wheel alignment

Specifically designed with wheel alignment in mind, the IEQ1107 features rear sliding plates and recesses for turntables at the front. Although the turntables are not included as standard, these features enable precise alignments, which are essential for improving driving performance and reducing tire wear.

Safety and reliability

Safety comes first with the IEQ1107. The lift is equipped with a 'dead man' safety system, an anti-sag plate, and hydraulic protections against overload and hose rupture. In addition, the pneumatic/manual system for unlocking the safety lock provides extra peace of mind during use.

Efficient performance

With a lifting time of up to 50 seconds and a lowering time of up to 60 seconds, the IEQ1107 offers fast and efficient performance. The 2.2 kW electric motor ensures smooth operation, while the low noise and energy consumption contribute to a pleasant working environment.

Technical specifications

• Lifting capacity: 4,500 kg
• Lifting time: ≤50 seconds
• Lowering time: ≤60 seconds
• Electric motor: 2.2 kW
• Lifting height: 1,896 mm
• Width between columns: 3,478 mm
• Platform length: 5,190 mm
• Platform width: 520 mm
• Minimum platform height: 246 mm
• Hydraulic oil: ISO 46

Compliance with European standards

The Isotech IEQ1107 complies with European Directive 2006/42/EC and is harmonized according to standards EN ISO 12100:2010, EN1493:2010, and EN60204-1:2006+A1:2009. This ensures that you are investing in a product that meets the highest safety and quality standards.

Ease of use and maintenance

This lift is designed for easy use and requires minimal maintenance. Synchronization by steel cables ensures smooth and even lifting movement, regardless of the vehicle's weight. Moreover, the low noise and energy consumption contribute to an efficient and comfortable working environment.
