Designed for electric vehicles

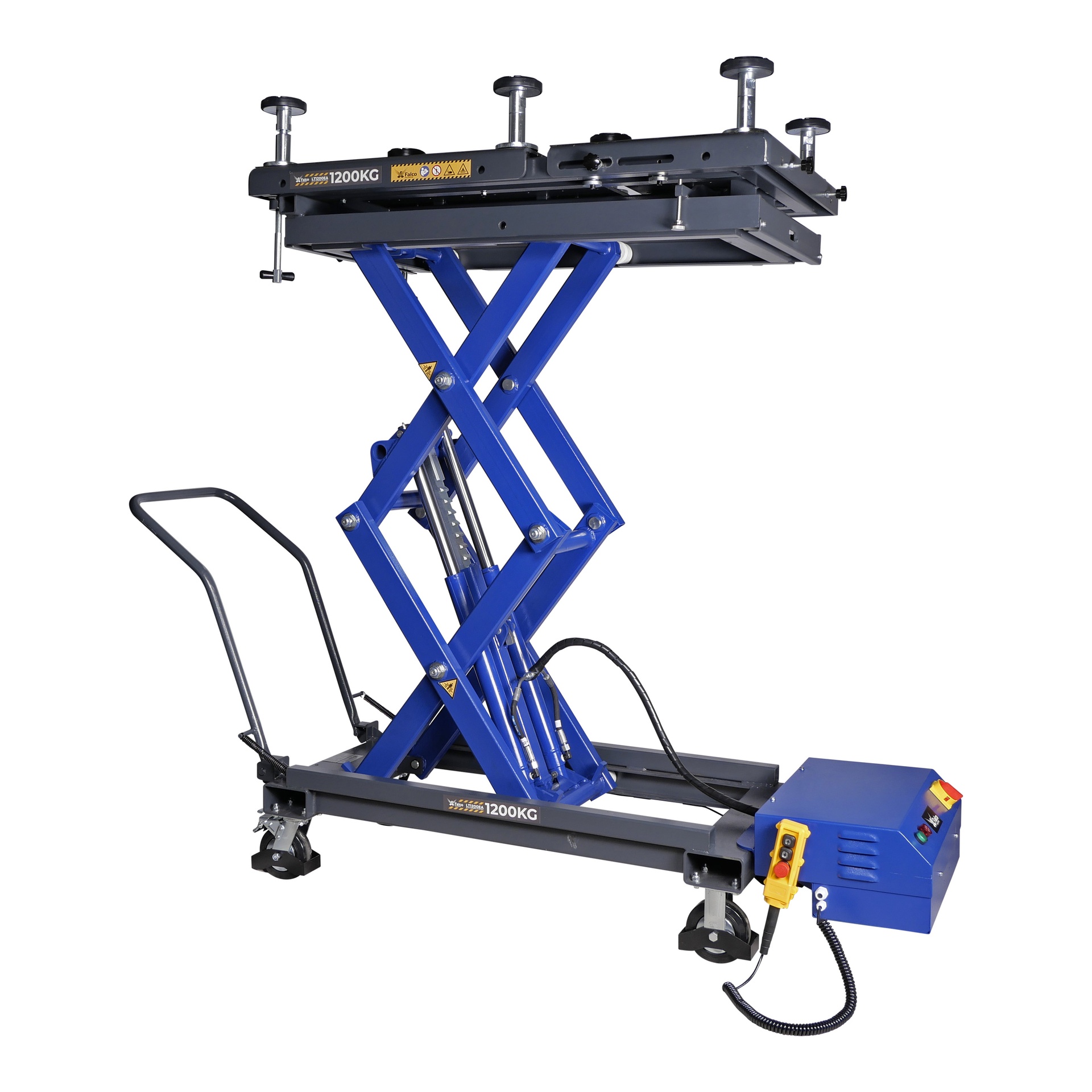

The Falco Sollevatori LT1200EA is specially developed for working on electric cars. This electro-hydraulic lift table is ideal for (dis)assembling engines, gearboxes, lithium-ion battery packs, and other chassis components. Thanks to the stepless adjustability in height and length, the LT1200EA offers a flexible range of applications, perfect for professional workshops.

Flexible and precise positioning

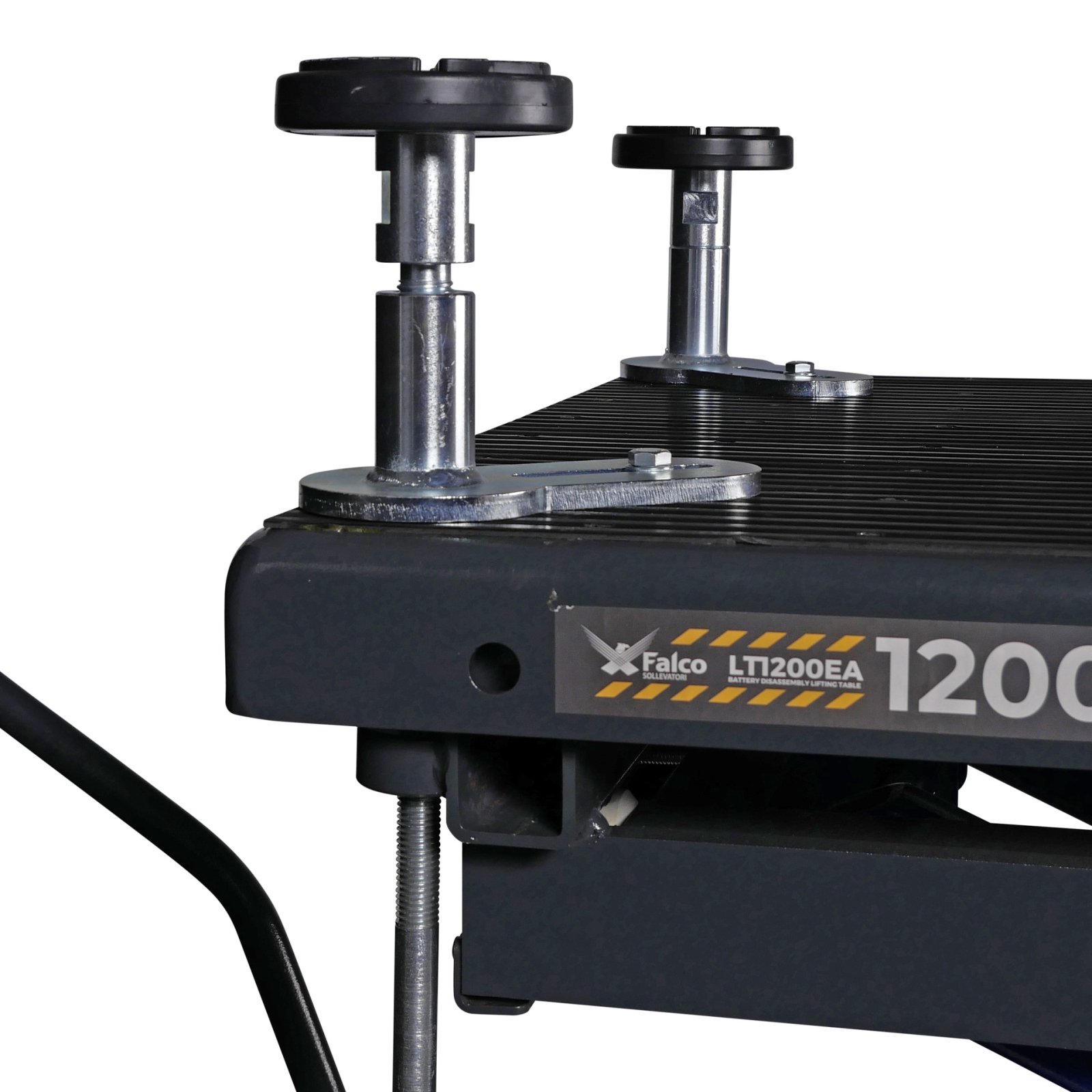

The tabletop features 104 M10 screw holes with a 100 x 100 mm hole pattern, allowing for easy attachment of tools and lift adapters. In addition, the lift table is easily adjustable in length and cross direction and can be tilted up to 5 degrees, ensuring maximum flexibility for various applications.

Mobility and ease of use

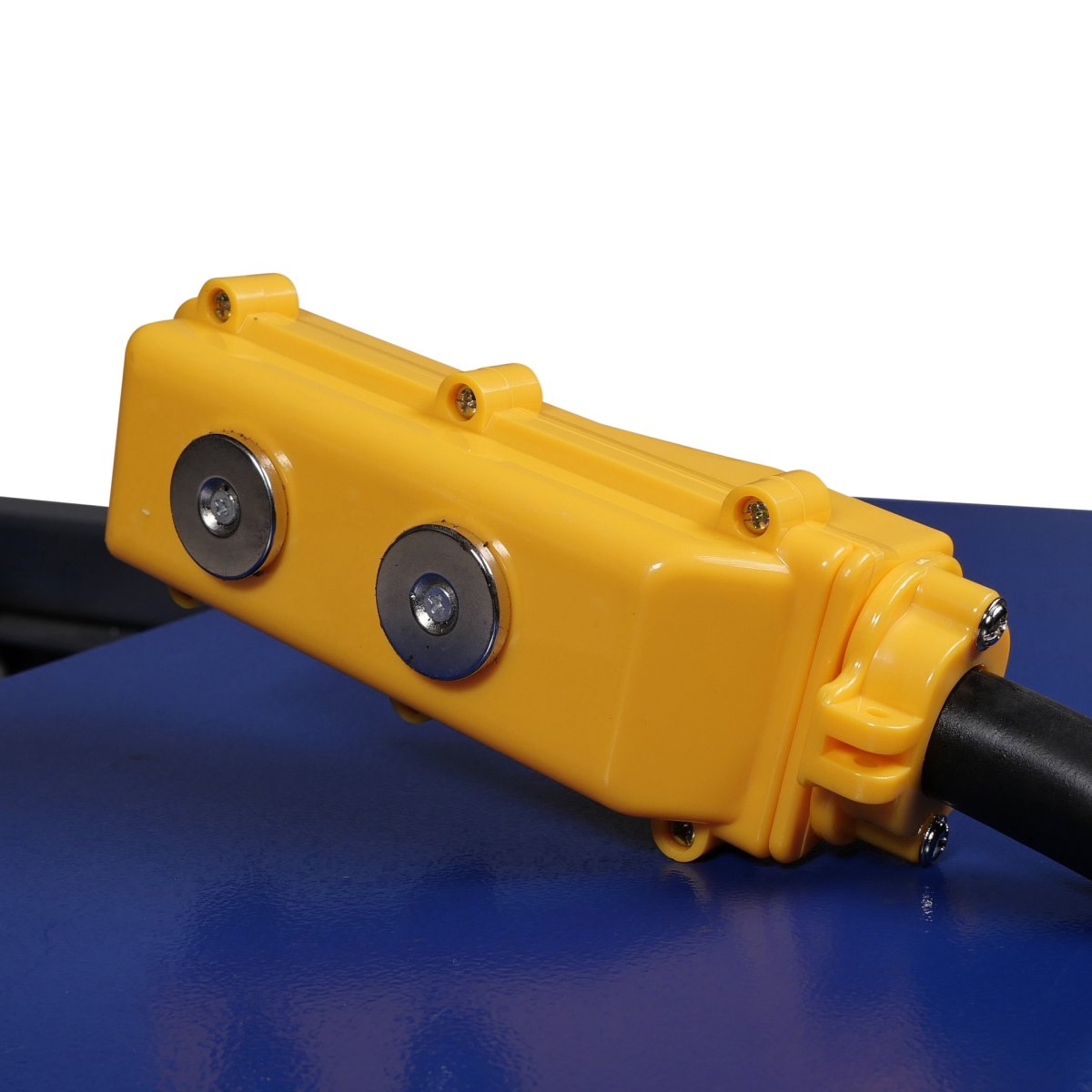

Equipped with swivel wheels including brakes, the LT1200EA offers free movement and safe operation. The foldable bar provides optimal workspace when not in use. The control unit is easy to operate and comes with a magnetic holder for optimal positioning during use.

Safety and reliability

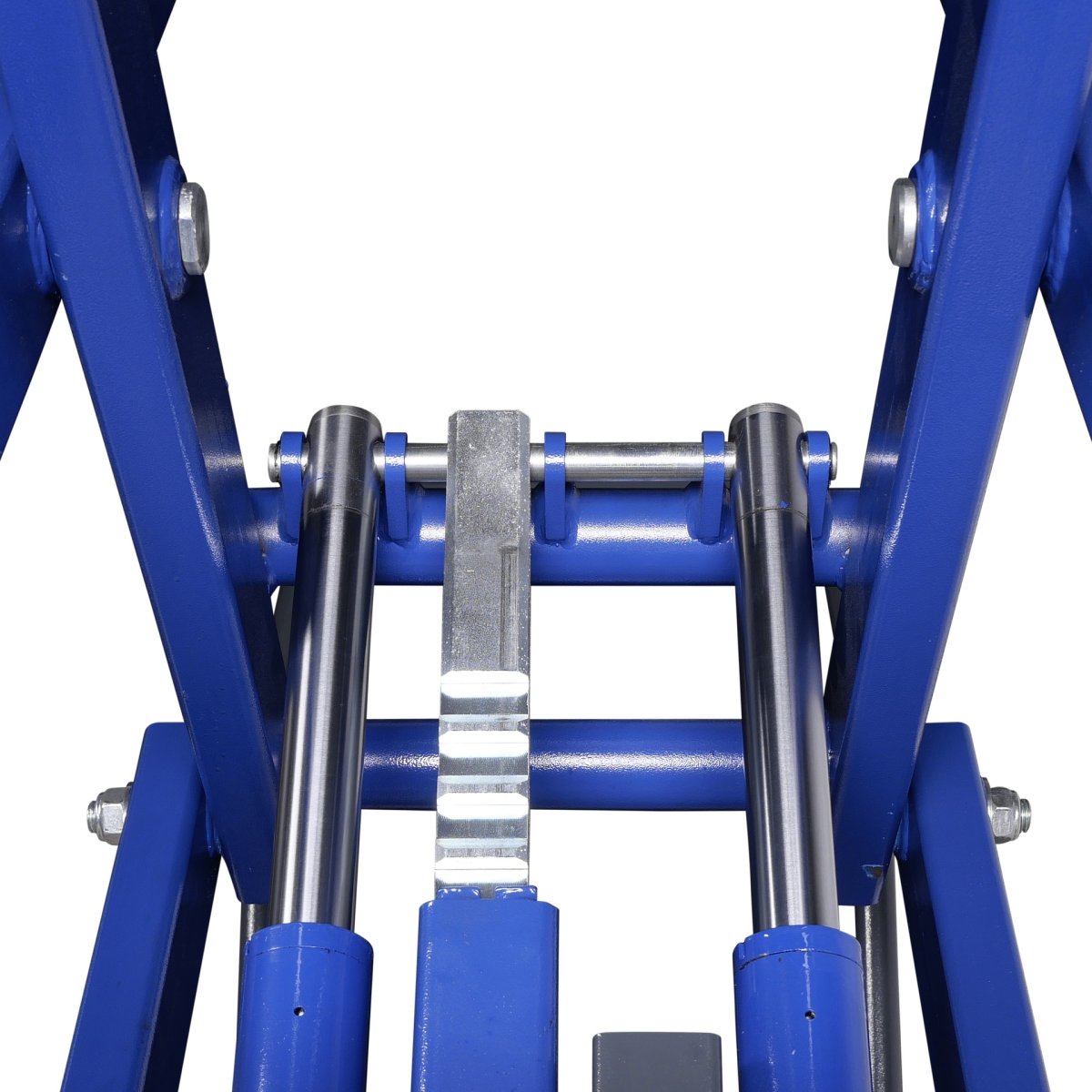

The lift table features an integrated 230V electro-hydraulic unit, ensuring powerful and reliable performance. With a double hydraulic cylinder and electromechanical locking, the lift table offers extra safety during lifting and lowering. The insulated tabletop and lift adapters ensure safe work on electric vehicles.

Technical specifications

• Lifting capacity: 1200 kg
• Voltage: 230V / 50 Hz
• Power: 0.75 kW
• Platform dimensions: 1300 x 760 mm
• Protection class: IP44
• Platform height min. (without pads / with pads): 640 / 800 mm
• Platform height max. (without pads / with pads mid position / with pads high position): 1855 / 2015 / 2065 mm
• Lifting pads (min / max): 160 / 210 mm
• Platform adjustable range: 1290 - 1400 mm

Dimensions and weight

• Product length: 770 mm
• Product width: 2,240 mm
• Product height: 1,010 mm
• Product weight: 440.0 kg

Advantages of the Falco Sollevatori LT1200EA

• Ease of use: Designed for easy operation, with height and length adjustability for versatile applications.
• Efficiency: The stepless adjustability and easy positioning significantly improve workflow in the workshop.
• Reliability: The robust construction and high-quality materials guarantee a long service life and reliable performance, even with intensive use.
• Safety: Thanks to the integrated safety features, users can work with confidence on heavy and electric vehicles.

All Falco lift tables meet the highest quality standards and come with a Dutch manual, including maintenance protocol and CE certificate. These standards guarantee safe and reliable operation of the lift table.
