Efficient Connection for Pneumatic Systems

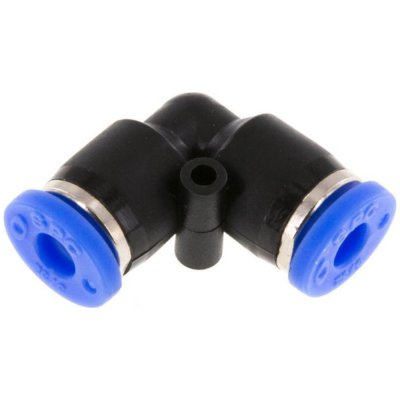

This plastic elbow push-in coupling is designed to securely and leak-free connect two pneumatic hoses with a diameter of 8 mm. Thanks to the angled design, it is possible to connect hoses at a 90-degree angle, promoting space saving and a neat installation.

High-Quality Materials for Durability

The coupling is made from high-quality materials:

• Body: Nickel-plated brass/PA 66
• Release ring: PA 66
• Toothed ring: Stainless steel (SS)
• Seal: Nitrile rubber (NBR)

This combination guarantees a long lifespan and reliable performance, even under tough conditions.

Easy Installation and Use

The push-in design allows for quick and easy installation without extra tools. The special O-ring ensures optimal sealing, while the toothed ring keeps the hose firmly in place. By pressing the release ring, the hose can be easily disconnected.

Technical Specifications

• Type: Elbow push-in coupling
• Connection diameter: 8 mm
• Maximum working pressure: -0.95 to +20 bar
• Temperature range: -10°C to +80°C

Application Possibilities

This coupling is ideal for various pneumatic applications, such as:

• Industrial automation
• Automotive sector
• Air tools
• Pneumatic transport systems

Advantages at a Glance

• Space-saving: Angled connection for compact installations
• Durable: High-quality materials for a long lifespan
• User-friendly: Easy installation and removal without tools
• Reliable: Secure and leak-free connections

With this plastic elbow push-in coupling, you ensure an efficient and reliable connection in your pneumatic systems.
