Robust and reliable air coupling for your pneumatic applications

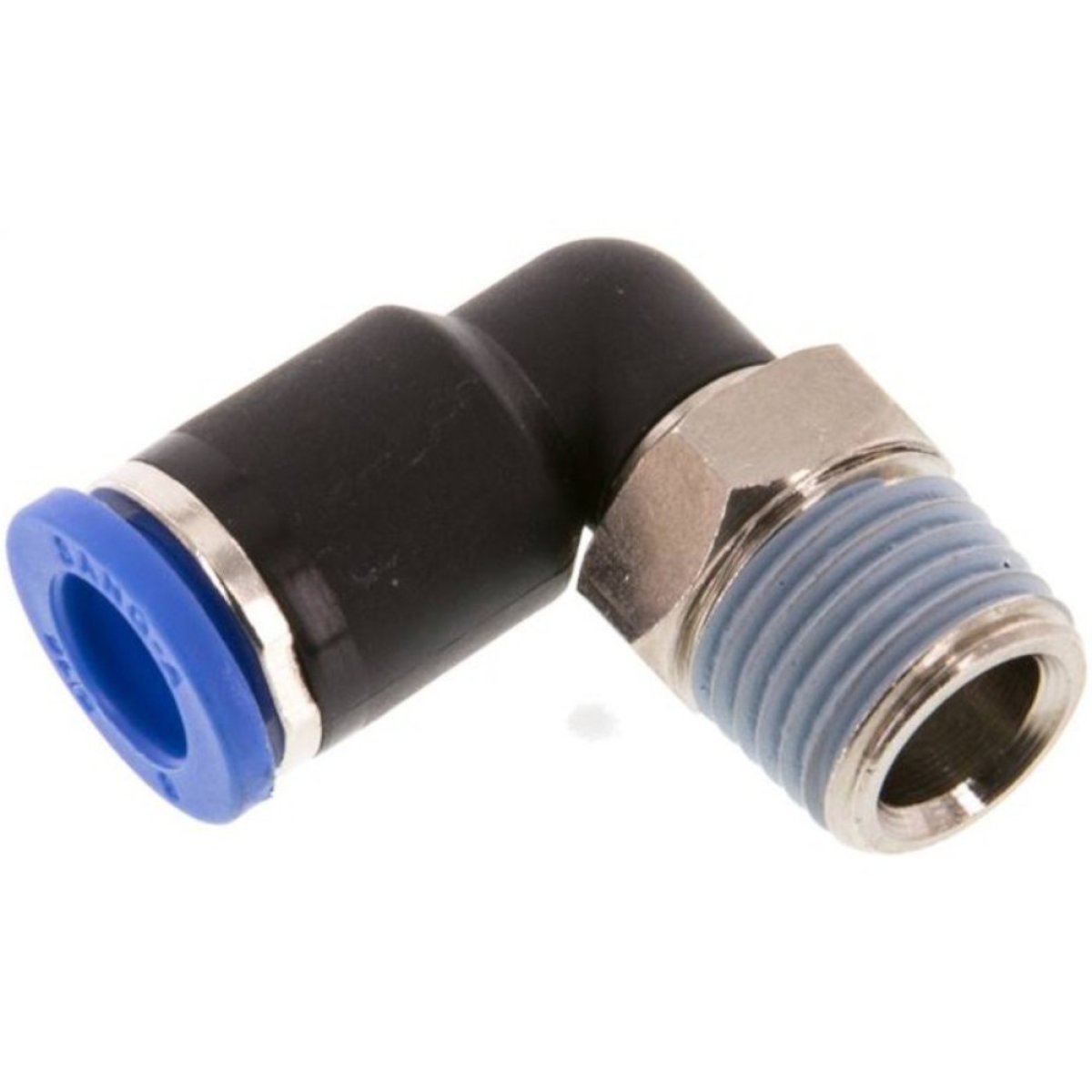

This plastic L-shaped air coupling is designed to securely and leak-free connect pneumatic hoses with a diameter of 12 mm. Thanks to the 3/8" external thread, this coupling is versatile for use in various pneumatic systems.

High-quality materials for optimal performance

The housing of the coupling is made from nickel-plated brass and PA 66, ensuring excellent durability and resistance to corrosion. The release ring is made of PA 66, while the toothed ring is made of stainless steel (SS). The seal is made from NBR material, contributing to reliable and long-lasting operation.

Easy installation and user-friendliness

• Push-in coupling: Allows quick and easy assembly without extra tools.
• Release ring: By pressing the release ring, the hose can be easily removed, facilitating maintenance and adjustments.

Suitable for a wide range of pressure and temperature conditions

This coupling is designed to operate within a pneumatic pressure range of -0.95 to +20 bar, making it suitable for both vacuum applications and high-pressure systems. The materials used guarantee reliable operation within this pressure range.

Applications in various sectors

This elbow air coupling is ideal for use in:

• Automotive industry: For connecting pneumatic tools and systems.
• Production environments: Where reliable air connections are essential for machine operation.
• Workshops: For efficiently connecting air hoses in various applications.

Specifications at a glance

• Type: Elbow push-in coupling
• Hose diameter: 12 mm
• External thread: 3/8"
• Maximum pneumatic pressure: -0.95 to +20 bar
• Housing material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Toothed ring material: SS
• Seal material: NBR
• Number of pieces: 1

With this plastic air coupling elbow piece Ø12mm 3/8, you are assured of a reliable and durable solution for your pneumatic connections.
