Reliable connection for pneumatic systems

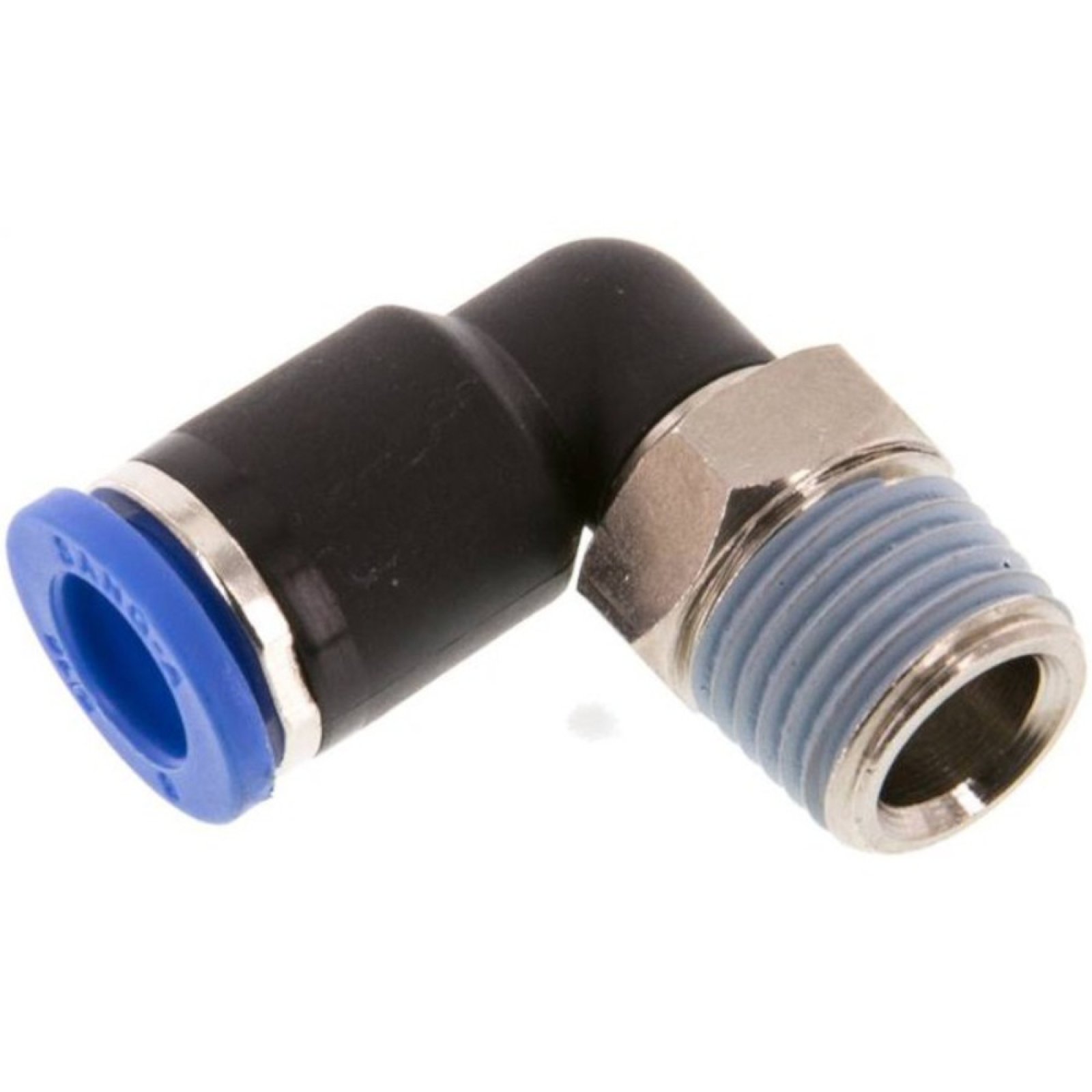

This plastic L-shaped air coupling is designed to securely and leak-free connect pneumatic hoses with a diameter of 6 mm. Thanks to the 1/8" external thread, this coupling is compatible with various pneumatic components.

High-quality materials for durability

The housing is made of nickel-plated brass and PA 66, ensuring a robust and corrosion-resistant construction. The release ring is made of PA 66, while the locking ring is made of stainless steel, contributing to the long lifespan of the coupling.

Easy installation and maintenance

• Push-in coupling : Allows quick and easy assembly without additional tools.
• Release ring : By pressing the release ring, the hose can be easily removed, making maintenance easier.

Excellent sealing and pressure resistance

The coupling features a special O-ring made of NBR material, ensuring a reliable seal. The locking ring holds the hose firmly in place, even under high pressure. The coupling is suitable for pneumatic pressure from -0.95 to +20 bar, making it usable in various applications.

Application possibilities

This L-piece air coupling is ideal for use in:

• Automotive sector : For connecting pneumatic tools and systems in cars.
• Industrial applications : Suitable for various pneumatic systems in production lines.
• Workshops : For connecting air tools and compressors.

Specifications

• Type : L-type push-in coupling
• Hose diameter : 6 mm
• External thread : 1/8"
• Maximum pneumatic pressure : -0.95 to +20 bar
• Housing material : Nickel-plated brass/PA 66
• Release ring material : PA 66
• Locking ring material : Stainless steel
• Seal material : NBR
• Number of pieces : 1

With this plastic air coupling, you are assured of a reliable and durable connection in your pneumatic systems.
