Efficient connections for pneumatic systems

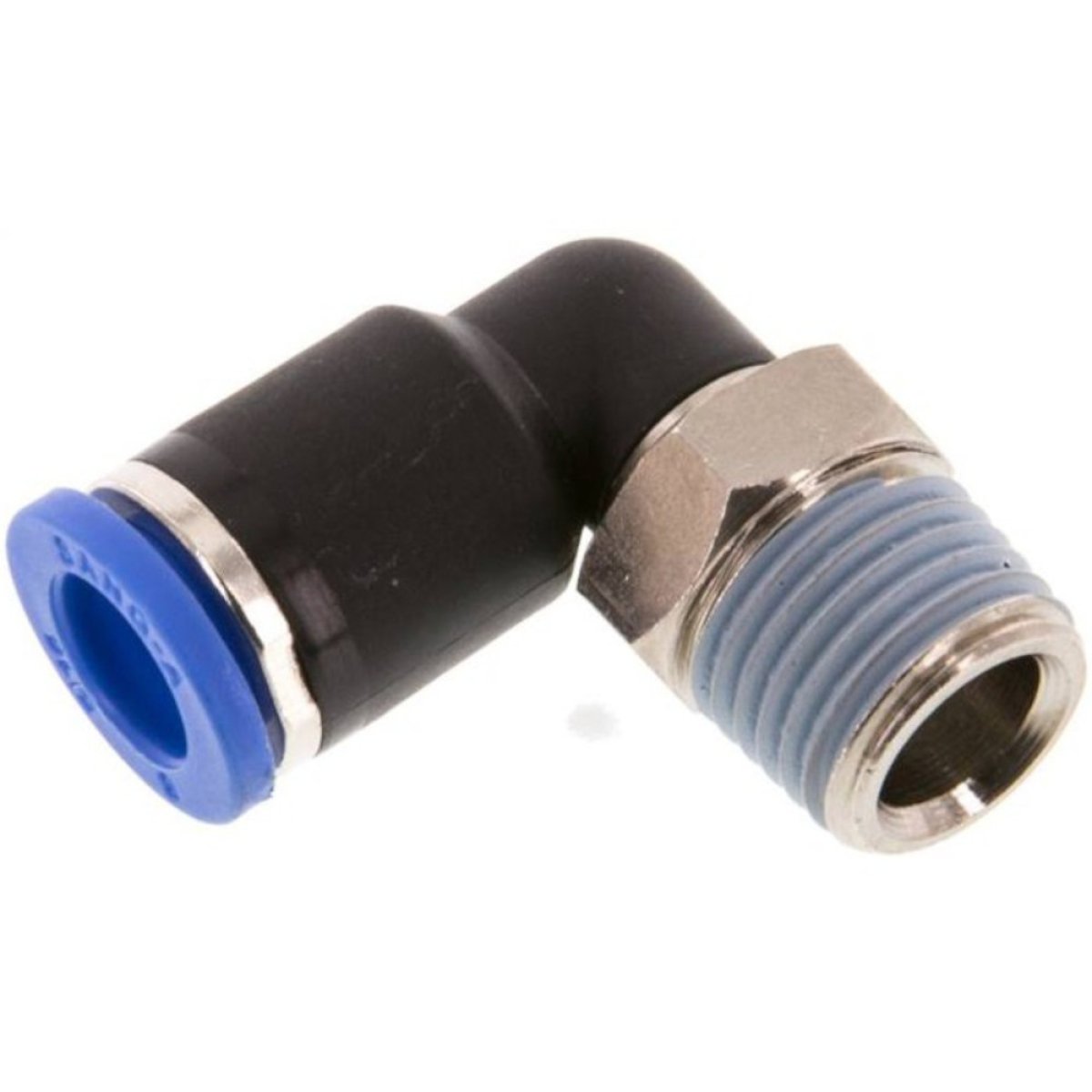

This plastic elbow air coupling with a diameter of 8 mm and a 1/4" external thread is designed to quickly and securely connect pneumatic hoses. Thanks to the push-in mechanism, you save time and effort during installation.

High-quality materials for durability

The coupling is made from a combination of nickel-plated brass and PA 66, ensuring a robust and corrosion-resistant construction. The release ring is also made of PA 66, while the toothed ring is made of stainless steel. The NBR seal guarantees a reliable seal, even under high pressure.

Suitable for various applications

With a maximum working pressure from -0.95 to +20 bar, this coupling is suitable for a wide range of pneumatic applications. Whether you work in the automotive sector, machine building, or other industries, this coupling offers the reliability you need.

Easy installation and maintenance

The push-in design allows hoses to be easily connected and disconnected. By pressing the release ring, the hose can be effortlessly removed, making maintenance and any adjustments to the system easier.

Key specifications

• Type: Elbow push-in coupling
• Hose diameter: 8 mm
• External thread: 1/4"
• Maximum working pressure: -0.95 to +20 bar
• Housing material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Toothed ring material: Stainless steel
• Seal material: NBR

Areas of application

This elbow air coupling is ideal for use in:

• Pneumatic systems in cars
• Industrial automation
• Machine building
• Maintenance and repair of pneumatic installations

With this coupling, you ensure a reliable and efficient connection in your pneumatic systems, contributing to the optimal performance and lifespan of your equipment.
