Reliable connection for pneumatic applications

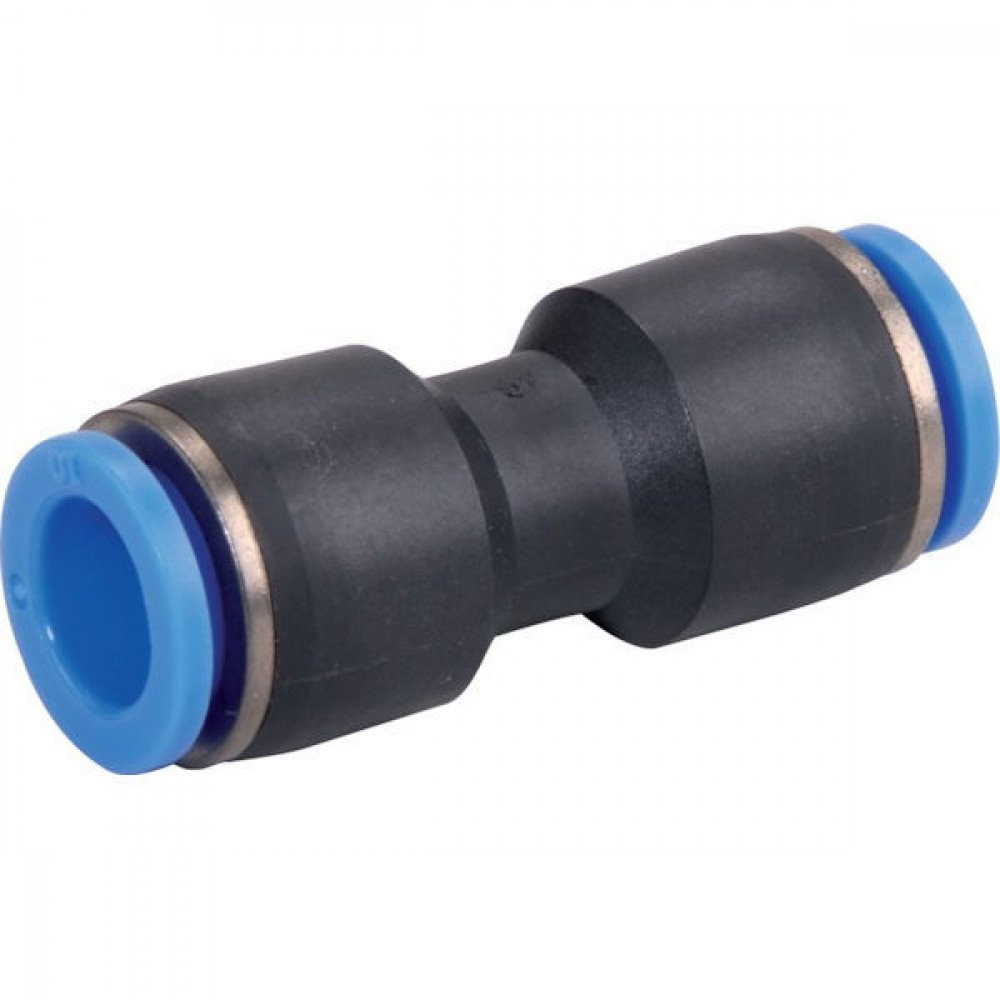

This plastic push-in coupling is designed to securely and leak-free connect two pneumatic hoses with a diameter of 10 mm. Thanks to the straight design, the coupling is easy to install and suitable for various applications in the automotive sector.

High-quality materials for optimal performance

The housing of the coupling is made from nickel-plated brass and PA 66, providing excellent resistance to corrosion and wear. The release ring is made of PA 66, while the toothed ring is made of stainless steel, contributing to the durability and reliability of the coupling.

Efficient sealing and easy disconnection

The coupling is equipped with a special O-ring made of NBR material that ensures a reliable seal, even at high pressure. The toothed ring holds the hose firmly in place, and by pressing the release ring, the hose can be easily disconnected without extra tools.

Suitable for various pressure applications

With a maximum working pressure of -0.95 to +20 bar, this push-in coupling is suitable for both vacuum and high-pressure applications. This makes it a versatile choice for different pneumatic systems.

Key specifications

• Type: Straight
• Connection diameter 1: 10 mm
• Connection diameter 2: 10 mm
• Maximum working pressure: -0.95 to +20 bar
• Housing material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Toothed ring material: Stainless steel
• Seal material: NBR
• Number of pieces per package: 1

Application areas

This push-in coupling is ideal for use in various pneumatic systems, including:

• Automotive industry: For connecting air lines in vehicles.
• Industrial machines: Suitable for various pneumatic applications in production lines.
• Workshops: For quickly and easily connecting air hoses in tool systems.

With this plastic air coupling, you are assured of a reliable and durable connection in your pneumatic systems.
